Mazda 2: Supplementary Restraint System Components

Mazda2 DJ 2014–2023 Owners Manual / Essential Safety Equipment / SRS Air Bags / Supplementary Restraint System Components

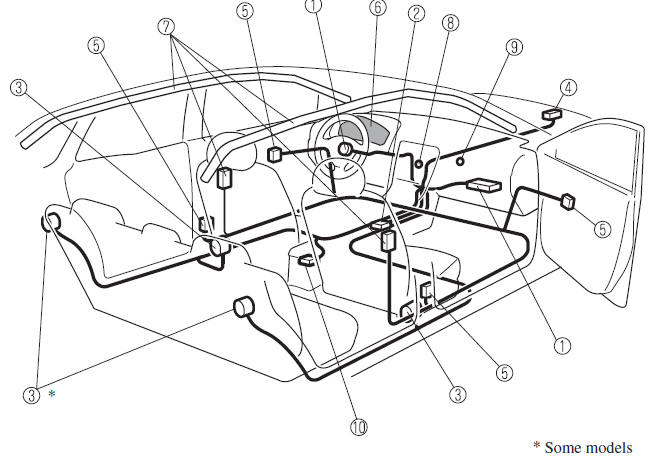

Supplementary Restraint System Components


  1. Driver/Front passenger infl ators and air bags
  2. Crash sensors, and diagnostic module (SAS unit)
  3. Seat belt pretensioners (page 2-18 )
  4. Front air bag sensor
  5. Side crash sensors *
  6. Air bag/seat belt pretensioner system warning light (page 4-37 )
  7. Side and curtain infl ators and air bags *
  8. Front passenger air bag deactivation indicator light * (page 2-46 )
  9. Front passenger air bag deactivation switch * (page 2-46 )
  10. Driver seat slide position sensor * (page 2-52 )
