Mazda 2: If a Warning Light Turns On or Flashes

If any warning light turns on/fl ashes, take appropriate action for each light. There is no problem if the light turns off, however if the light does not turn off or turns on/fl ashes again, consult an Authorised Mazda Repairer.

(Vehicles with type C/type D audio) The warning contents can be verifi ed on the audio.

  1. Select the icon on the home
    screen to display the applications screen.
  2. Select the “Warning Guidance”.

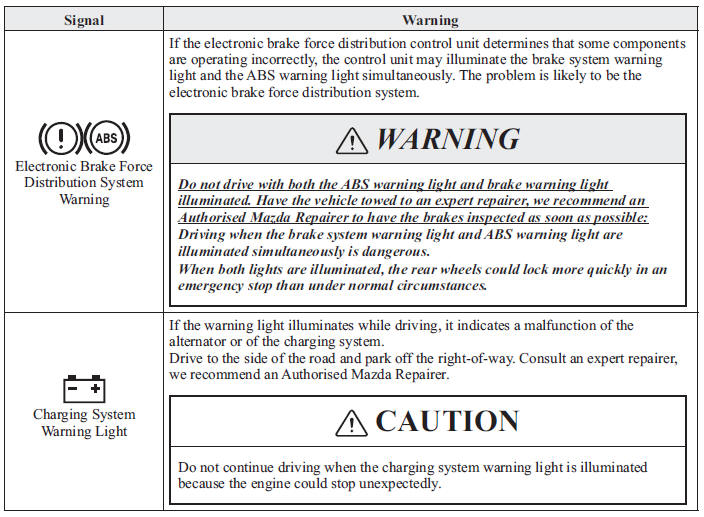

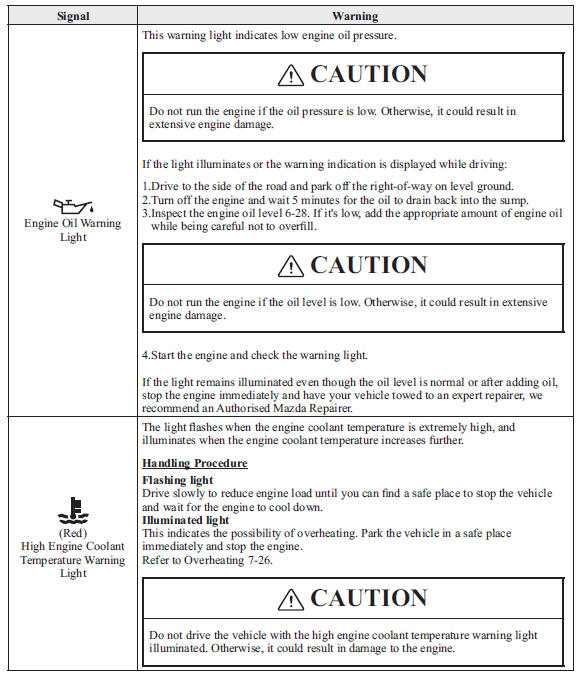

Stop Vehicle in Safe Place Immediately

If any of the following warning lights turns on, the system may have a malfunction. Stop the vehicle in a safe place immediately and contact an Authorised Mazda Repairer.

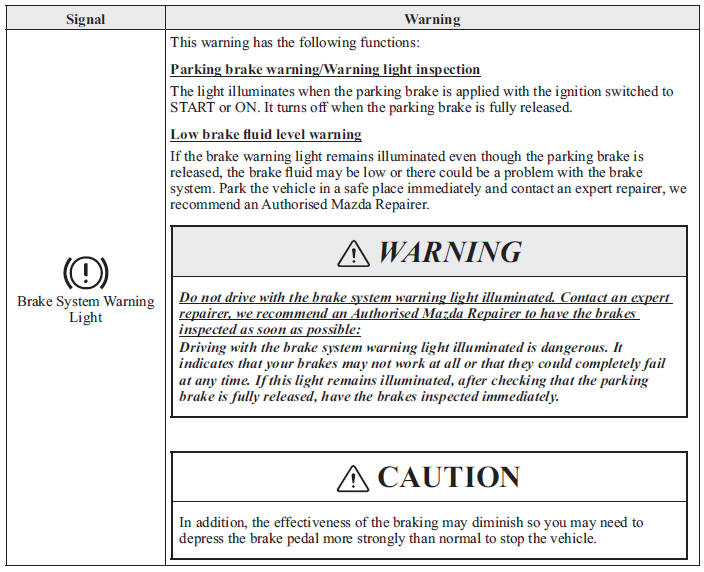

Stop Vehicle in Safe Place Immediately


Stop Vehicle in Safe Place Immediately


Stop Vehicle in Safe Place Immediately


Stop Vehicle in Safe Place Immediately

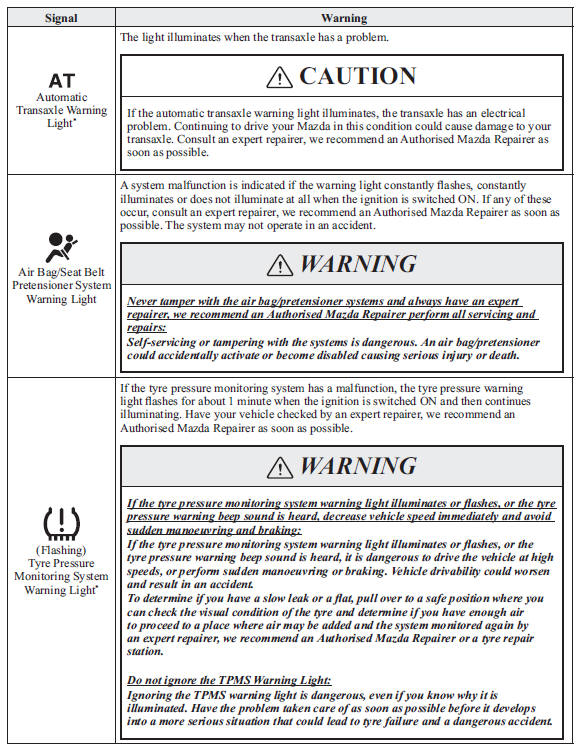

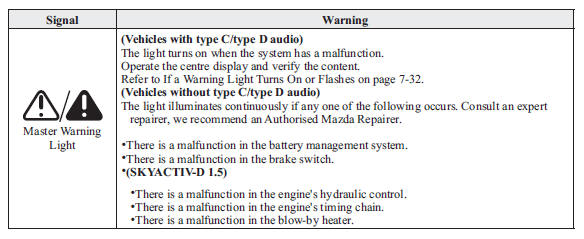

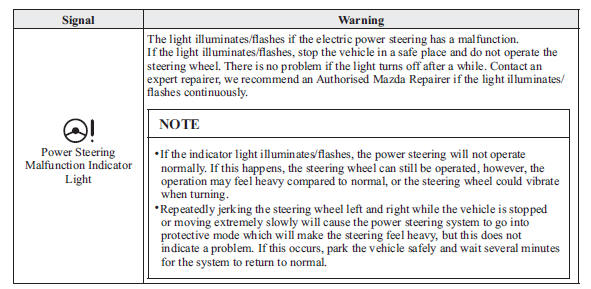

Contact Authorised Mazda Repairer and Have Vehicle Inspected

If any of the following warning lights turns on/fl ashes, the system may have a malfunction.

Contact an expert repairer, we recommend an Authorised Mazda Repairer to have your vehicle inspected.

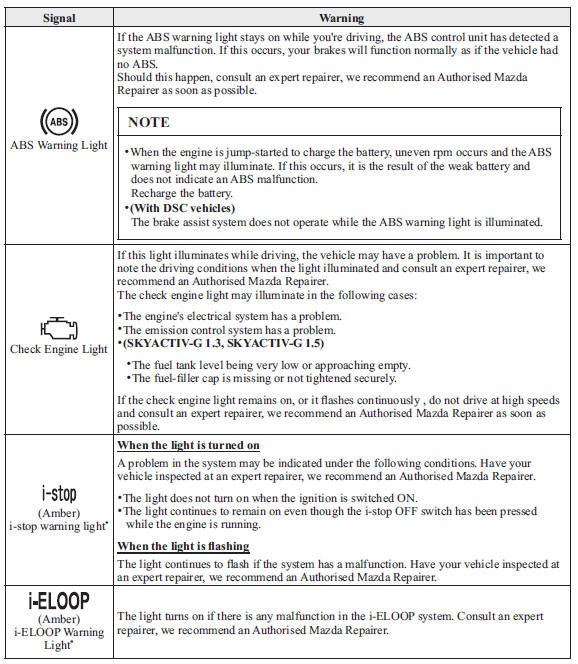

Contact Authorised Mazda Repairer and Have Vehicle Inspected


Contact Authorised Mazda Repairer and Have Vehicle Inspected


Contact Authorised Mazda Repairer and Have Vehicle Inspected


Contact Authorised Mazda Repairer and Have Vehicle Inspected

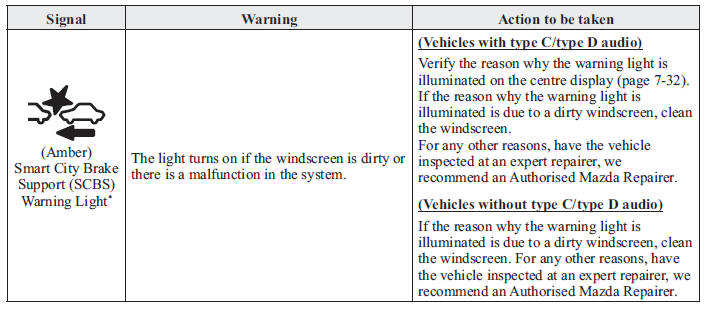

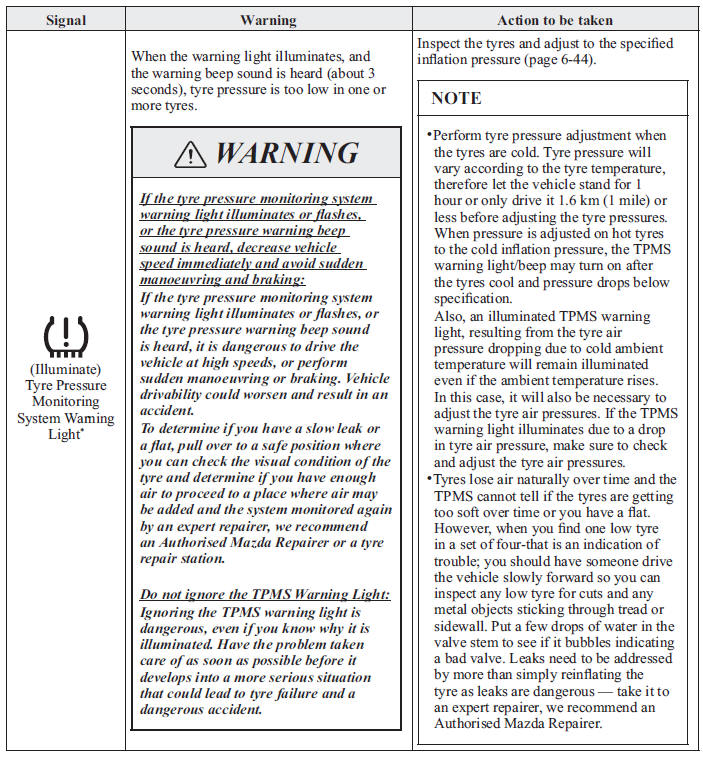

Taking Action

Take the appropriate action and verify that the warning light turns off.

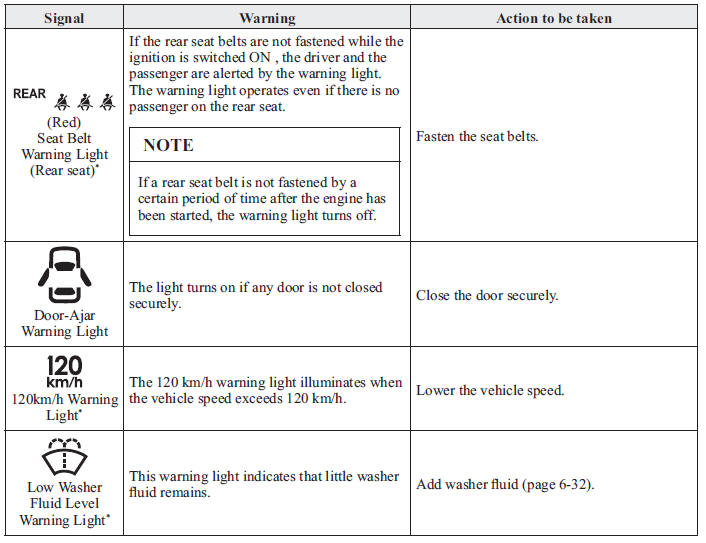

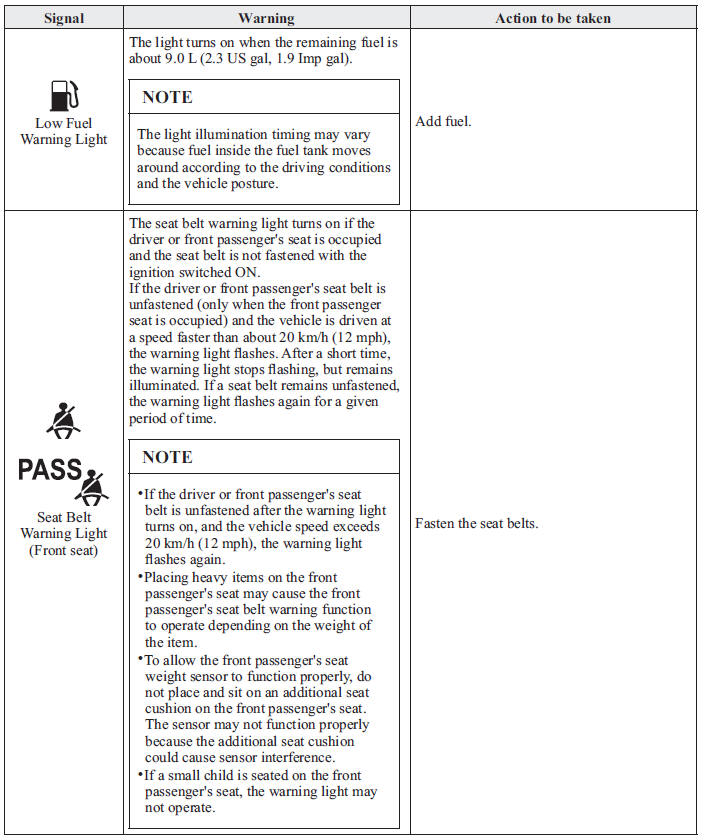

Taking Action


Taking Action


Taking Action


Taking Action

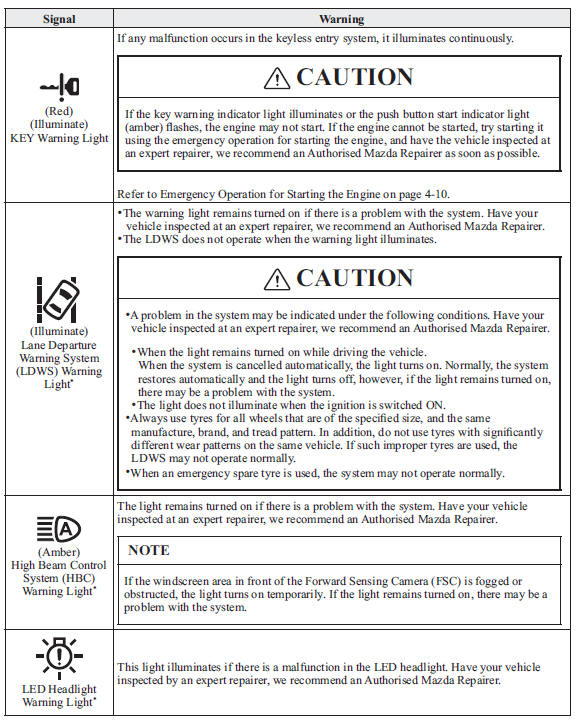

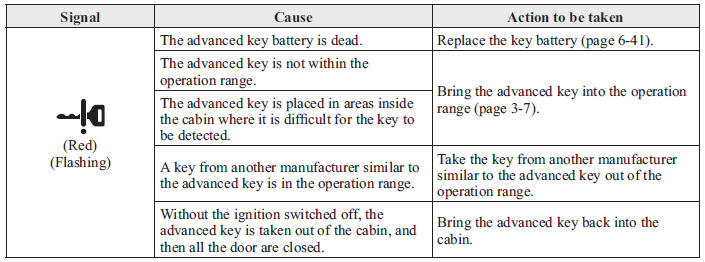

KEY Warning Light

Take the appropriate action and verify that the warning light turns off.

KEY Warning Light
