Mazda 2: When Liftgate/Boot Lid Cannot be Opened

Mazda2 DJ 2014–2023 Owners Manual / If Trouble Arises / When Liftgate/Boot Lid Cannot be Opened

If the vehicle battery is dead or there is a malfunction in the electrical system and the liftgate/boot lid can not be opened, perform the following procedure as an emergency measure to Open it:

(Hatchback)

CAUTION

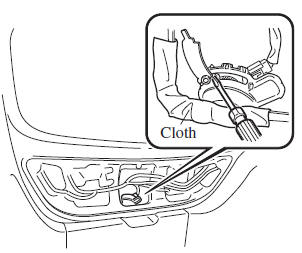

Perform the procedure using a cloth to cover sharp edges which could injure your hands.
Perform the procedure carefully when using a fl athead screwdriver as it could cause damage to the surrounding area or vehicle parts.

When Liftgate/Boot Lid Cannot be Opened

Fold down the rear seatbacks.
Refer to Split/One-piece Folding the Seatback on page 2-7 .

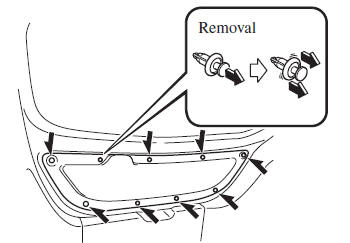

Pull the centre section of the plastic fastener and remove the fasteners, then remove cover on the interior surface of the liftgate.

When Liftgate/Boot Lid Cannot be Opened

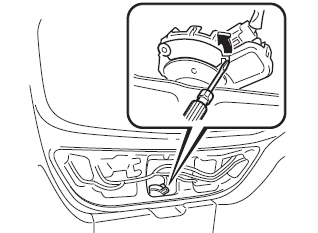

Using a fl athead screwdriver, open the inner cover.

When Liftgate/Boot Lid Cannot be Opened

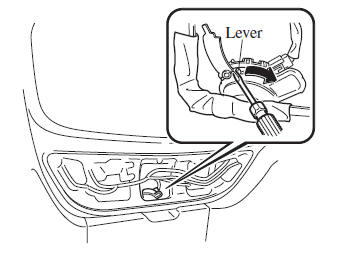

Using a fl athead screwdriver, turn the lever to the right to unlock the liftgate.

When Liftgate/Boot Lid Cannot be Opened

(Saloon)

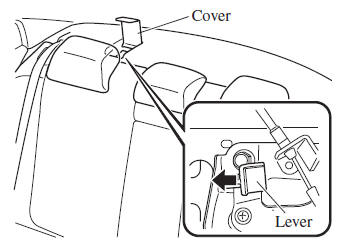

Open the cover.
Move the lever to the left to fold the seatback.

When Liftgate/Boot Lid Cannot be Opened

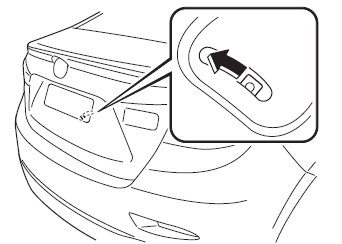

Move the lever to the left to open the boot lid.

When Liftgate/Boot Lid Cannot be Opened

After performing this emergency measure, have the vehicle inspected at an expert repairer, we recommend an Authorised Mazda Repairer as soon as possible.
