Mazda 2: Interior Lights

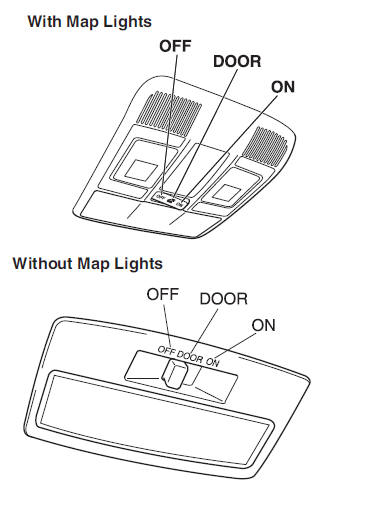

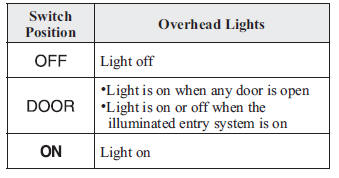

Overhead Lights

Front

Rear *

NOTE
(With map lights)
The rear overhead light also turn on and
off when the front overhead light switch
is operated.

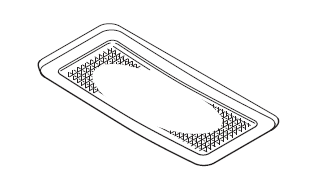

Map Lights *
When the overhead light switch is in the
door or off position, press the lens to
illuminate the map lights, and then press
the lens again to turn them off.

NOTE
The map lights will not turn off even
if the lens is pressed in the following
cases:
- The overhead light switch is in the
ON position.
- The overhead light switch is in the
door position with the door open.
- The illuminated entry system is on.

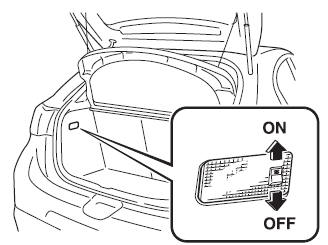

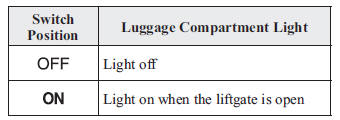

Luggage Compartment Lights (Hatchback)

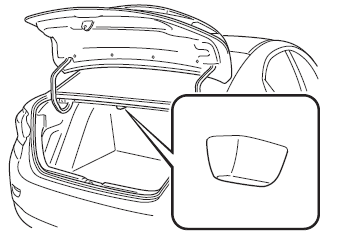

Boot Light (Saloon)
The boot light is on when the lid is open
and off when it's closed.

NOTE
To prevent the battery from being
discharged, do not leave the boot open
for a long period when the engine is not
running.
Illuminated Entry System
The overhead lights turn on when any
of the following operations is done with
the overhead light switch in the DOOR
position and the ignition switched off.
- Turn on for about 30 seconds when the
driver's door is unlocked.
- Turn on for about 15 seconds when a
door is opened with a key left in the
vehicle and then the door is closed.
- Turn on for about 5 seconds when a
door is opened from the outside with a
key being carried and then the door is
closed.
The overhead lights turn on for about 15
seconds when the ignition is switched
off with the overhead light switch in the
DOOR position.
The overhead lights turn off immediately
in the following cases:
- The ignition is switched on and all doors
are closed.
- The driver's door is locked.
NOTE
If any door is left open with the
overhead light switch in the DOOR
position, or the liftgate/boot lid is left
open, the overhead light or luggage
compartment light/boot light turns
off after about 30 minutes to prevent
battery depletion.
To prevent battery depletion, if the
interior lights remain turned on (the
interior light switch is in the ON
position or an interior light is turned
on by pressing the lens of the interior
light), they turn off automatically
under the following conditions:
- No operations are done for about
30 minutes after the ignition is
switched off.
- When the LOCK button on the key
is pressed or the request switch
is pressed to lock the doors on
vehicles with the advanced keyless
function after the ignition is
switched off (interior lights turn off
a few seconds).
In addition, if the following
operations are performed after
turning the interior lights off, they
will turn on again.
- The ignition is switched to a
position other than OFF.
- A door is opened.
- A door is unlocked.
The operation of the illuminated
entry system can be changed.
Refer to Personalisation Features on
page 9-13 .
