Mazda 2: Smart City Brake Support (SCBS)
The Smart City Brake Support (SCBS) system is designed to reduce damage in
the event
of a collision by operating the brake control (SCBS brake) when the system's
laser sensor
detects a vehicle ahead and determines that a collision with a vehicle ahead is
unavoidable.
It may also be possible to avoid a collision if the relative speed between your
vehicle and a
vehicle ahead is less than about 20 km/h (12 mph).
In addition, when the driver depresses the brake pedal while the system is in
the operation
range at about 4 to 30 km/h (2 to 18 mph), the brakes are applied fi rmly and
quickly to
assist. (Brake Assist (SCBS brake assist))

WARNING
Do not rely on the Smart City Brake Support System (SCBS) as a
substitute for safe
driving:
The Smart City Brake Support (SCBS) system cannot compensate for unsafe and
reckless driving, excessive speed, tailgating (following another vehicle too
closely), and
driving on slippery roads such as wet, snowy, and icy roads (reduced tyre
friction and
road contact because of water on the road surface). You can still have an
accident.
Do not rely completely on the Smart City Brake Support (SCBS) system:
The Smart City Brake Support (SCBS) system is only designed to
reduce damage in
the event of a collision. Over reliance on the system leading to the accelerator
pedal
or brake pedal being mistakenly operated could result in an accident
The Smart City Brake Support (SCBS) is a system which operates in
response to a
vehicle ahead. The system may not be able to detect or react to two-wheeled
vehicles
or pedestrians.
The laser sensor for the Smart City Brake Support (SCBS) system is
installed near
the rearview mirror. To assure the correct operation of the Smart City Brake
Support
(SCBS), heed the following cautions.
- Do not apply stickers to the surface of the windscreen near the
laser sensor
(including transparent stickers). Otherwise, the laser sensor may not be
able to
detect vehicles ahead which could result in an accident.
- Do not apply coating agent to the windscreen. Otherwise, the
laser sensor may
not be able to detect vehicles or obstructions in front which could result
in an
accident.
- Do not disassemble the laser sensor.
- If cracks or damage caused by fl ying gravel or debris is
visible near the laser
sensor, stop using the Smart City Brake Support (SCBS) system immediately
and
have your vehicle inspected by an expert repairer, we recommend an
Authorised
Mazda Repairer. If the vehicle continues to be driven with cracks or scratch
marks
left on the windscreen near the laser sensor, the system may operate
unnecessarily
and cause an unexpected accident.
Refer to Stopping The Smart City Brake Support (SCBS) System Operation on
page 4-128 .
- When replacing the windscreen wipers or windscreen, consult an
expert repairer,
we recommend an Authorised Mazda Repairer.
Do not modify the suspension:
If the vehicle height or inclination is changed, the system will not be able to
correctly
detect vehicles ahead. This will result in the Smart City Brake Support (SCBS)
system
not operating normally or mistakenly operating, which could cause a serious
accident.
Turn off the Smart City Brake Support (SCBS) when the vehicle is
running on a chassis
roller or being towed:
Turn off the Smart City Brake Support (SCBS) system to prevent mistaken
operation
when the vehicle is running on a chassis roller or being towed. See the next
page on
how to turn off the Smart City Brake Support (SCBS).
Refer to Stopping The Smart City Brake Support (SCBS) System Operation on page
4-128 .
CAUTION
- When driving off-road in areas where there is grass or forage, it is
recommended that
the Smart City Brake Support (SCBS) system be turned off.
- Always use tyres for all wheels that are of the specifi ed size, and
the same
manufacturer, brand, and tread pattern. In addition, do not use tyres with
signifi cantly
different wear patterns on the same vehicle as the Smart City Brake Support
(SCBS)
system may not operate normally.
- The laser sensor includes a function for detecting a soiled
windscreen and informing
the driver, however, depending on the conditions, it may not detect plastic
shopping
bags, ice or snow on the windscreen. In such cases, the system cannot
accurately
determine a vehicle ahead and may not be able to operate normally. Always
drive
carefully and pay attention to the road ahead.
NOTE
The Smart City Brake Support (SCBS) system will not operate if the driver
is
deliberately performing driving operations (accelerator pedal and steering
wheel).
The Smart City Brake Support (SCBS) system will operate under the
following
conditions.
- The engine is running.
- The Smart City Brake Support (SCBS) warning light (amber) does not
illuminate.
- The vehicle speed is between about 4 to 30 km/h (2 to 18 mph).
- The Smart City Brake Support (SCBS) system is not turned off.
- The DSC is not malfunctioning.

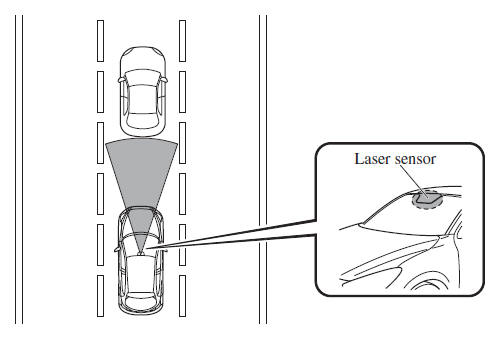

The Smart City Brake Support (SCBS) detects a vehicle ahead by emitting a
nearinfrared
laser beam and receiving the beam refl ected off the refl ector of the vehicle
ahead, and then using it for the measurement. Consequently, the Smart City Brake
Support (SCBS) may not operate under the following conditions:
- Refl ection of the laser is poor due to the shape of the vehicle
ahead.
- The vehicle ahead is signifi cantly dirty.
- Under bad weather condition, such as rain, fog and snow.
- The window washer is being used or the windscreen wipers are not used
when it's
raining.
- The windscreen is dirty.
- The steering wheel is turned completely left or right, or the vehicle
is accelerated
rapidly and comes close to the vehicle ahead.
- Trucks with low loading platforms and vehicles with an extremely low
or high
profi le.
- Vehicles with certain shapes such as a vehicle carrier
Under the following conditions, the Smart City Brake Support (SCBS) system
may not
operate normally.
- Heavy luggage is loaded in the luggage compartment or on the rear
seat.
- If there is the possibility of partial contact with a vehicle ahead.
- When driving on continuously curving roads, and entering and exiting
exits
- Elongated luggage or cargo is loaded onto installed roof rails and
covers the laser
sensor
- Exhaust gas from the vehicle in front, sand, snow, and water vapour
rising from
manholes and grating, and water splashed into the air.
- When towing a malfunctioning vehicle.
- When driving with tyres having signifi cantly different wear.
In the following cases, the laser sensor may inadvertently determine that
there is a
vehicle ahead and the Smart City Brake Support (SCBS) system may operate.
- Objects on the road at the entrance to a curve.
- Vehicles passing in the opposite lane while making a curve.
- Metal objects, bumps, or protruding objects on the road.
- When passing through a toll gate equipped with a bar.
- When passing under a vinyl curtain or fl ag.
- Plastic objects such as pylons.
- Two-wheeled vehicles, pedestrians, animals or standing trees.
(Manual transaxle)
If the vehicle is stopped by the SCBS operation and the clutch pedal is
not depressed,
the engine stops.
- When the system operates, the user is notifi ed by the fl ashing
Smart City Brake
Support (SCBS) indicator light (red) and the active driving display * .
- The Smart City Brake Support (SCBS) warning light (amber) turns on
when the
system has a malfunction.
Refer to Warning Lights on page 4-38 .
Smart City Brake Support (SCBS)
Indicator Light (Red)
If the Smart City Brake Support (SCBS) is
operating, the indicator light (red) fl ashes.

Automatic Brake Operation
Display (Vehicles With Active
Driving Display)
“SCBS Automatic Brake” is displayed in
the active driving display while the SCBS
brakes or the brake assist (SCBS brake
assist) is operating.
NOTE
- The collision warning beep sounds
intermittently while the SCBS brake
or brake assist (SCBS brake assist) is
operating.
- If the vehicle is stopped by the SCBS
operation and the brake pedal is not
depressed, the warning beep sounds
one time after about 2 seconds and
the SCBS brake is automatically
released.
Stopping The Smart City Brake
Support (SCBS) System Operation
The Smart City Brake Support (SCBS)
system can be temporarily deactivated.
When the Smart City Brake Support
(SCBS) system is turned off, the Smart
City Brake Support (SCBS) OFF indicator
light turns on.
When the engine is restarted, the system
becomes operational.
Without SCBS OFF switch
Refer to Personalisation Features on page
9-13 .

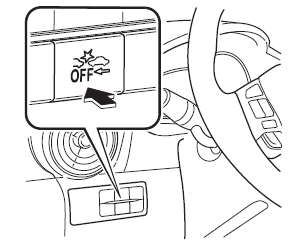

With SCBS OFF switch
Press the SCBS OFF switch to turn
off the system. The Smart City Brake
Support (SCBS) OFF indicator light in the
instrument cluster will illuminate.

Press the switch again to turn the system
back on. The Smart City Brake Support
(SCBS) OFF indicator light will turn off.
