Mazda 2: Centre-Rear Position Seat Belt

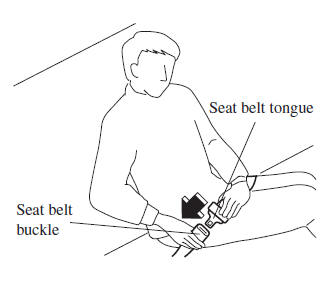

Fastening the Seat Belt
Pull the seat belt tongue to the desired
length.
Insert it into the seat belt buckle until
you hear a click sound.
Adjust the belt length.
To lengthen the belt, hold the seat belt
tongue at a right angle to the webbing
and pull. To shorten, pull the loose end
of the webbing.
Lengthen
Shorten

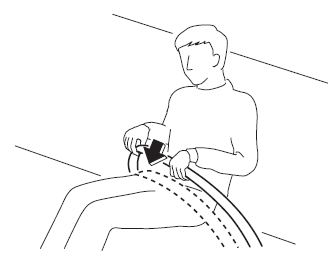

Make sure the lap belt is snugly fi tted
against your body.
WARNING
Wearing the Lap Belt:
A lap belt worn too high is dangerous.
In a collision, this would concentrate
the impact force directly on the
abdominal area, causing serious injury.
Wear the lap belt snugly and as low as
possible.

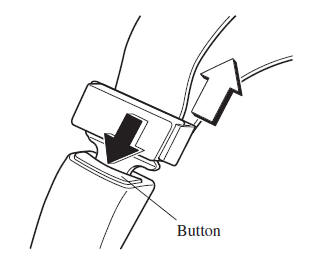

Unfastening the Seat Belt
Depress the button on the seat belt buckle.
