Mazda 2: DTC B00A0:07
System Malfunction Location
- Seat weight sensor collision detection
Detection Condition
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- The pressure from the seat weight sensor is not within specification
Possible Causes
- Seat weight sensor calibration setting not implemented
- Seat weight sensor calibration setting invalid
- Seat weight sensor deformation or malfunction
- Foreign object under seat causing load on or deformation of the seat belt rail
- Front passenger-side seat under-bracket or frame deformed
- Weight acting on front passenger-side seat during calibration
- Front passenger-side seat part improperly installed at time of calibration
- Floor deformed where front passenger-side seat attached
- Seat weight sensor control module malfunction
- SAS control module malfunction

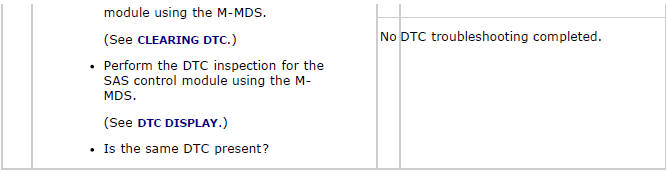

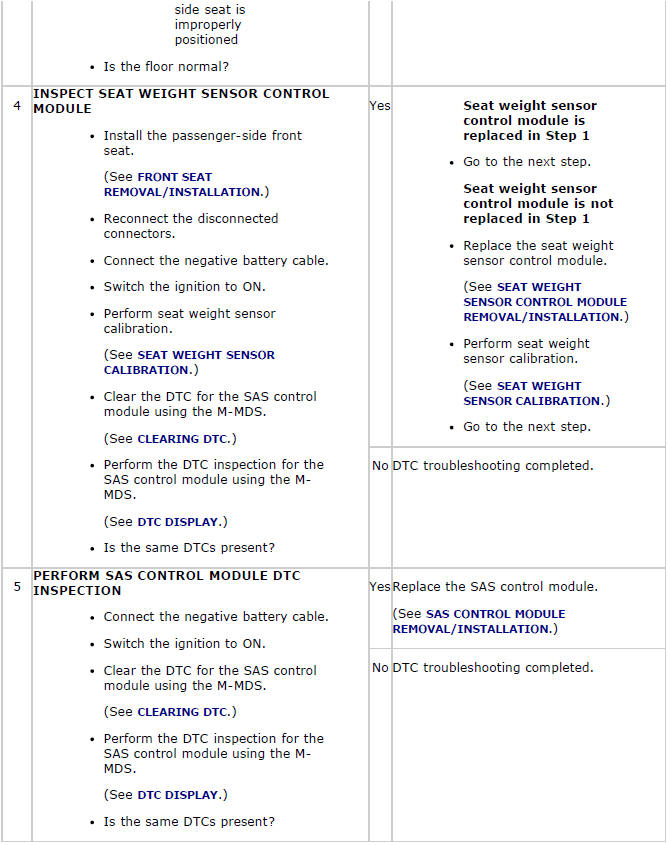

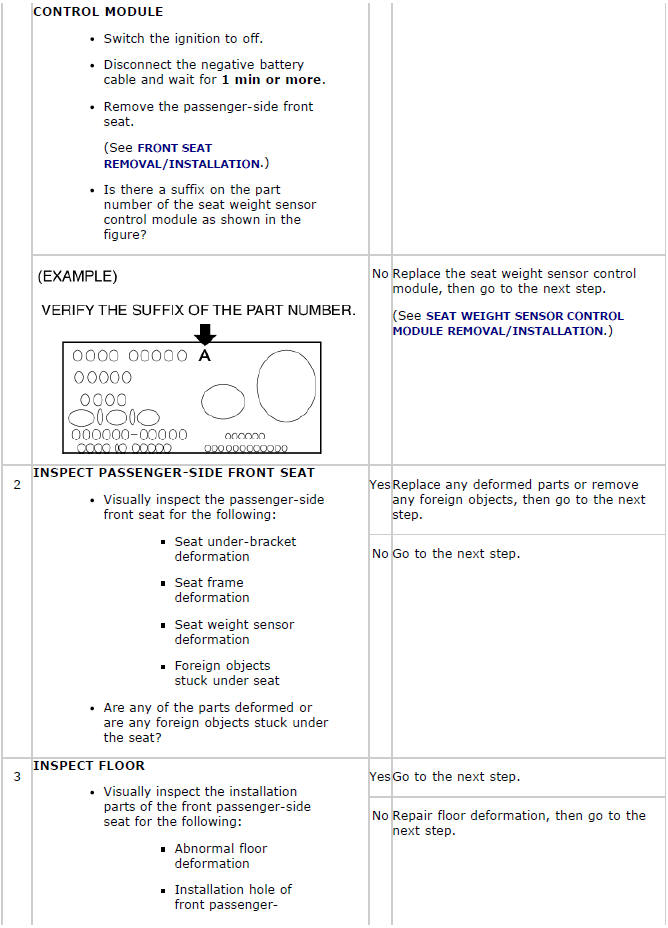

Diagnostic Procedure
DTC B00A0:09
System Malfunction Location
- Seat weight sensor control module internal malfunction
Detection Condition
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- Seat weight sensor control module internal malfunction
Possible Causes
- Seat weight sensor control module malfunction
- SAS control module malfunction

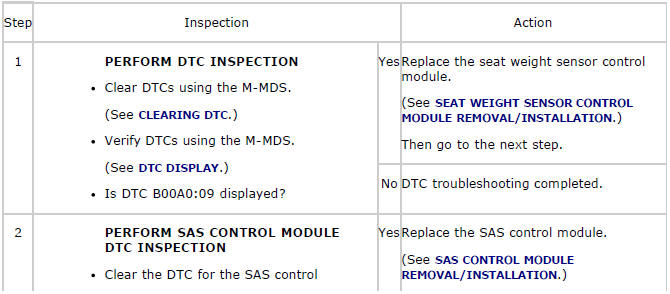

Diagnostic Procedure
