Mazda 2: DTC Inspection [Audio]
NOTE:
- All DTCs displayed in the on-board diagnostic test mode should be
entered in the Audio
Repair Order Form.
1. Turn the ignition switch to the ACC or ON position.
2. Turn the center panel unit power to off.

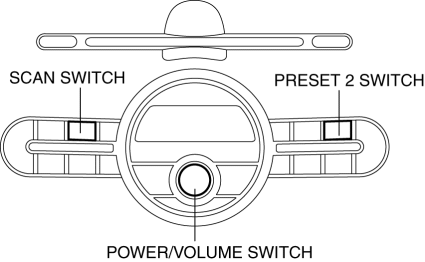

3. While pressing the POWER/VOLUME switch, simultaneously press the SCAN switch
and the
Preset switch 2 switch for 3 s or more.
![Mazda 2. DTC INSPECTION [AUDIO]](images/books/1059/mazda_2_dtc_inspection_audio__2899.gif)
NOTE:
- If several DTCs are in the memory, they can be displayed using the UP
SEEK switch or DOWN SEEK switch.
4. To stop the on-board diagnostic test mode, turn the ignition switch to the
LOCK position.
SUPPLIER IDENTIFICATION PROCEDURE [Audio]
NOTE:
- When asking the supplier (service center) for repair or replacement,
identify the
supplier and fill in the Audio Repair Order Form using the following
procedures.
Identification Using Label or Inscribed Lettering
1. Disconnect the negative battery cable.
2. Remove the following parts:
- Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION).
- Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION).
- Console panel (See REAR CONSOLE REMOVAL/INSTALLATION).
- Rear console (See REAR CONSOLE REMOVAL/INSTALLATION).
- Side wall (See SIDE WALL REMOVAL/INSTALLATION).
- Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM
REMOVAL/INSTALLATION).
- Front console component (See FRONT CONSOLE COMPONENT
REMOVAL/INSTALLATION).
- Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION).
- Lower panel (See LOWER PANEL REMOVAL/INSTALLATION).
- Center panel unit (See CENTER PANEL UNIT REMOVAL/INSTALLATION).

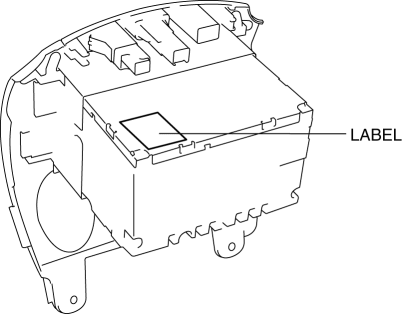

3. Verify the supplier indicated on the label attached on each unit.
![Mazda 2. SUPPLIER IDENTIFICATION PROCEDURE [AUDIO]](images/books/1059/mazda_2_dtc_inspection_audio__2900.gif)
Verify Using the Diagnostic Assist Function
1. Switch the ignition to ACC or ON.
2. Turn the audio unit power to on.

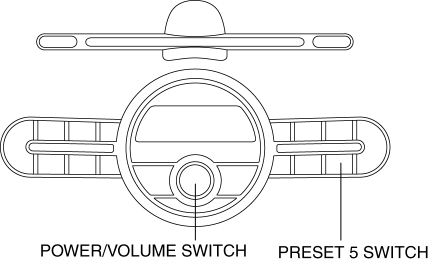

3. While pressing the POWER/VOLUME switch, simultaneously press the Preset 5
switch for 3
s or more.
![Mazda 2. SUPPLIER IDENTIFICATION PROCEDURE [AUDIO]](images/books/1059/mazda_2_dtc_inspection_audio__2901.gif)

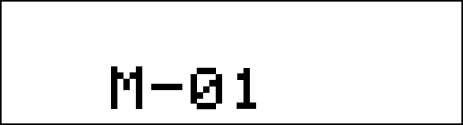

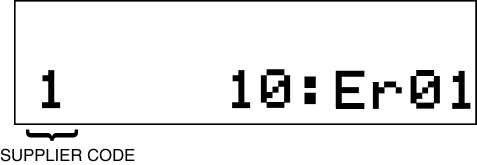

4. Identify the supplier code by referring to the LCD.
![Mazda 2. SUPPLIER IDENTIFICATION PROCEDURE [AUDIO]](images/books/1059/mazda_2_dtc_inspection_audio__2902.gif)
![Mazda 2. SUPPLIER IDENTIFICATION PROCEDURE [AUDIO]](images/books/1059/mazda_2_dtc_inspection_audio__2903.gif)
![Mazda 2. SUPPLIER IDENTIFICATION PROCEDURE [AUDIO]](images/books/1059/mazda_2_dtc_inspection_audio__2904.jpg)
![Mazda 2. SUPPLIER IDENTIFICATION PROCEDURE [AUDIO]](images/books/1059/mazda_2_dtc_inspection_audio__2905.gif)
NOTE:
- The supplier code can also be identified from the DTC displays screen.
5. To stop the diagnostic assist function, ignition is switched to off or
turning off the audio
unit power.
CLEARING DTC [Audio]
CAUTION:
- Before clearing the memory, be sure to enter all of the DTCs displayed
in the DTC
inspection in the Audio Repair Order Form.
1. Launch the DTC inspection. (See DTC INSPECTION [AUDIO] ).

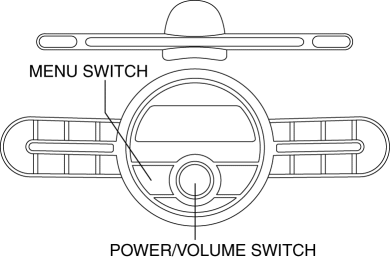

2. While pressing the POWER/VOLUME switch, simultaneously press the MENU switch
for 3 s
or more.
![Mazda 2. CLEARING DTC [AUDIO]](images/books/1059/mazda_2_dtc_inspection_audio__2906.gif)
3. To stop the DTC inspection, ignition is switched to off.
