Mazda 2: DTC U3003:16/U3003:17

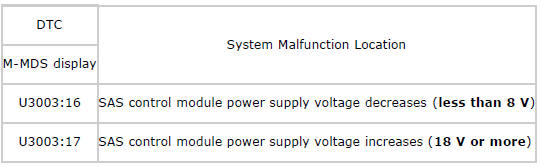

System Malfunction Location
Detection Condition
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- SAS control module power supply voltage is other than 8-17.9 V, and other DTC is detected
Possible Causes
- Battery malfunction
- SAS 10 A fuse malfunction
- Open circuit or short to body ground in wiring harness between ignition switch and SAS control module
- Open circuit in the wiring harness between the SAS control module and body ground
- SAS control module malfunction

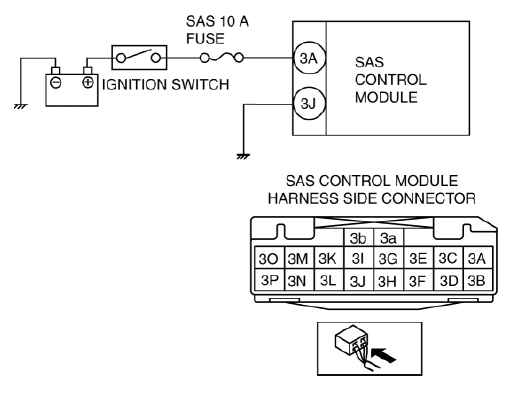

System Wiring Diagram

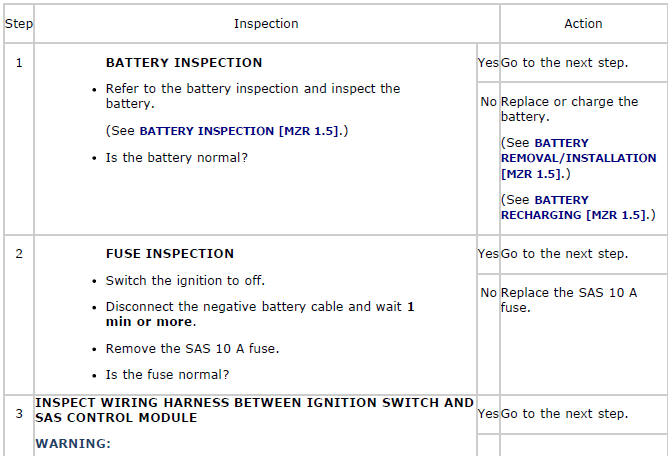

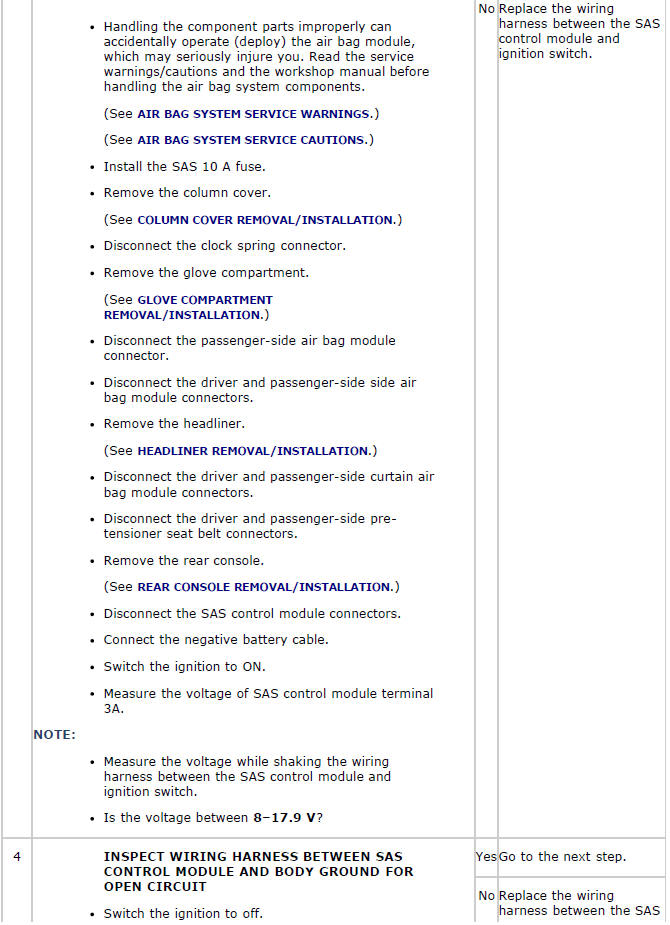

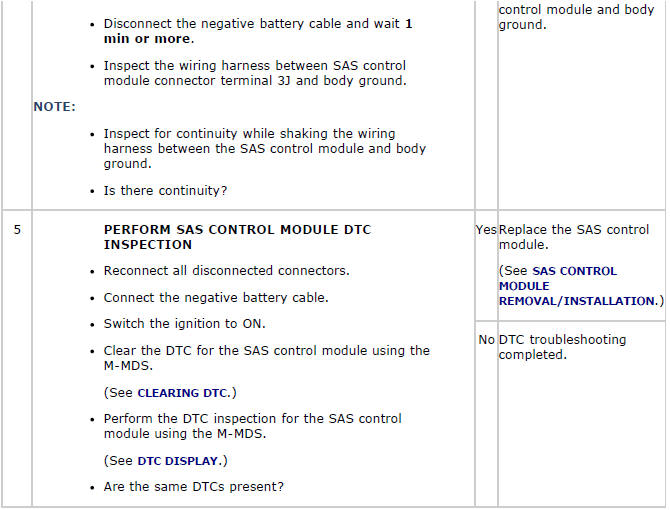

Diagnostic Procedure
