Mazda 2. SYMPTOM TROUBLESHOOTING

AIR BAG SYSTEM WIRING DIAGRAM (SYMPTOM TROUBLESHOOTING)

Mazda 2. AIR BAG SYSTEM WIRING DIAGRAM (SYMPTOM TROUBLESHOOTING)

Mazda 2. SYMPTOM TROUBLESHOOTING

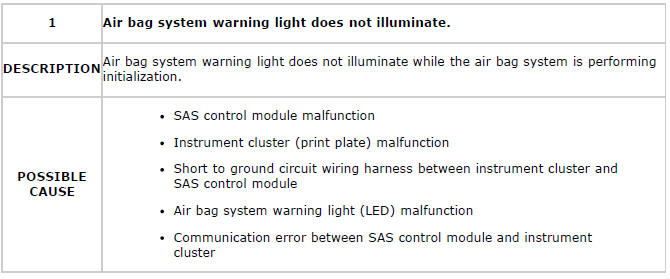

NO.1 AIR BAG SYSTEM WARNING LIGHT DOES NOT ILLUMINATE

Mazda 2. SYMPTOM TROUBLESHOOTING

Diagnostic Procedure

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

NO.2 AIR BAG SYSTEM WARNING LIGHT IS ILLUMINATED ALL THE TIME

Mazda 2. SYMPTOM TROUBLESHOOTING

System Wiring Diagram

Mazda 2. SYMPTOM TROUBLESHOOTING

Diagnostic Procedure

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING
