Mazda 2: Side Air Bag Module

SIDE AIR BAG MODULE REMOVAL/INSTALLATION

WARNING:

1. Switch the ignition to off.

2. Disconnect the negative battery cable and wait for 1 min or more.

3. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION).

4. Remove the front seat back trim and pad. (See FRONT SEAT BACK COMPONENT REMOVAL/INSTALLATION).

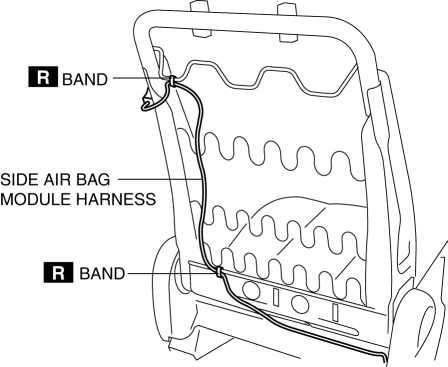

5. Remove the band securing the side air bag module wiring harness. (See Band Installation Note)

Mazda 2. SIDE AIR BAG MODULE REMOVAL/INSTALLATION

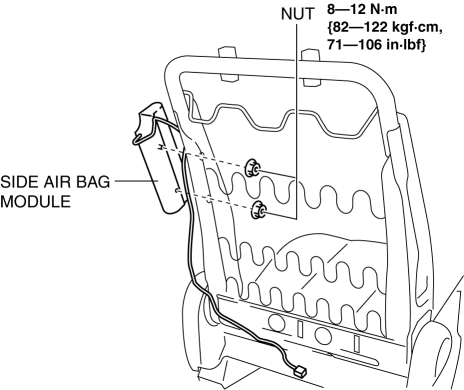

6. Remove the nuts.

Mazda 2. SIDE AIR BAG MODULE REMOVAL/INSTALLATION

7. Remove the side air bag module.

8. Install in the reverse order of removal.

9. Switch the ignition to ON.

10. Verify that the air bag system warning light illuminates for approx. 6 s and goes out.

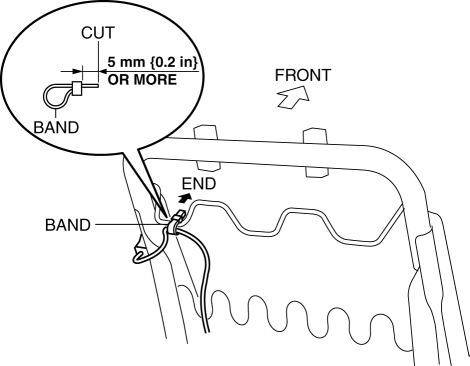

Band Installation Note

1. Install the band with the end pointed to the front.

Mazda 2. SIDE AIR BAG MODULE REMOVAL/INSTALLATION

2. Cut off the end of the band at the position shown in the figure.
