Mazda 2: HVAC System

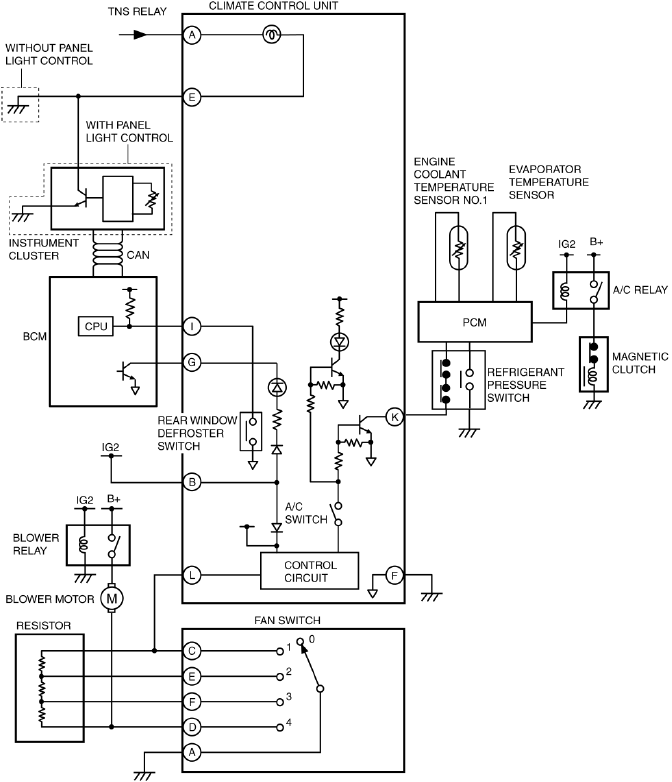

HVAC SYSTEM WIRING DIAGRAM

Mazda 2. HVAC SYSTEM WIRING DIAGRAM

FOREWORD

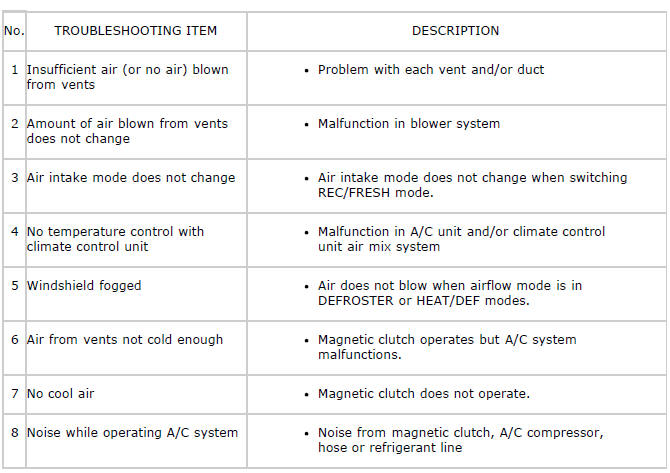

TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

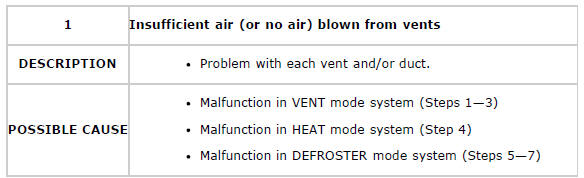

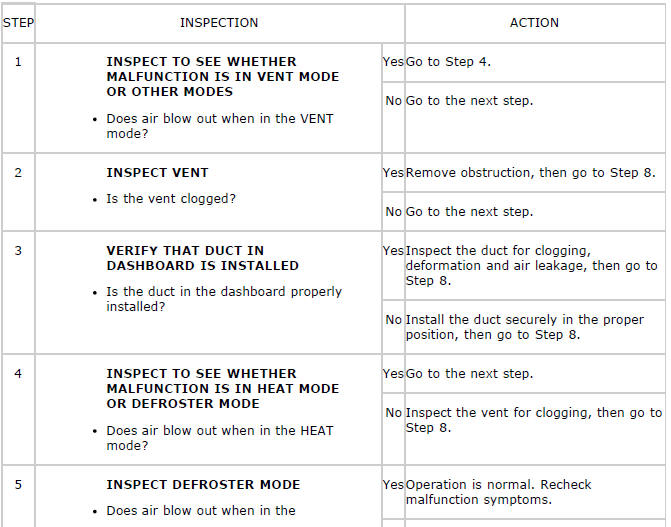

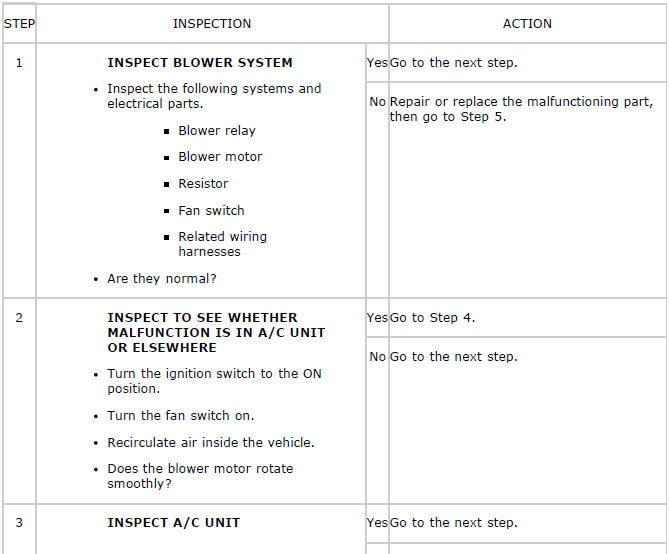

NO.1 INSUFFICIENT AIR (OR NO AIR) BLOWN FROM VENTS [MANUAL AIR CONDITIONER]

Mazda 2. TROUBLESHOOTING INDEX

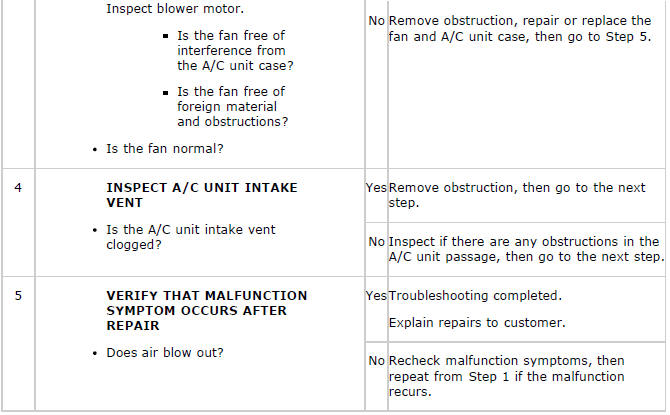

Diagnostic procedure

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

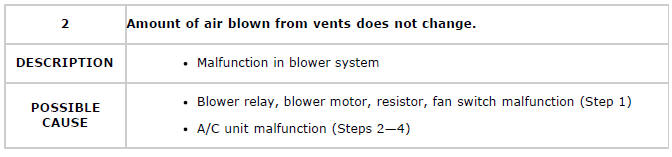

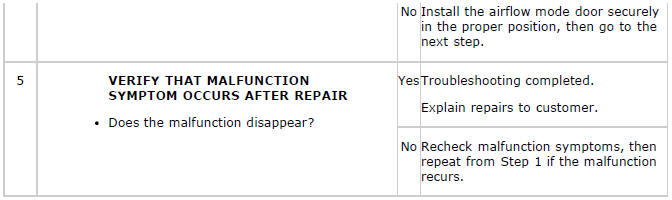

NO.2 AMOUNT OF AIR BLOWN FROM VENTS DOES NOT CHANGE

Mazda 2. TROUBLESHOOTING INDEX

Diagnostic procedure

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

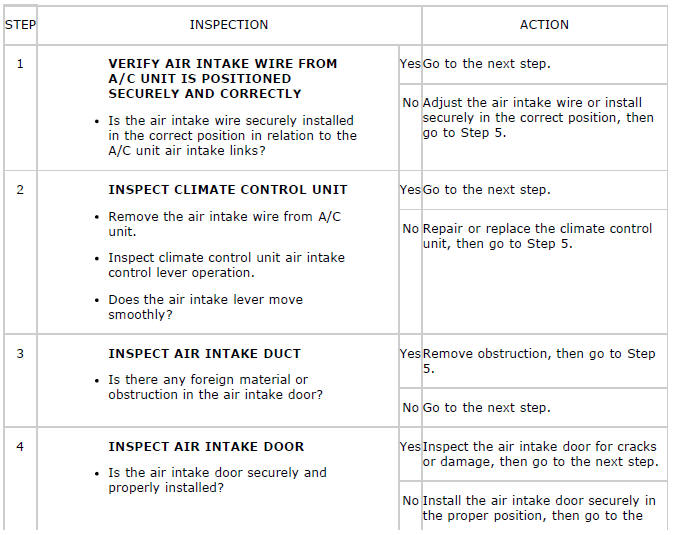

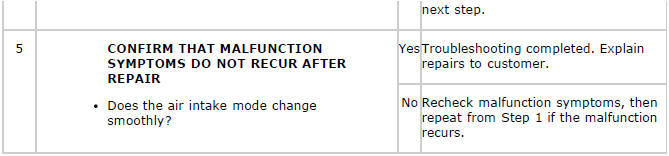

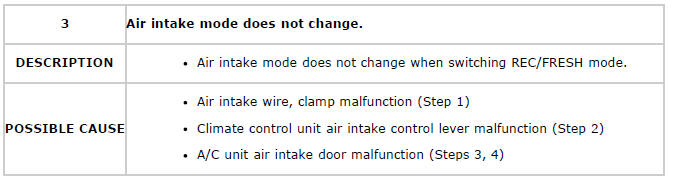

NO.3 AIR INTAKE MODE DOES NOT CHANGE

Mazda 2. TROUBLESHOOTING INDEX

Diagnostic procedure

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

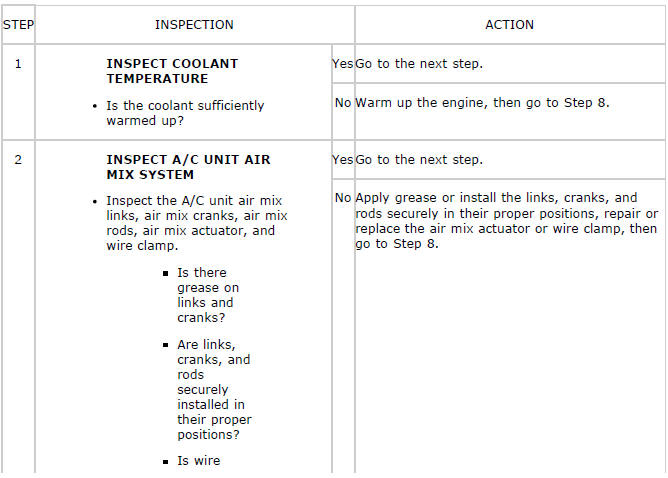

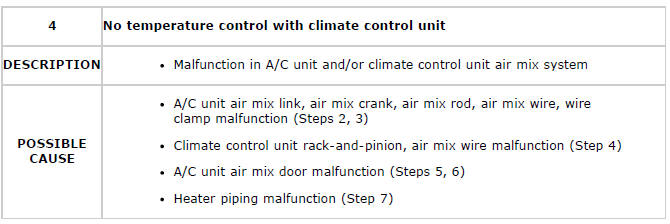

NO.4 NO TEMPERATURE CONTROL WITH CLIMATE CONTROL UNIT

Mazda 2. TROUBLESHOOTING INDEX

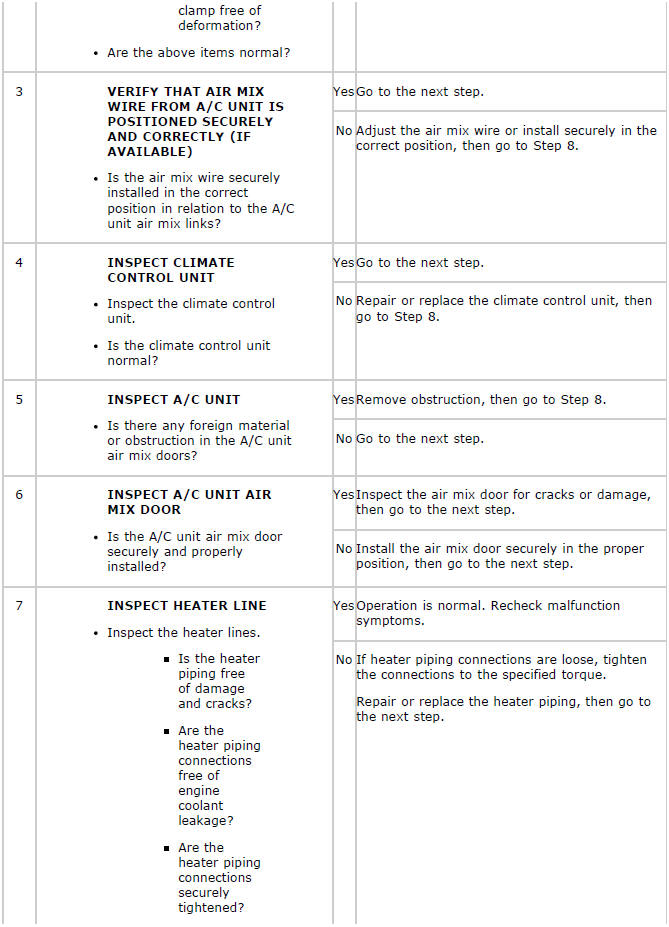

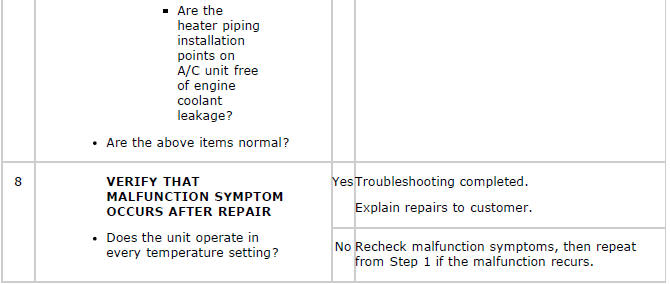

Diagnostic procedure

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

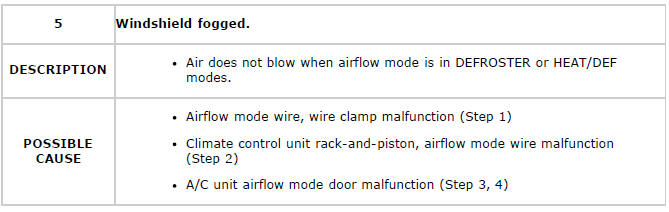

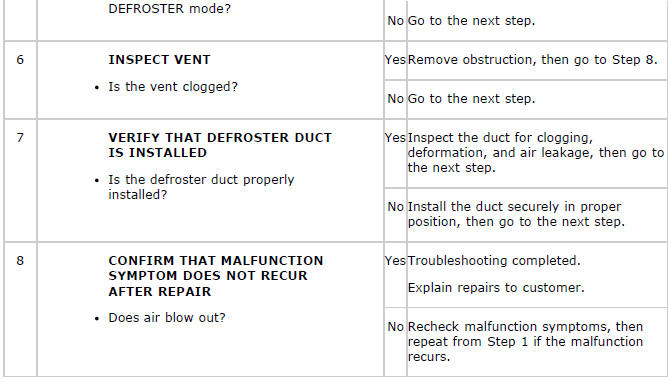

NO.5 WINDSHIELD FOGGED

Mazda 2. TROUBLESHOOTING INDEX

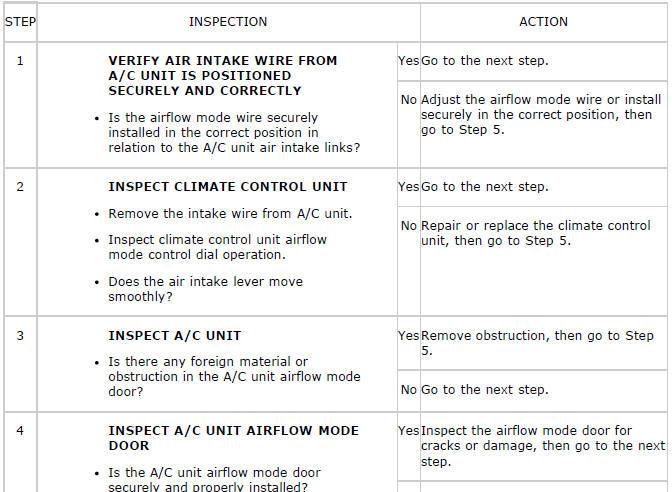

Diagnostic procedure

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

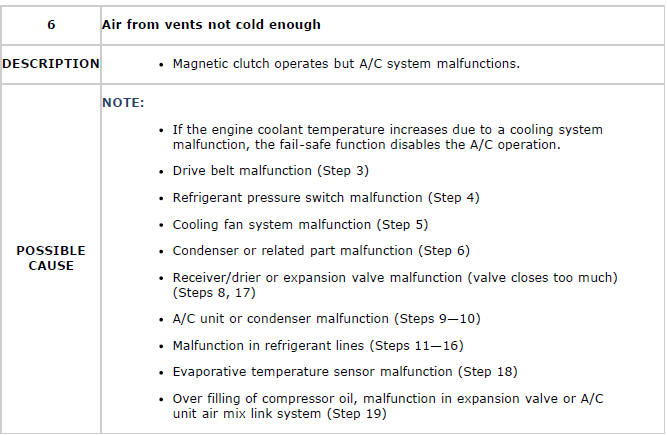

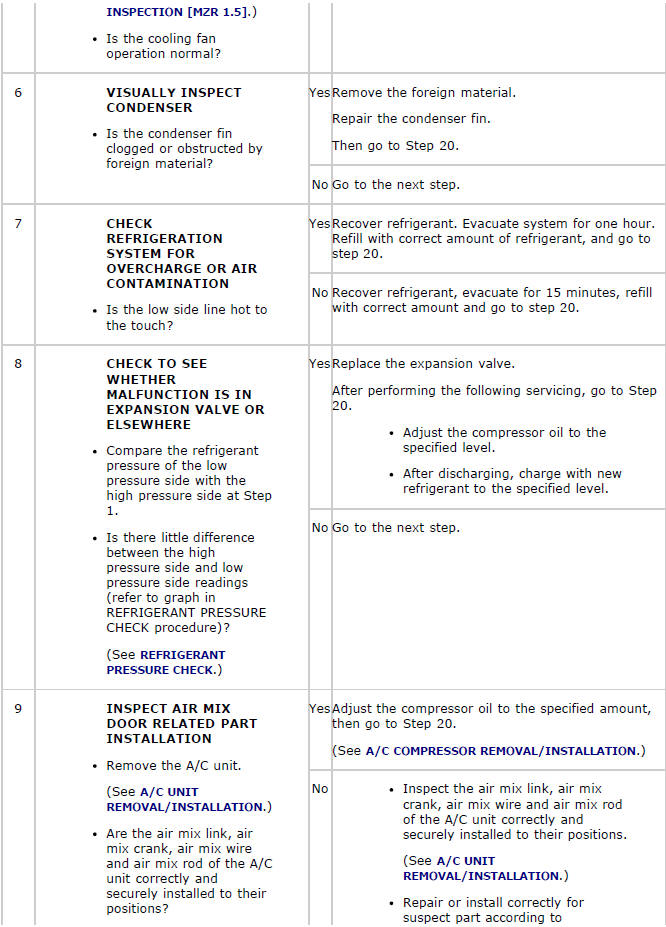

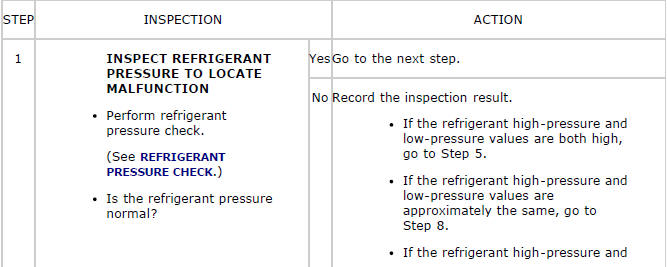

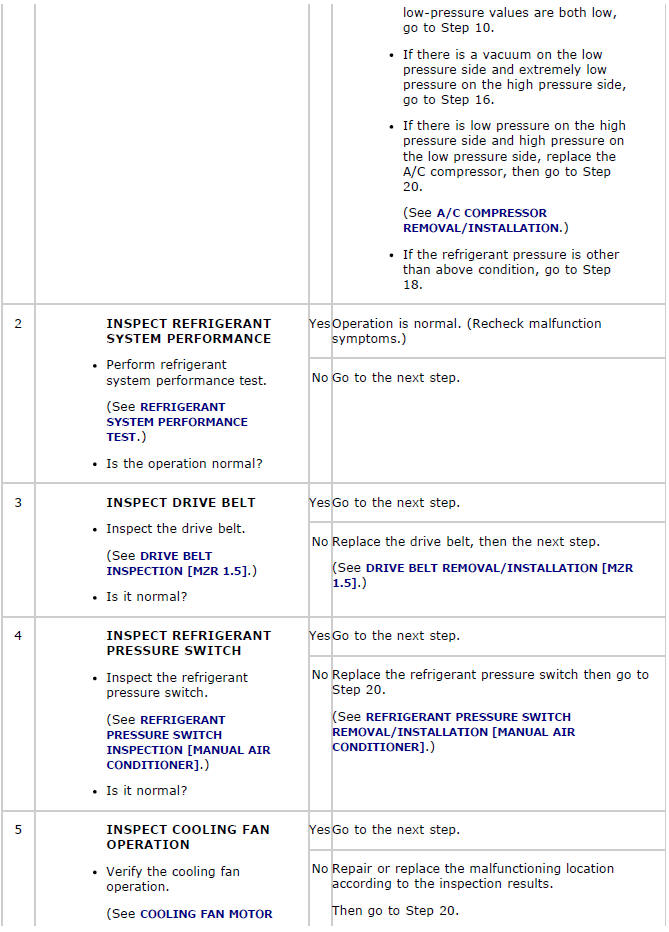

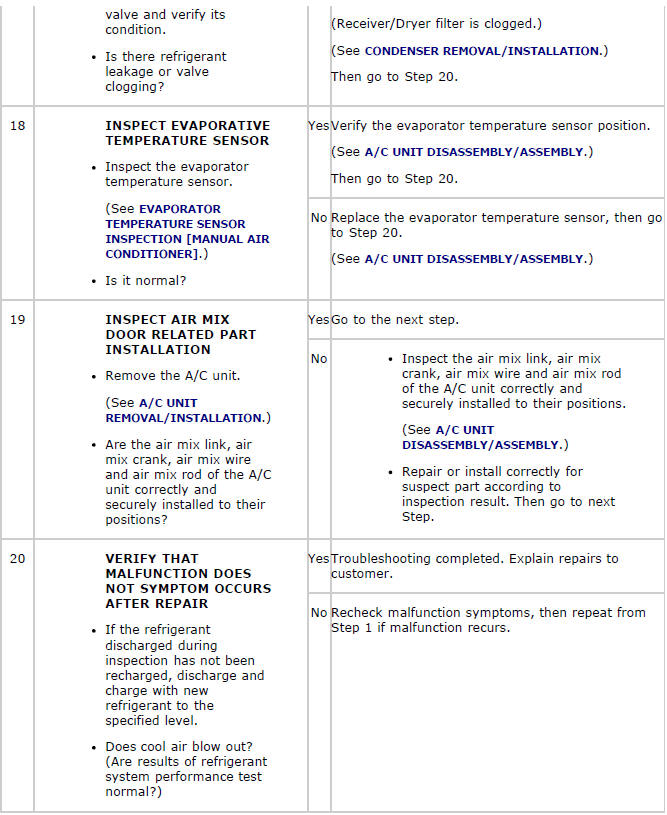

NO.6 AIR FROM VENTS NOT COLD ENOUGH

Mazda 2. TROUBLESHOOTING INDEX

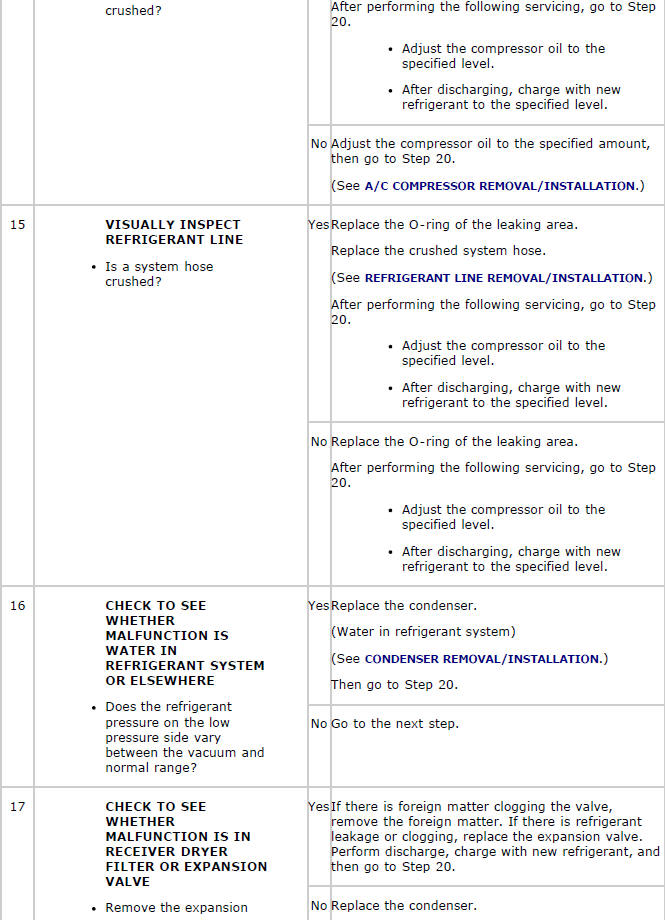

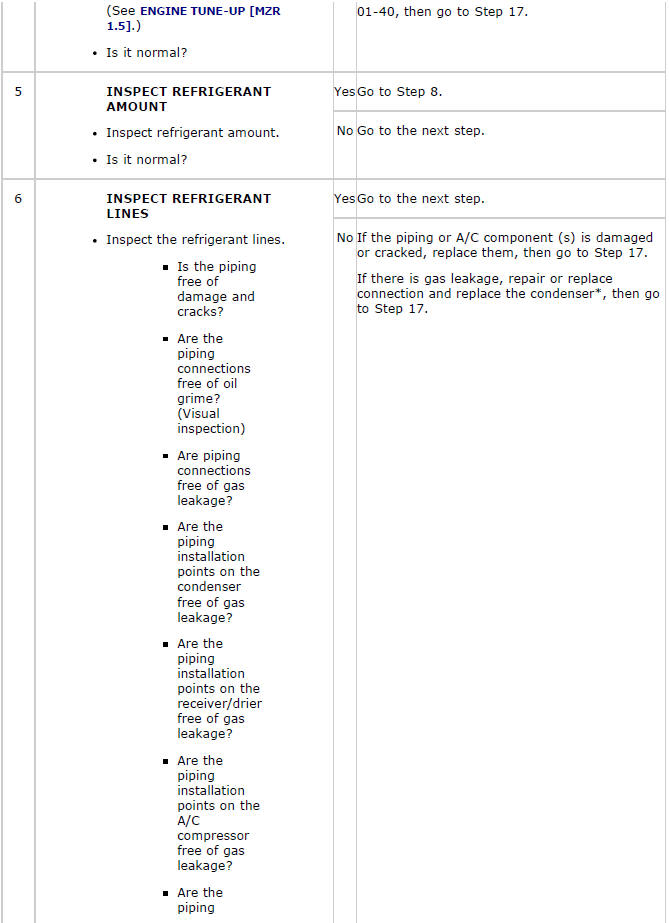

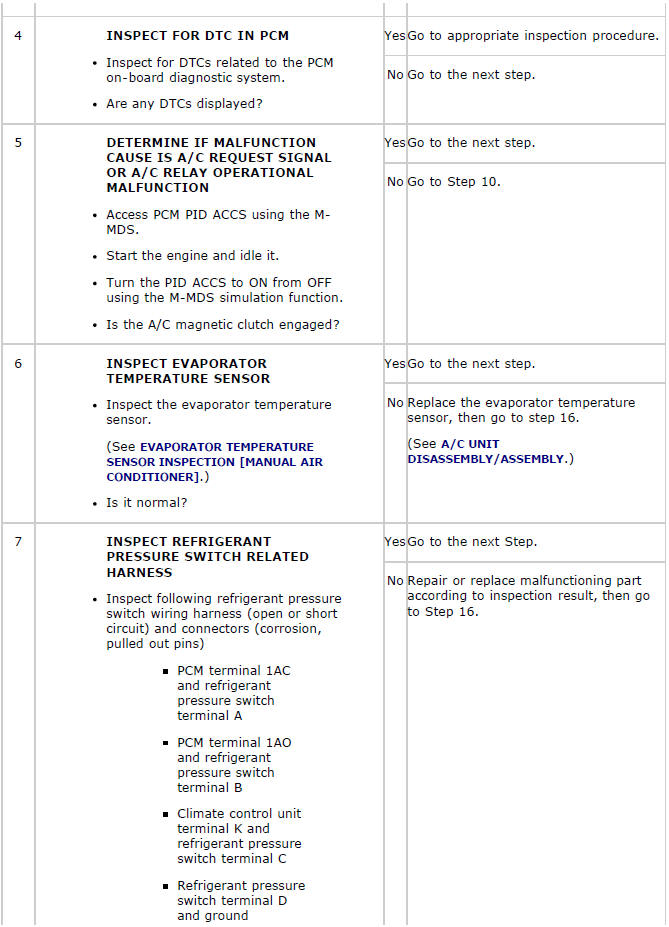

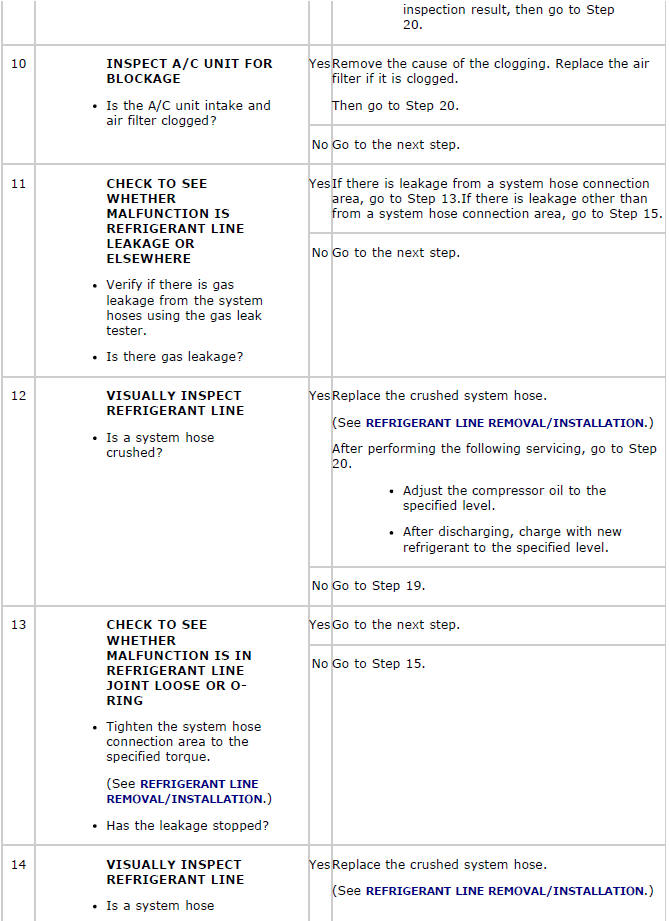

Diagnostic procedure

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

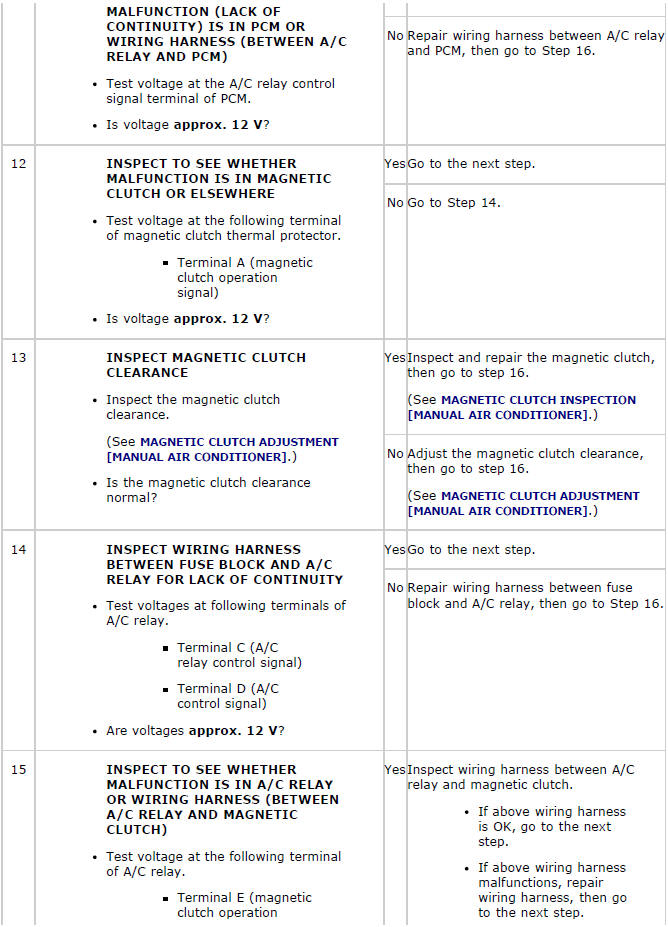

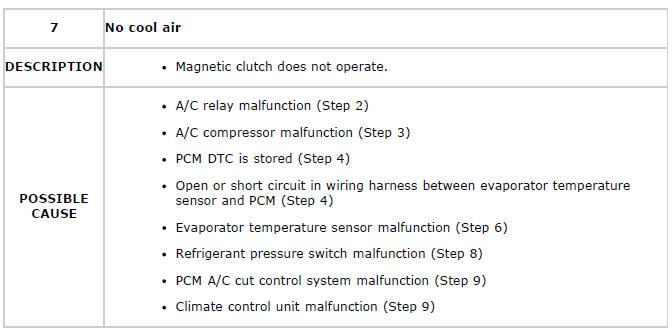

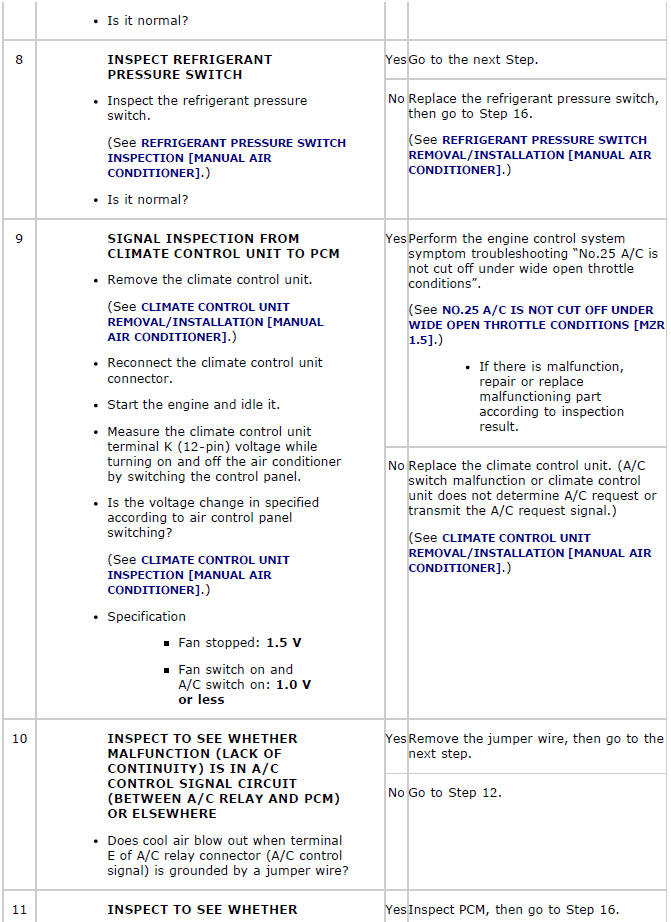

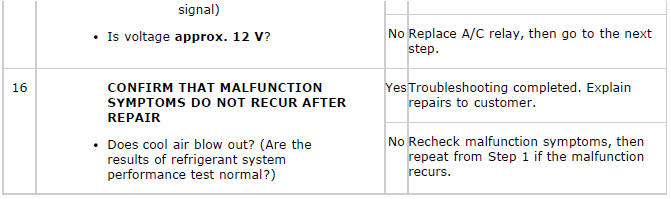

NO.7 NO COOL AIR

Mazda 2. TROUBLESHOOTING INDEX

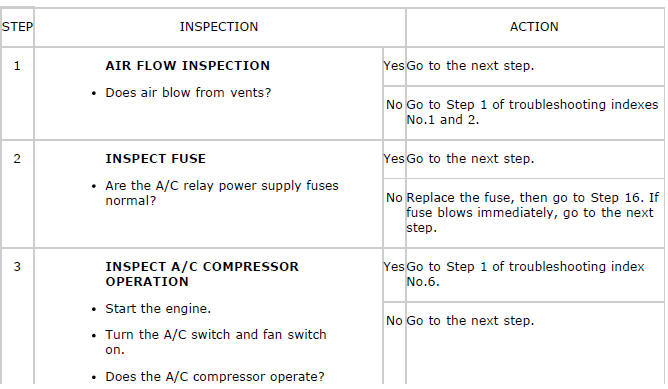

Diagnostic procedure

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

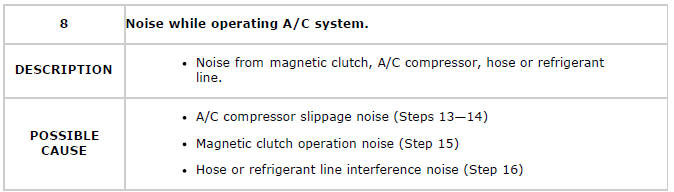

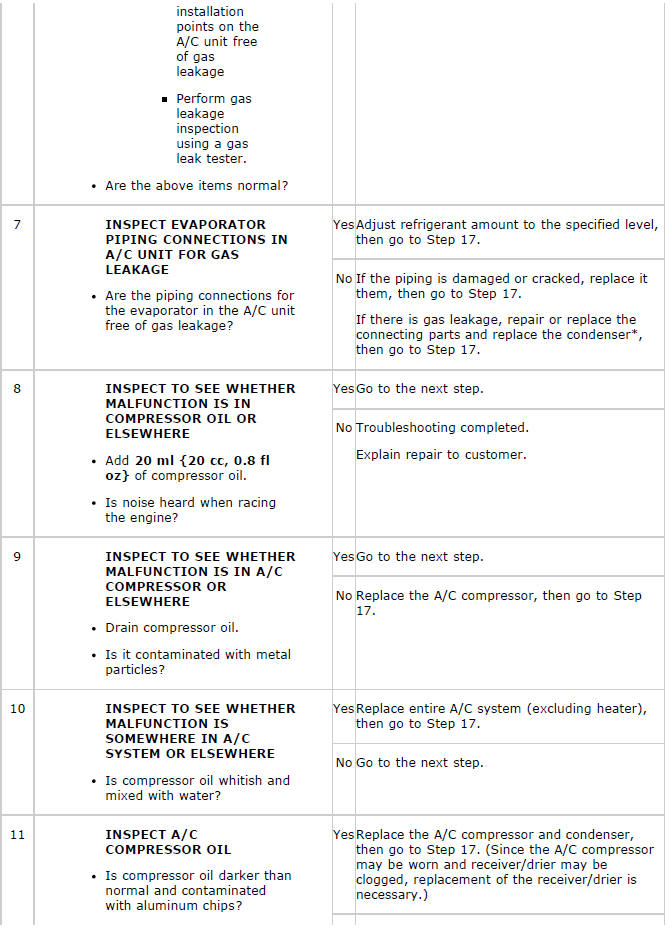

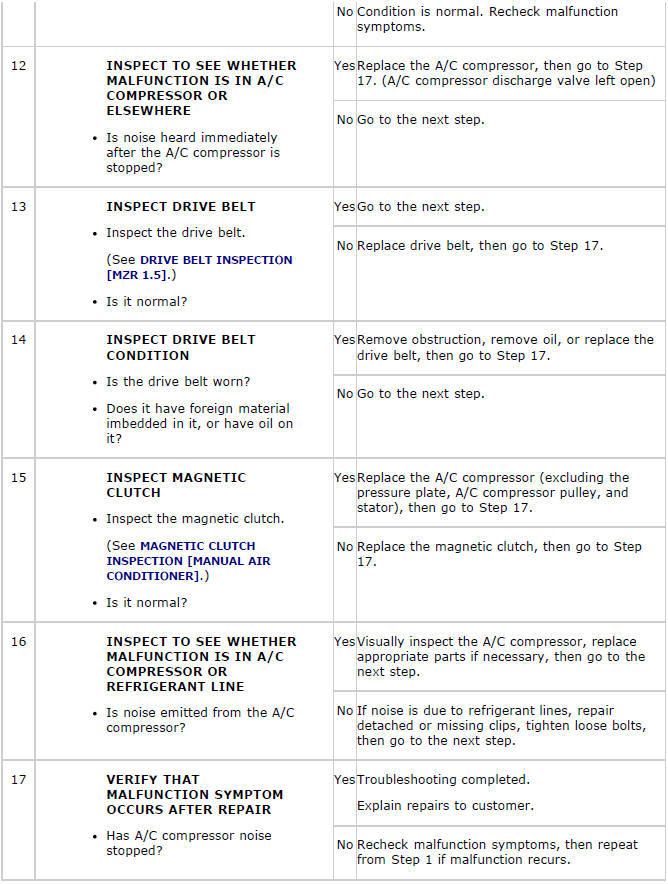

NO.8 NOISE WHILE OPERATING A/C SYSTEM

Mazda 2. TROUBLESHOOTING INDEX

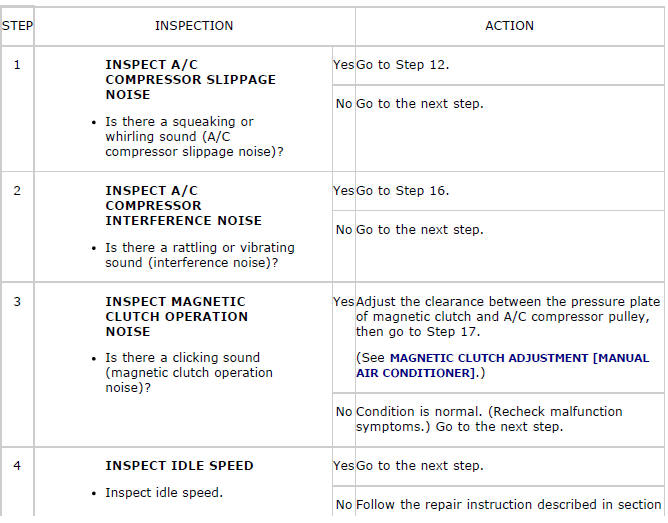

Diagnostic procedure

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX

Mazda 2. TROUBLESHOOTING INDEX
