Mazda 2: Specifications

Engine

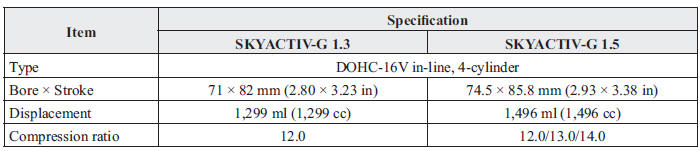

Petrol engine

Petrol engine

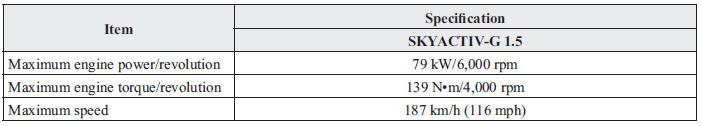

Arab Gulf Cooperation Council

Arab Gulf Cooperation Council

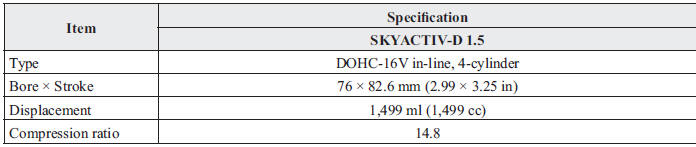

Diesel engine

Diesel engine


Electrical System

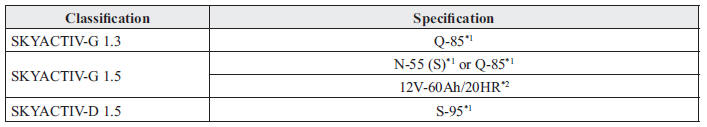

Battery

Battery


*1 N-55 (S), Q-85 or S-95 is designed for i-stop system (FOR STOP & START)/i-ELOOP system. Only N-55 (S), Q-85 or S-95 should be used to ensure correct operation of i-stop system (FOR STOP & START)/i-ELOOP system. Consult an expert repairer, we recommend an Authorised Mazda Repairer for details.

*2 Not for i-stop system/i-ELOOP system.

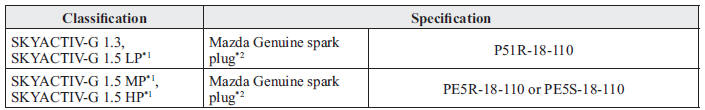

Spark-plug

Spark-plug


*1 The alphabetical letters at the end of the engine types are short for the following: LP: Low-Power

MP: Medium-Power

HP: High-Power

*2 The spark plugs provide the SKYACTIV-G its optimum performance. Consult an expert repairer, we recommend an Authorised Mazda Repairer for details.

CAUTION

When cleaning the iridium plugs, do not use a wire brush. The fi ne particulate coating on the iridium alloy and platinum tips could be damaged.

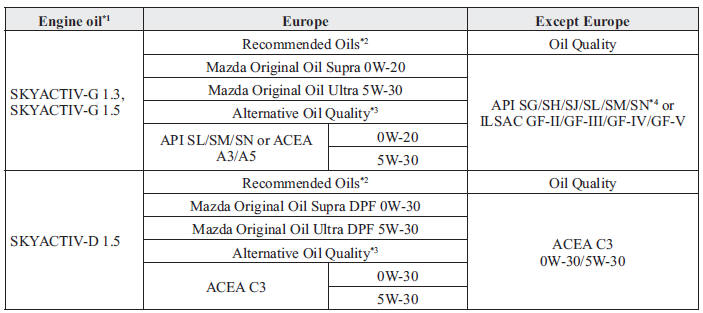

Lubricant Quality

Lubricant Quality


*1 Refer to the recommended SAE viscosity numbers on page 6-23 .

*2 Mazda Original Oils are specially designed/tested for the respective engine. For optimum performance we recommend to use Mazda Original Oils at all times.

*3 If you are unable to fi nd a Mazda Original Oil, alternative oils meeting the listed specifi cation may also be used.

*4 For African nations, use SL or higher engine oil with the SKYACTIV-G 1.3 and SKYACTIV-G 1.5 LP (Low- Power) engines.

Do not use oils which do not meet the above specifi cation or requirements. Use of unsuitable oil may lead to engine damage which is not covered by the Mazda Warranty.

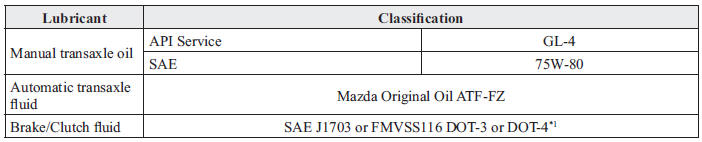

Lubricant Quality


*1 (Except European models) Use FMVSS116 DOT-4 brake fl uid for vehicles equipped with the SKYACTIV-D 1.5 engine and drum type rear brakes.

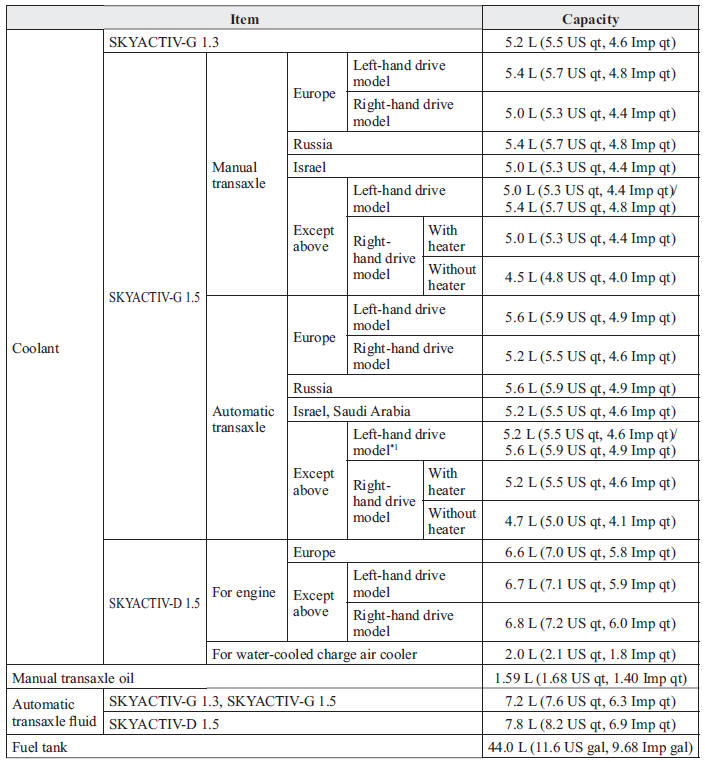

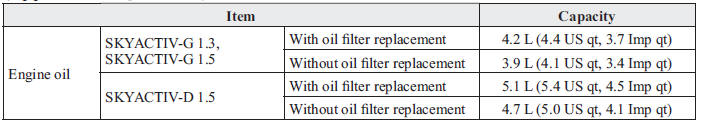

Capacities

(Approximate Quantities)

Capacities


Capacities


Check oil and fl uid levels with dipsticks or reservoir gauges.

*1 The engine coolant amount varies depending on the specifi cation.

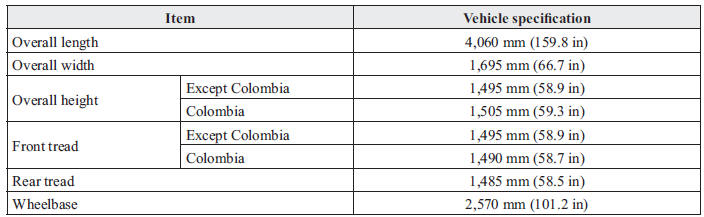

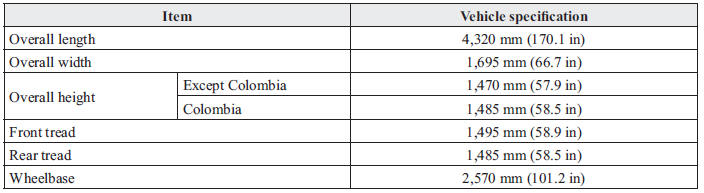

Dimensions

Saloon

Saloon


Hatchback

Hatchback


Light Bulbs

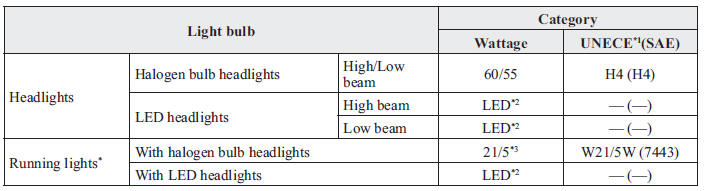

Exterior light

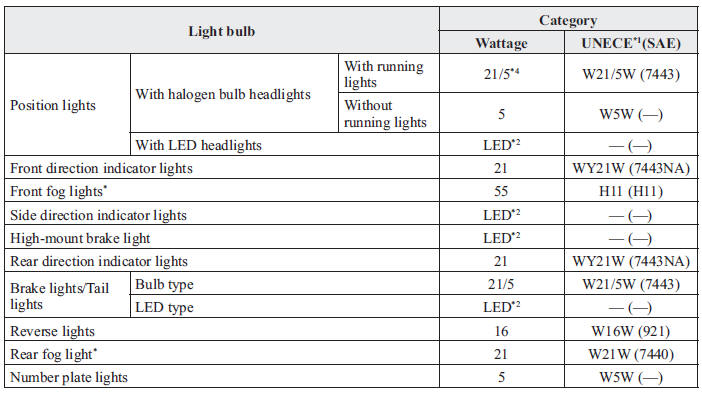

Exterior light


Exterior light


*1 UNECE stands for United Nations Economic Commission for Europe.

*2 LED is the abbreviation for Light Emitting Diode.

*3 Double-fi lament light bulb, however, only 21 W fi lament bulb is used in the running lights.

*4 Double-fi lament light bulb, however, only 5 W fi lament bulb is used in the position lights.

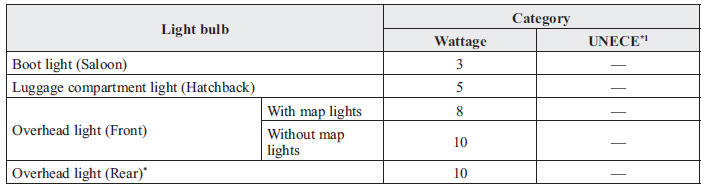

Interior light

Interior light


*1 UNECE stands for United Nations Economic Commission for Europe.

Tyres

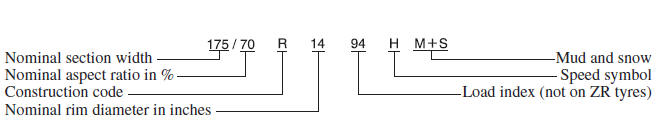

Sample tyre mark and its meaning

Sample tyre mark and its meaning

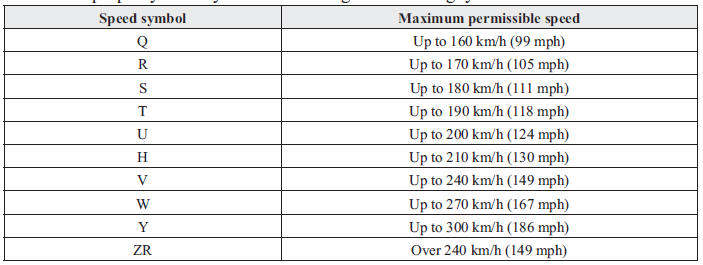

Tyre mark information

Choose the proper tyres for your vehicle using the following tyre mark information.

Tyre mark information


Tyre and infl ation pressure

NOTE

The tyres have been optimally matched with the chassis of your vehicle.

When replacing tyres, Mazda recommends that you replace tyres of the same type originally fi tted to your vehicle. For details, contact an expert repairer, we recommend an Authorised Mazda Repairer.

Check the tyre pressure label for tyre size and infl ation pressure (page 6-44 ).

After adjusting the tyre pressure, initialization of the tyre pressure monitoring system is necessary to make the system operates normally.

Refer to Tyre Pressure Monitoring System Initialization on page 4-142 .

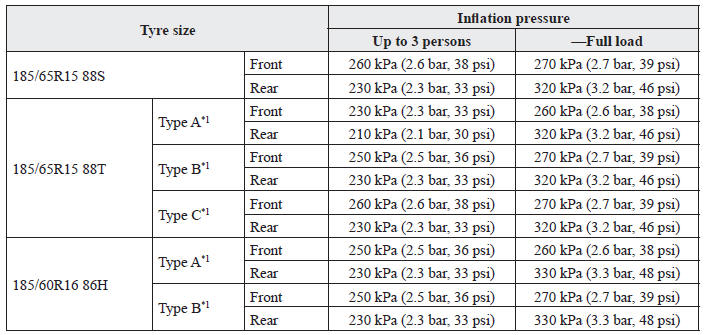

Standard tyre

Standard tyre


1 person's weight: About 75 kg

*1 Check the tyre in􀃀 ation pressure label (driver's door frame ) for the correct tyre in􀃀 ation pressure. Refer to Tyre Pressure Label on page 9-3 .

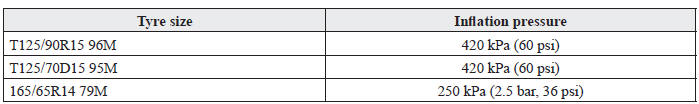

Temporary spare tyre*

Temporary spare tyre*

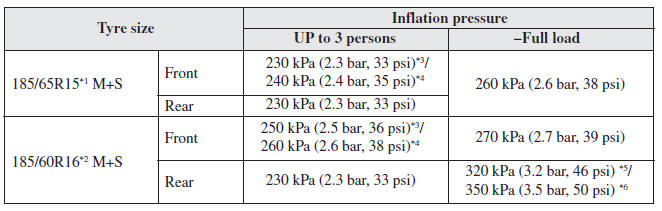

Winter tyre (European models)

Winter tyre (European models)


1 person's weight: About 75 kg

*1 Load index and Speed Symbol: 88Q/88S/88T

*2 Load index and Speed Symbol: 86Q/86S/86T/86H

*3 SKYACTIV-G 1.5

*4 SKYACTIV-D 1.5

*5 Load index and Speed Symbol: 86Q/86S/86T

*6 Load index and Speed Symbol: 86H

Wheel nut tightening torque

When installing a tyre, tighten the wheel nut to the following torque.

108—147 N􀂇m (12—14 kgf􀂇m, 80—108 ft􀂇lbf)

Fuses

Refer to Fuses on page 6-61 .

Brakes

If you require information regarding the wear limit specification for the brake disc plates and drums, or the measurement method, please contact an expert repairer, we recommend an Authorised Mazda Repairer. The information is made freely available.
