Mazda 2: Vent Operation
Adjusting the Vents
Directing airfl ow
To adjust the direction of airfl ow, move the
adjustment knob.
NOTE
When using the air conditioner under
humid ambient temperature conditions,
the system may blow fog from the vents.
This is not a sign of trouble but a result
of humid air being suddenly cooled.
Centre vents (driver) and Side vents

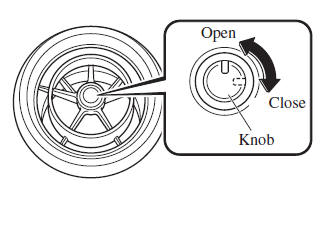

Air vent open/close
NOTE
The air vents can be fully opened and
closed by operating the knob.
Airfl ow direction adjustment
Centre vents (front passenger)
Air vent open/close
Airfl ow direction adjustment
Selecting the Airfl ow Mode
READ NEXT:
Type A
Type B
Type C
Type D
Control Switches
Temperature control dial
(Type A/Type B/Type C)
This dial controls temperature. Turn it
clockwise for hot and anticlockwise for
cold.
(
European model
Except European model
Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and anticlockwise for
cold.
Fan control dial
Th
