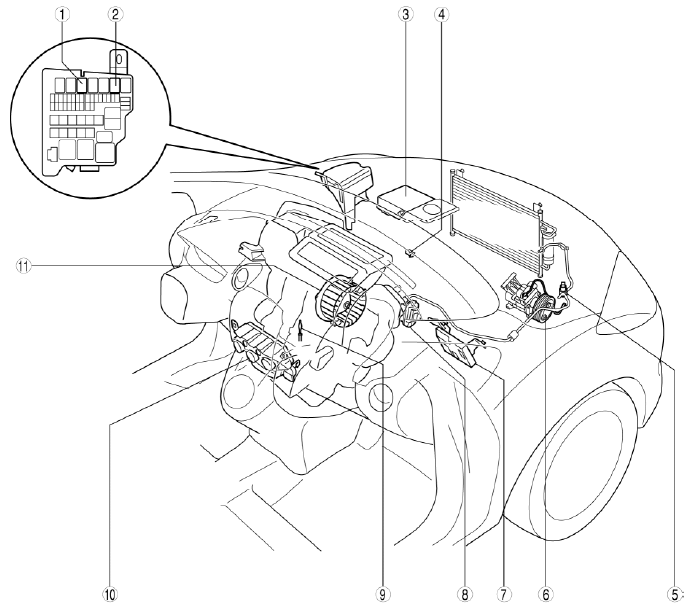

HVAC CONTROL SYSTEM LOCATION INDEX

Mazda 2. HVAC CONTROL SYSTEM LOCATION INDEX

  1. A/C relay
    • (See RELAY LOCATION.)
    • (See RELAY INSPECTION.)
  2. Blower relay
    • (See RELAY LOCATION.)
    • (See RELAY INSPECTION.)
  3. PCM
    • (See PCM REMOVAL/INSTALLATION)
    • (See PCM INSPECTION)
    • (See PCM CONFIGURATION)
  4. Engine coolant temperature sensor
    • (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION)
    • (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION)
  5. Refrigerant pressure switch
    • (See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
    • (See REFRIGERANT PRESSURE SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
  6. Magnetic clutch
    • (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].)
    • (See MAGNETIC CLUTCH ADJUSTMENT [MANUAL AIR CONDITIONER].)
    • (See MAGNETIC CLUTCH INSPECTION [MANUAL AIR CONDITIONER].)
  7. BCM
    • (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)
    • (See BODY CONTROL MODULE (BCM) INSPECTION.)
    • (See BODY CONTROL MODULE (BCM) CONFIGURATION.)
    • (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION.)
  8. Resistor
    • (See RESISTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
    • (See RESISTOR INSPECTION [MANUAL AIR CONDITIONER].)
  9. Evaporator temperature sensor
    • (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
    • (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
  10. Climate control unit
    • (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
    • (See CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].)
    • (See CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER].)
    • (See FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
  11. Blower motor
    • (See BLOWER MOTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
    • (See BLOWER MOTOR INSPECTION [MANUAL AIR CONDITIONER].)
