Mazda 2: Interior Equipment (View A)

Interior Equipment (View A)


  1. Wiper and washer lever
  2. Turn and lane-change signal
  3. Lighting control
  4. Door-lock knob
  5. Power window switches
  6. Power window lock switch
  7. Door-lock switch
  8. Outside mirror switch
  9. DSC OFF switch
  10. Tyre pressure monitoring system set switch
  11. i-stop OFF switch
  12. Headlight Levelling switch
  13. LDWS switch
  14. SCBS OFF switch
  15. Blind Spot Monitoring (BSM) switch

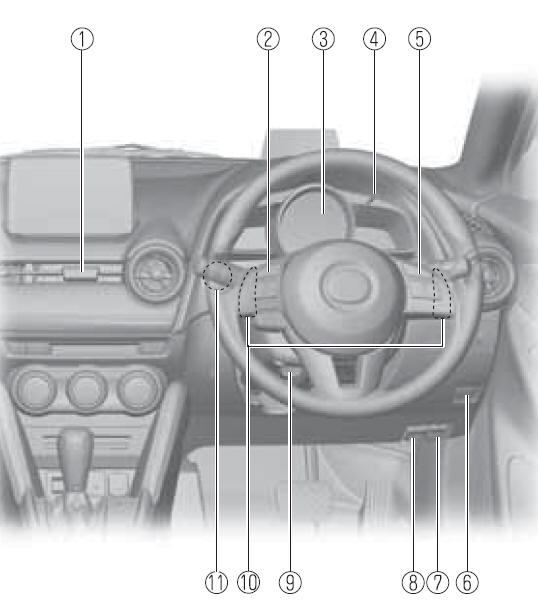

Interior Equipment (View A)


  1. Hazard warning fl asher switch
  2. Audio control switches
  3. Instrument cluster
  4. Instrument panel illumination knob
  5. Cruise control switches
  6. Boot release button
  7. Remote fuel-fi ller fl ap release
  8. Bonnet release handle
  9. Lock release lever
  10. Steering shift switches
  11. Push button start
