Mazda 2: Removable Ashtray
The removable ashtray can be fi xed and used in either of the front cup holders.
WARNING
Only use the removable ashtray in its fi xed position, and make sure it is completely inserted: Using an ashtray removed from its fi xed position or not completely inserted is dangerous. Cigarettes could roll around or spill out of the ashtray into the vehicle and start a fi re. Moreover, cigarette stubs will not extinguish themselves completely even if the ashtray lid is closed.
CAUTION
Do not use the ashtray for rubbish. You might start a fi re.

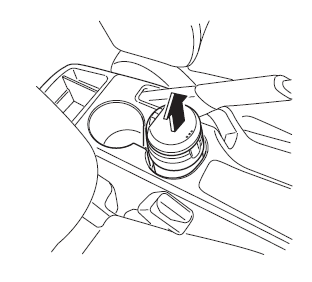

To remove the ashtray, pull it upward.
