Mazda 2: Symptom Diagnostic Index
Mazda 2 2007-2014 Service Manual / Engine / Symptom Diagnostic Index
- Confirm trouble symptom using the following diagnostic index, then go to appropriate troubleshooting chart.

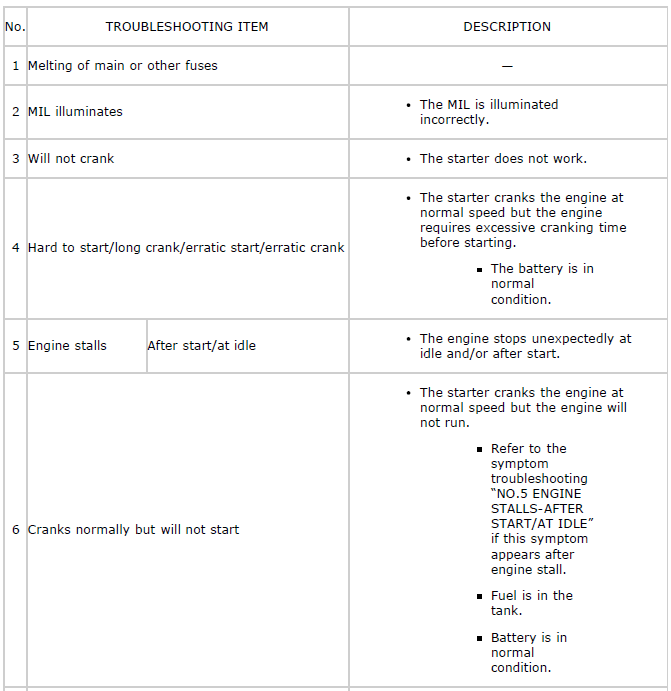

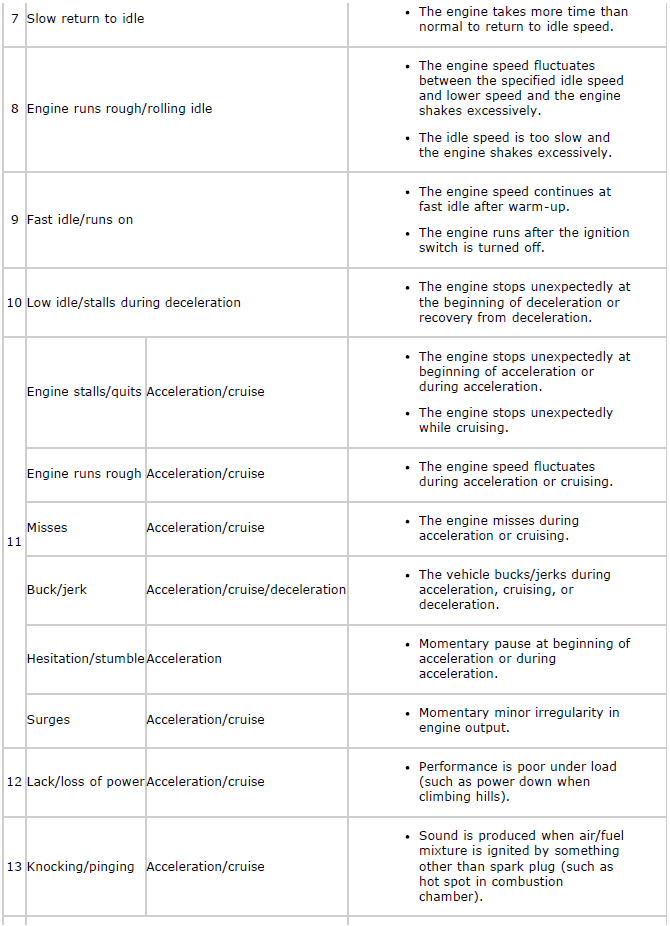

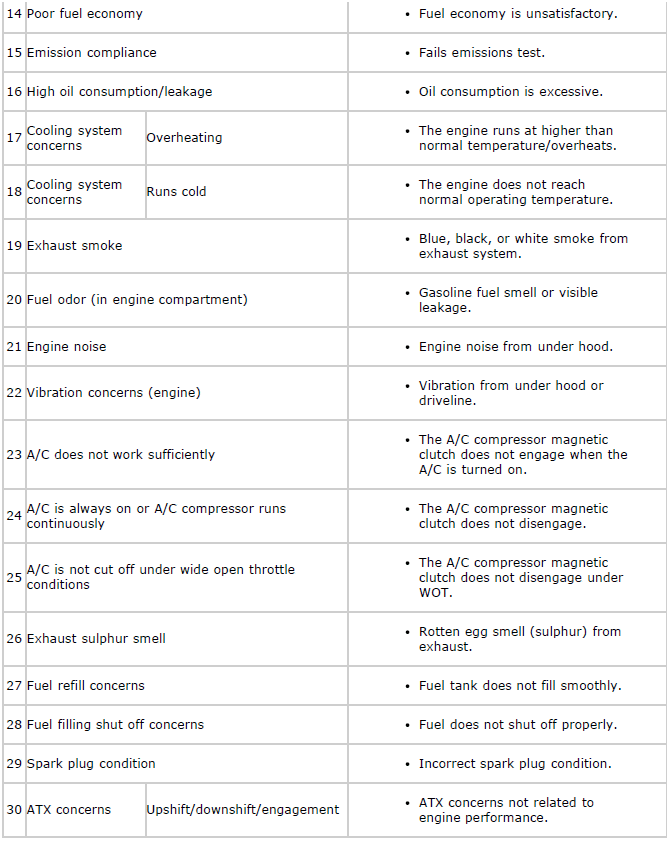

Diagnostic Index
CONTROL SYSTEM DEVICE AND CONTROL RELATIONSHIP CHART
