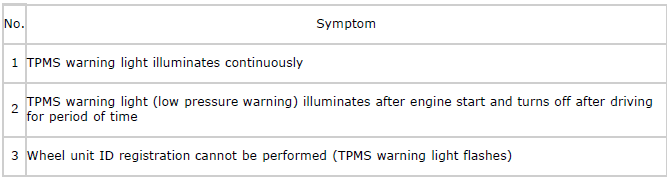

Mazda 2: Symptom Troubleshooting

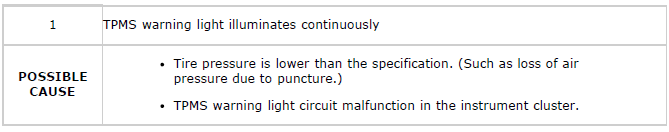

NO.1 TPMS WARNING LIGHT ILLUMINATES CONTINUOUSLY
CAUTION:
- The tire pressure cannot be measured accurately after driving for a long
period due to
the internal temperature and pressure. Stop the vehicle for approx. 1 hour
and then
perform the tire pressure measurement and adjustment.
- Use a high accuracy digital gauge for measurement of the tire pressure.
NOTE:
- If the DTC clearing procedure is implemented, the TPMS warning light
turns off.

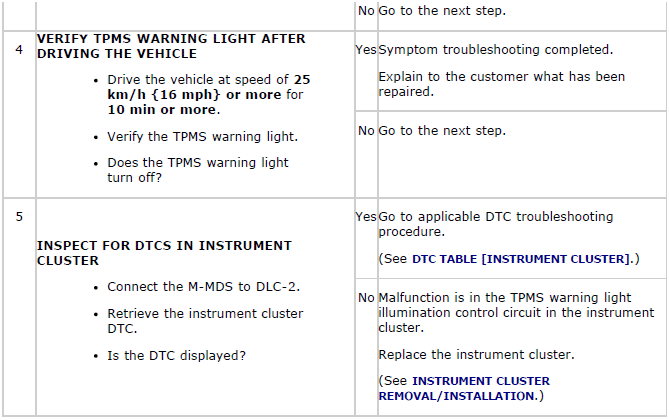

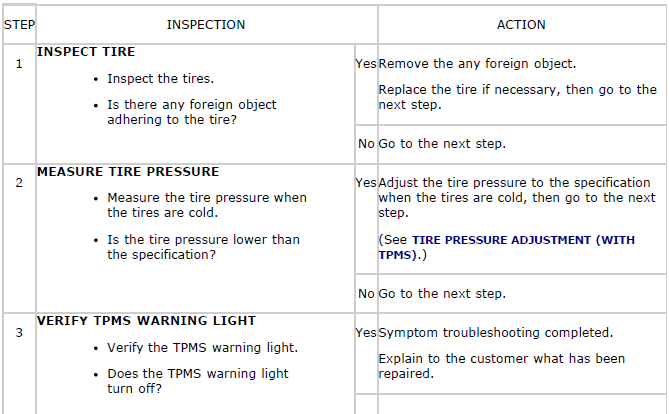

Diagnostic Procedure

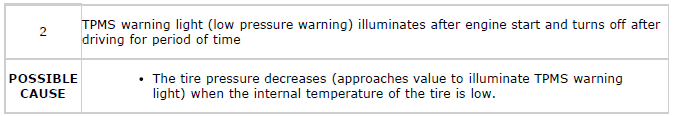

NO.2 TPMS WARNING LIGHT (LOW PRESSURE WARNING) ILLUMINATES AFTER ENGINE
START AND TURNS OFF AFTER DRIVING FOR PERIOD OF TIME
CAUTION:
- The tire pressure cannot be measured accurately after driving for a long
period due to
increased internal temperature and pressure. Stop the vehicle for approx. 1
hour and
then perform the tire pressure measurement and adjustment.
- Use a high accuracy digital gauge for measurement of the tire pressure.
NOTE:
- The tire pressure normally decreases by approx. 7 kPa {0.07 kgf/cm2,
1.00 psi}
per month even if the tire is normal.
- The Snapshot (temperature and pressure) stored when the TPMS warning
light is
turned on and off can be verified by operating the M-MDS.

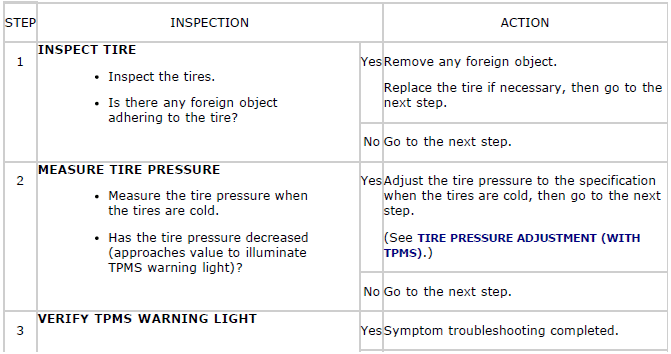

Diagnostic Procedure

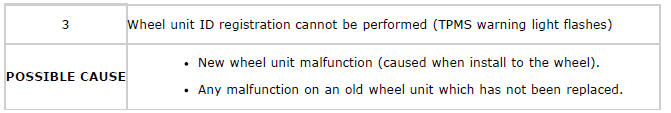

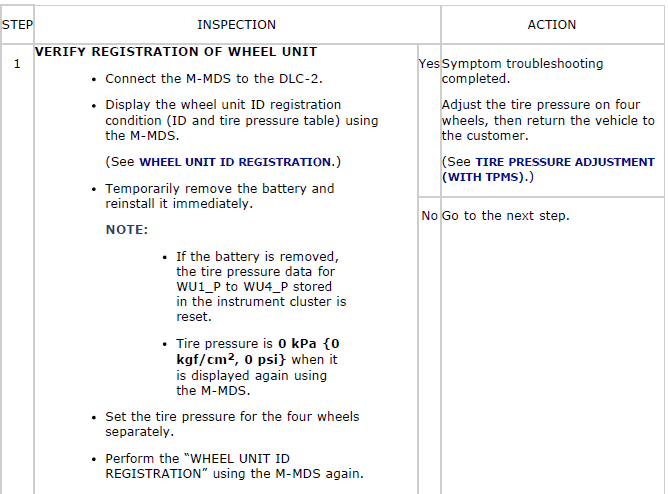

NO.3 WHEEL UNIT ID REGISTRATION CANNOT BE PERFORMED (TPMS WARNING LIGHT
FLASHES)
CAUTION:
- Activate the wheel unit ID registration mode using the M-MDS, and
perform the
following steps if the TPMS warning light does not turn off after driving at
25 km/h {16
mph} or more for 10 min or more.

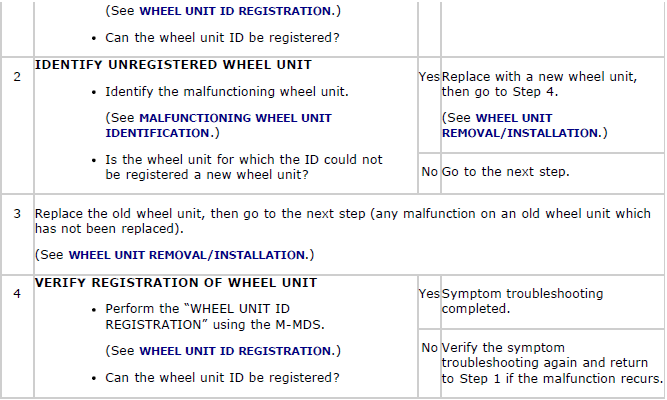

Diagnostic Procedure
