Mazda 2: Symptom Troubleshooting [Instrument Cluster]

Mazda 2 2007-2014 Service Manual / Body and Accessories / Symptom Troubleshooting [Instrument Cluster]

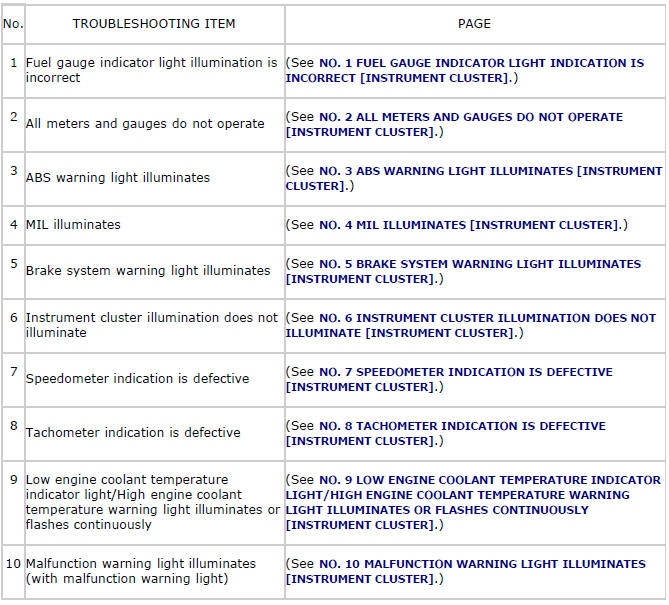

Mazda 2. SYMPTOM TROUBLESHOOTING [INSTRUMENT CLUSTER]

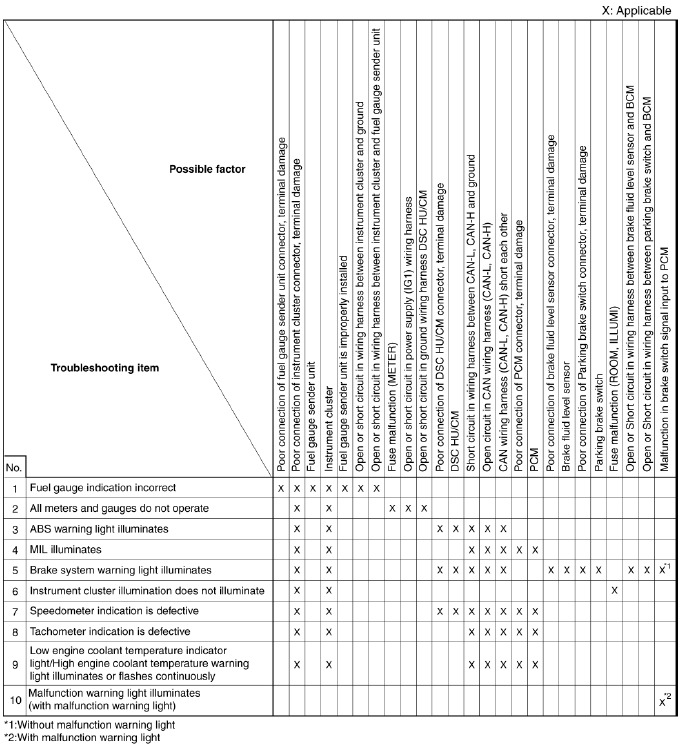

QUICK DIAGNOSTIC CHART [INSTRUMENT CLUSTER]

Mazda 2. QUICK DIAGNOSTIC CHART [INSTRUMENT CLUSTER]

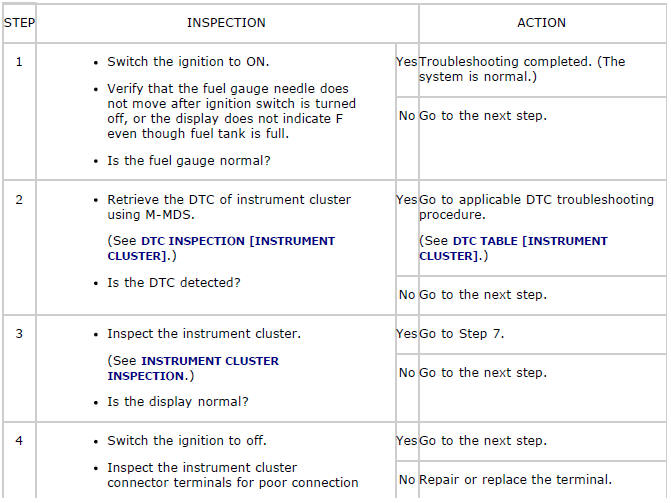

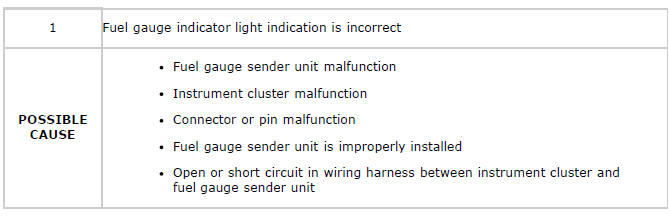

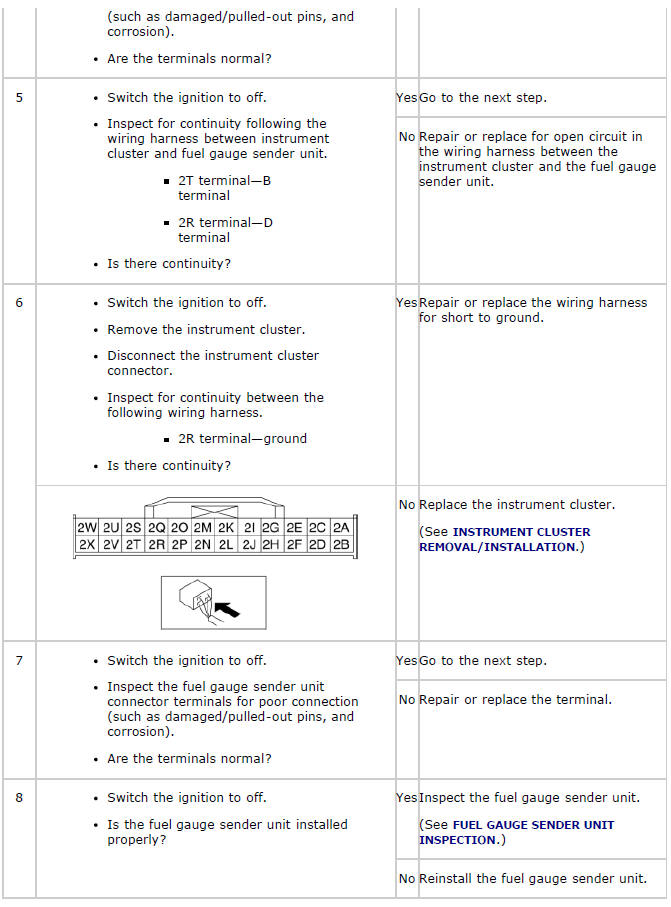

NO. 1 FUEL GAUGE INDICATOR LIGHT INDICATION IS INCORRECT

Mazda 2. SYMPTOM TROUBLESHOOTING

Diagnostic procedure

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

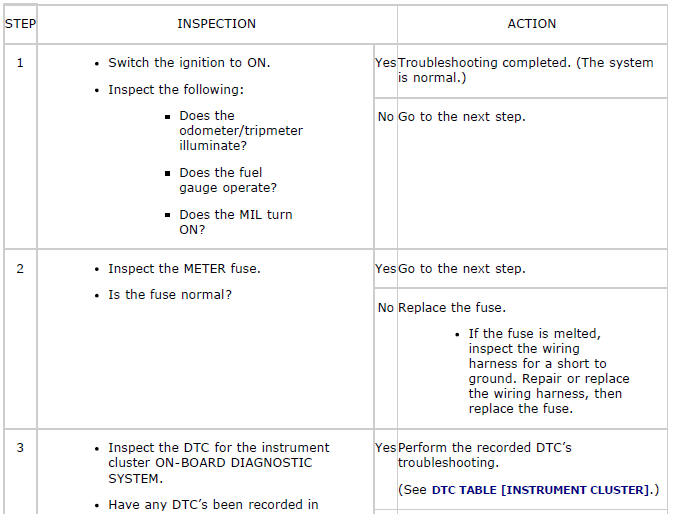

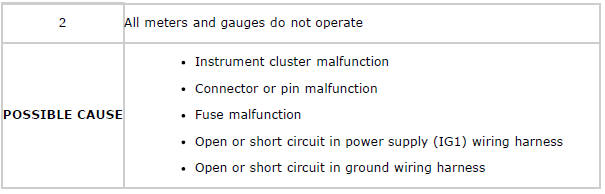

NO. 2 ALL METERS AND GAUGES DO NOT OPERATE

Mazda 2. SYMPTOM TROUBLESHOOTING

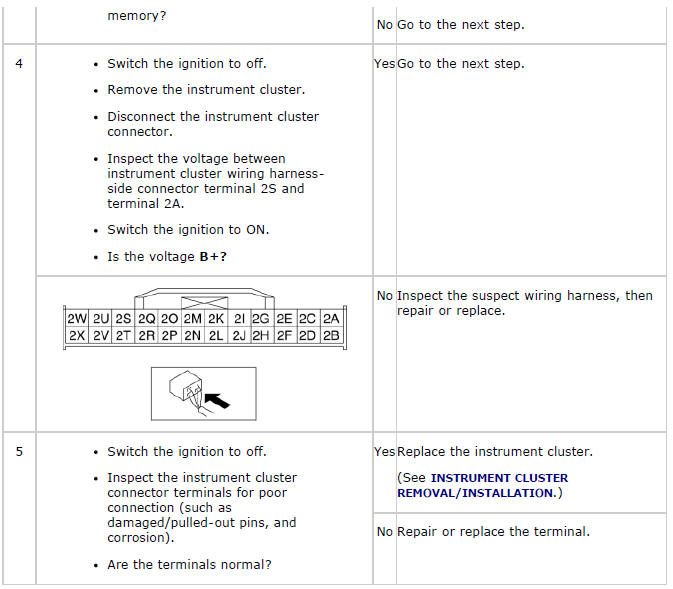

Diagnostic procedure

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

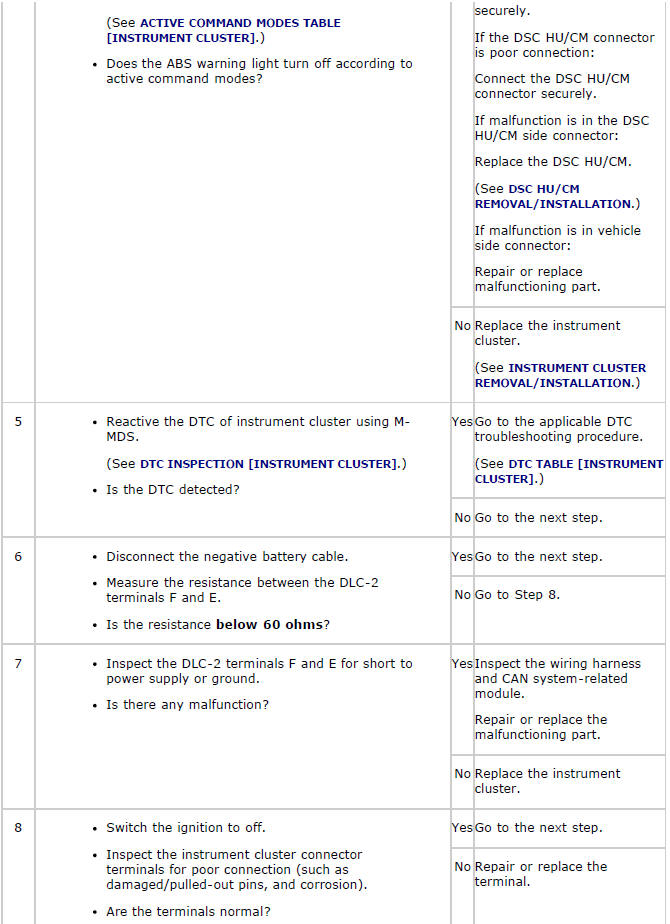

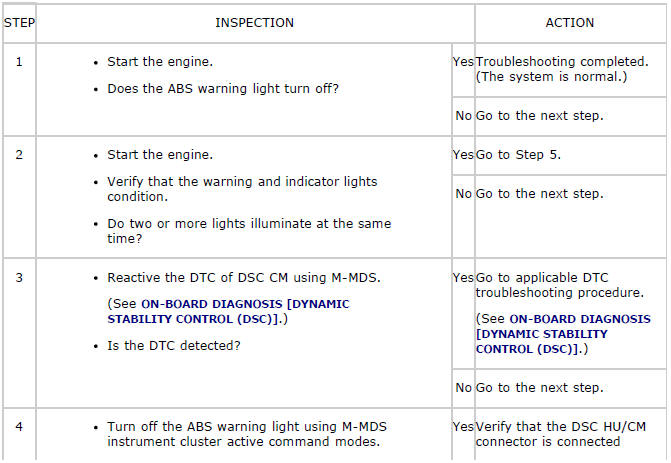

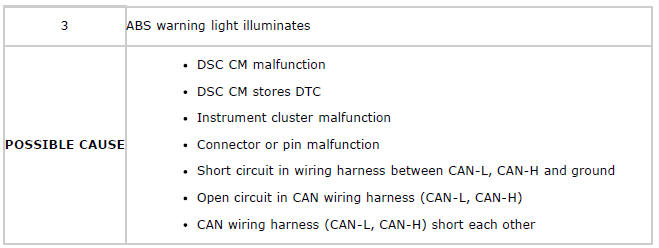

NO. 3 ABS WARNING LIGHT ILLUMINATES

Mazda 2. SYMPTOM TROUBLESHOOTING

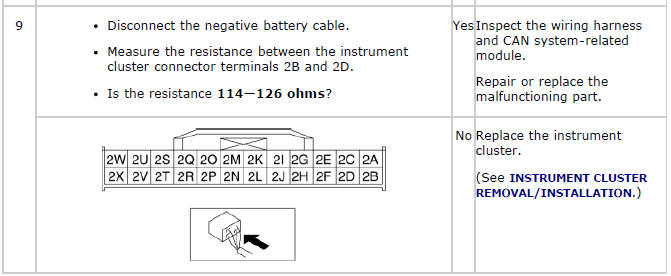

Diagnostic procedure

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

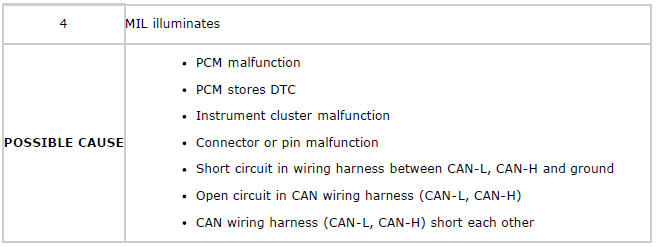

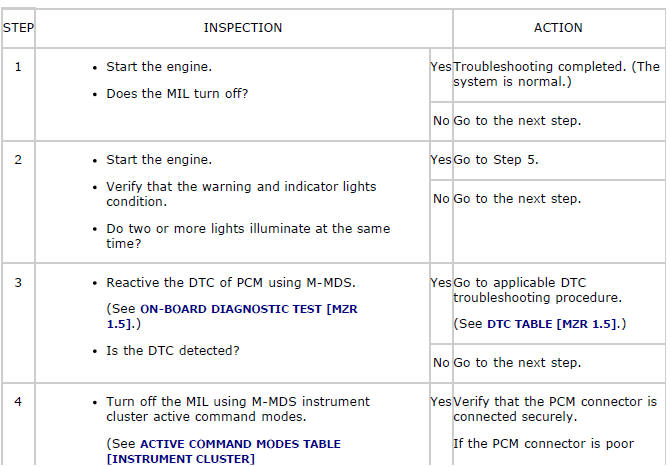

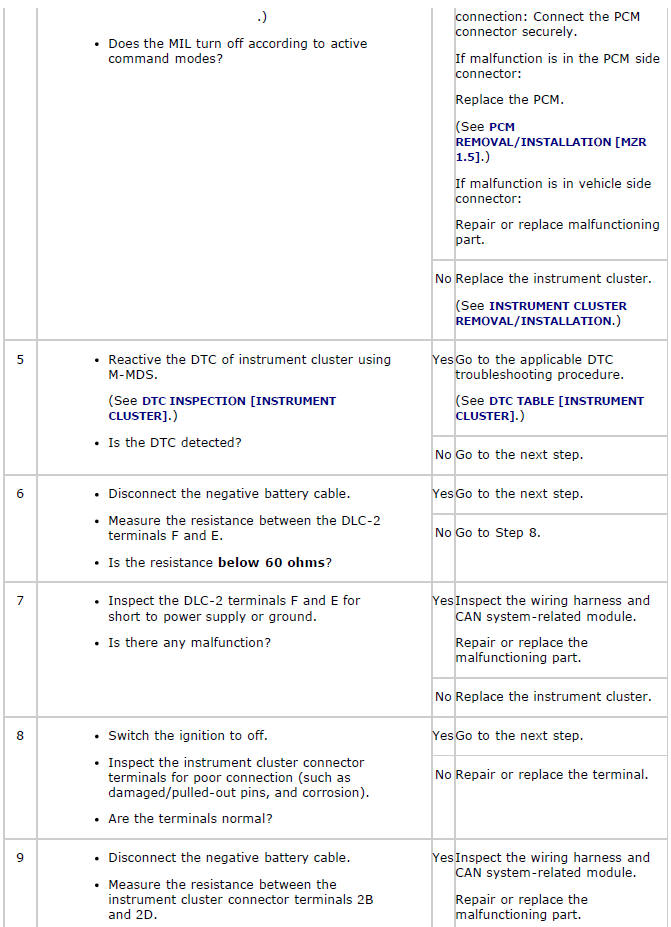

NO. 4 MIL ILLUMINATES

Mazda 2. SYMPTOM TROUBLESHOOTING

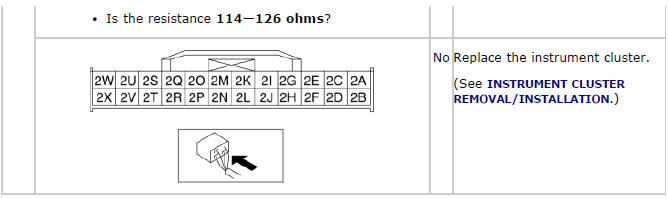

Diagnostic procedure

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

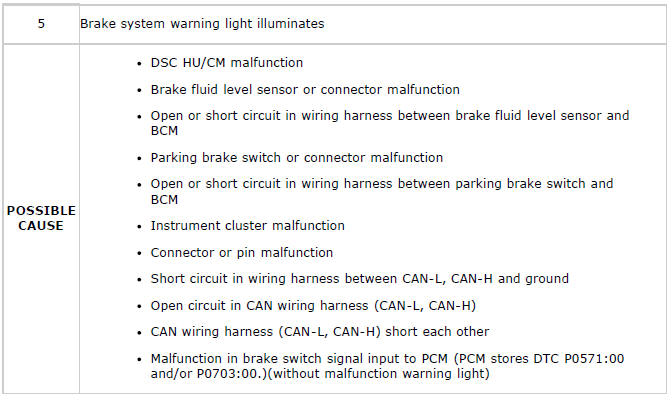

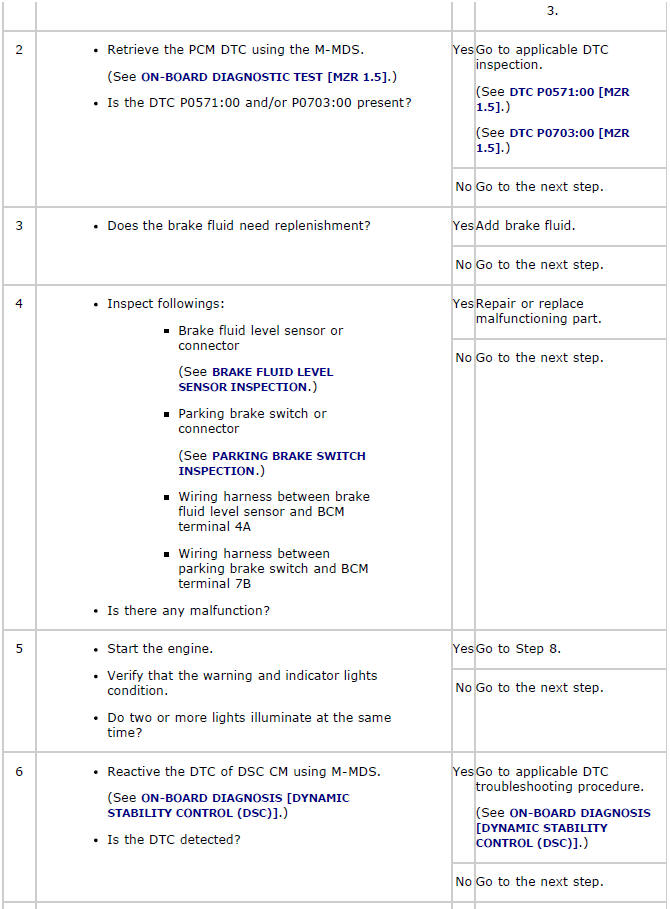

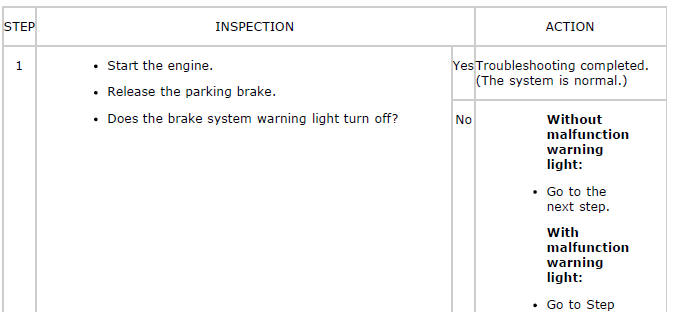

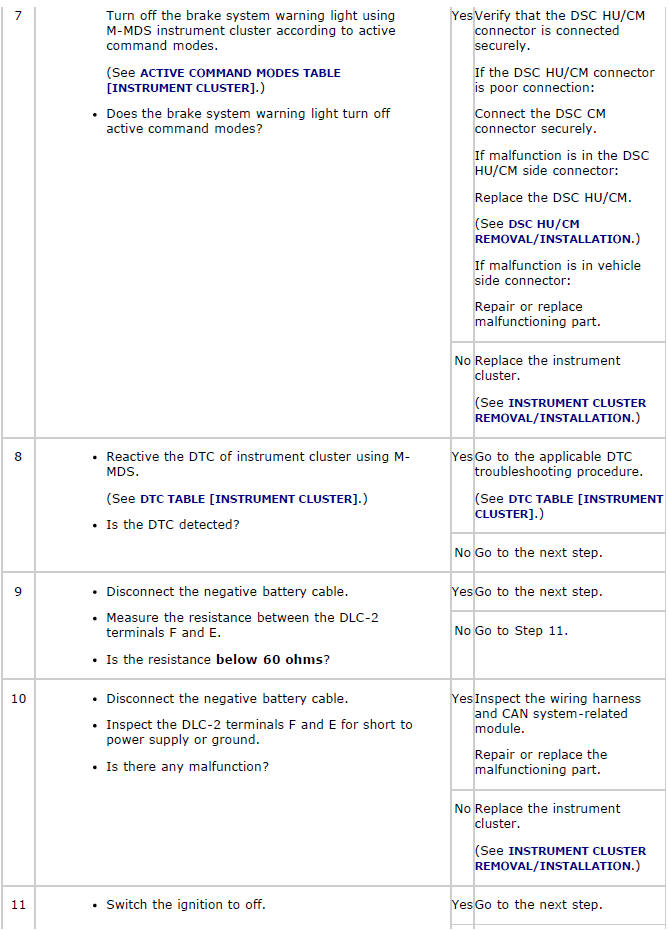

NO. 5 BRAKE SYSTEM WARNING LIGHT ILLUMINATES

Mazda 2. SYMPTOM TROUBLESHOOTING

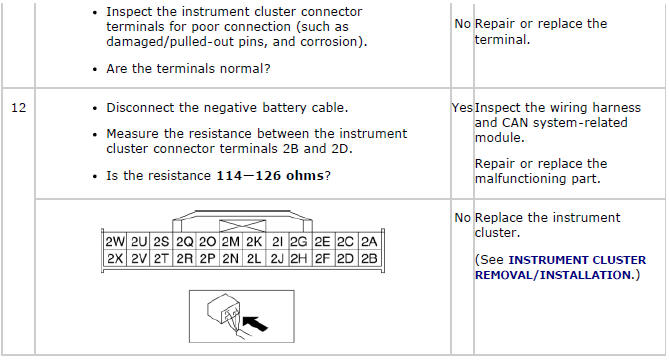

Diagnostic procedure

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

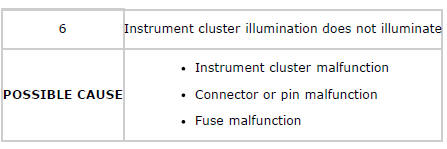

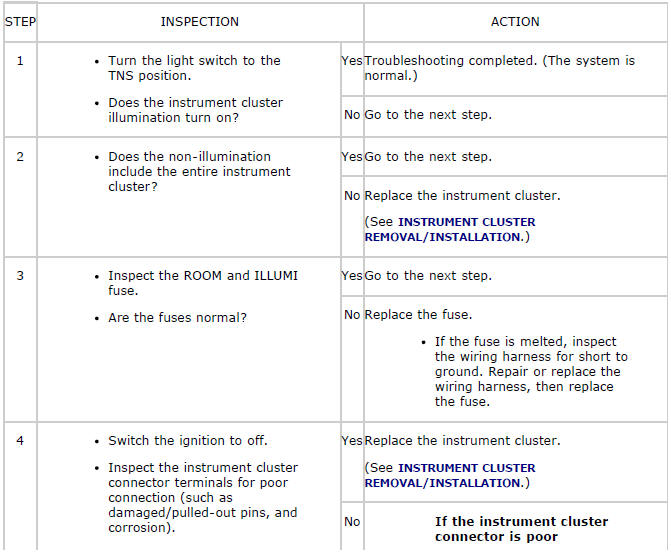

NO. 6 INSTRUMENT CLUSTER ILLUMINATION DOES NOT ILLUMINATE

Mazda 2. SYMPTOM TROUBLESHOOTING

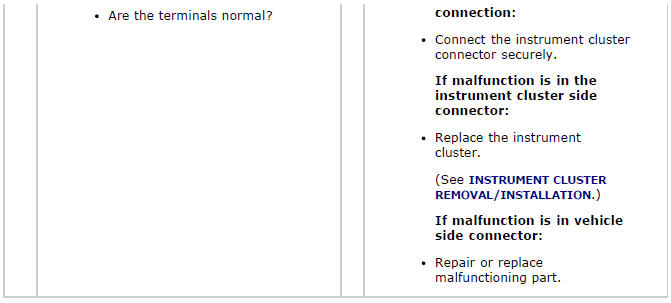

Diagnostic procedure

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

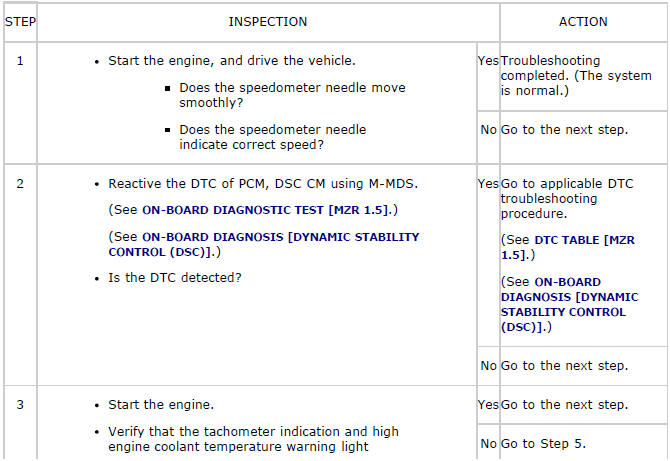

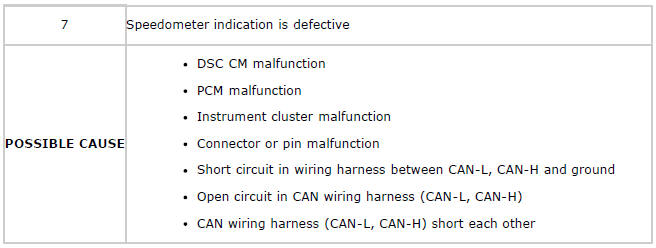

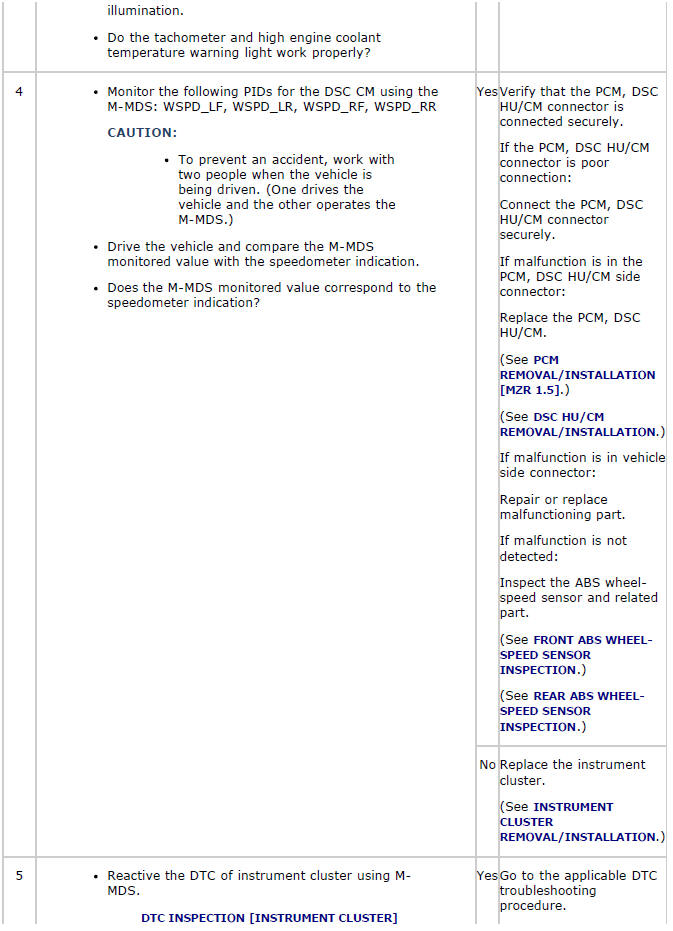

NO. 7 SPEEDOMETER INDICATION IS DEFECTIVE

Mazda 2. SYMPTOM TROUBLESHOOTING

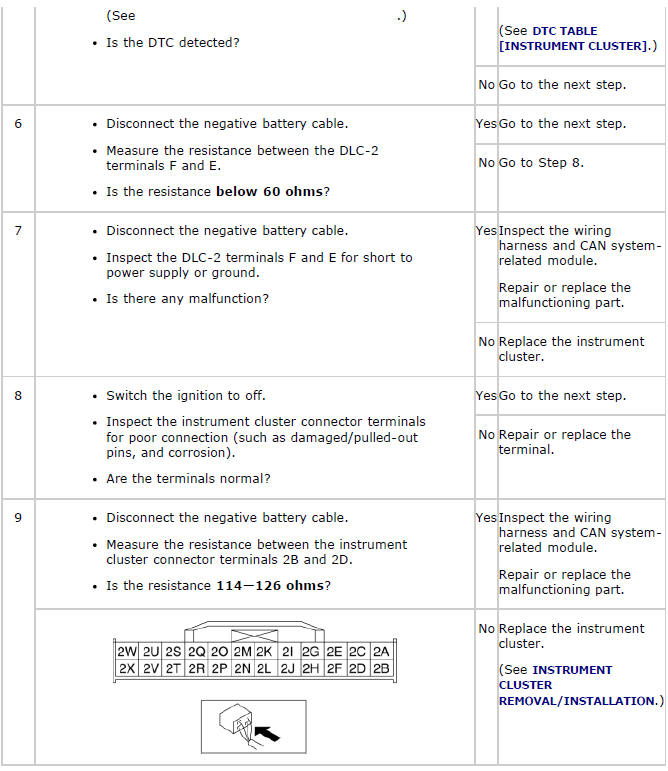

Diagnostic procedure

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

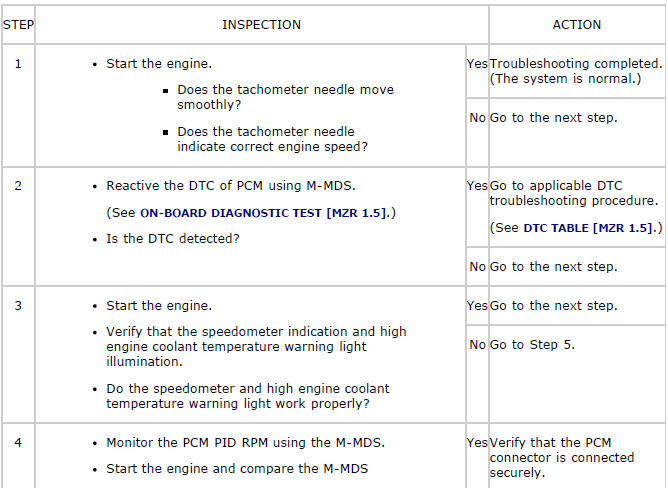

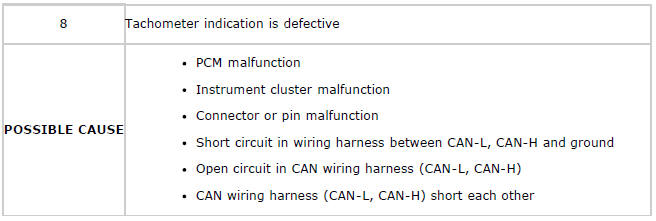

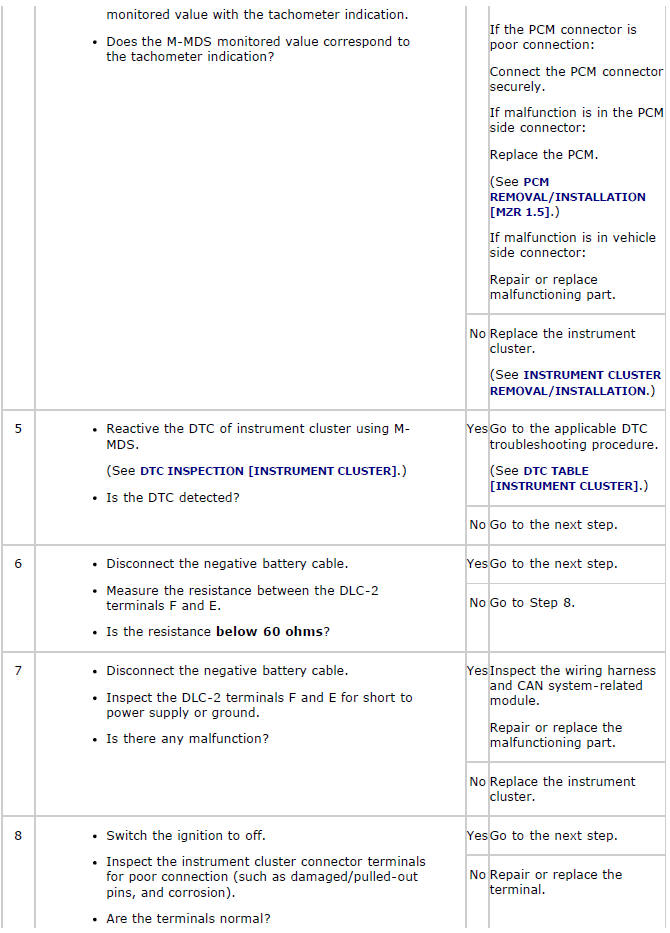

NO. 8 TACHOMETER INDICATION IS DEFECTIVE

Mazda 2. SYMPTOM TROUBLESHOOTING

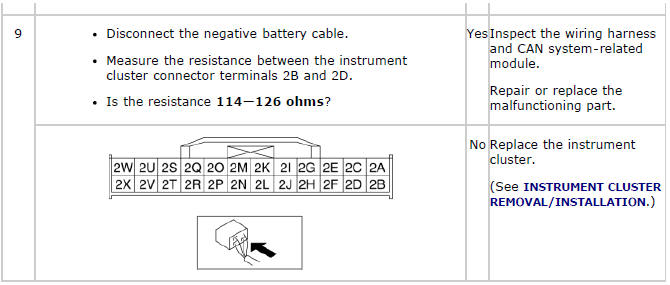

Diagnostic procedure

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

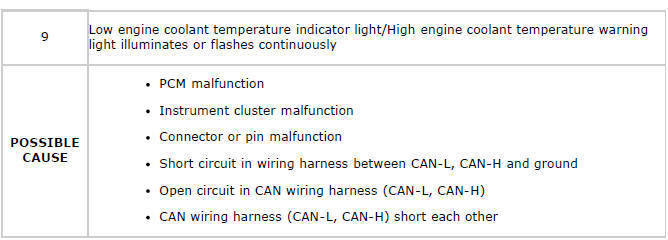

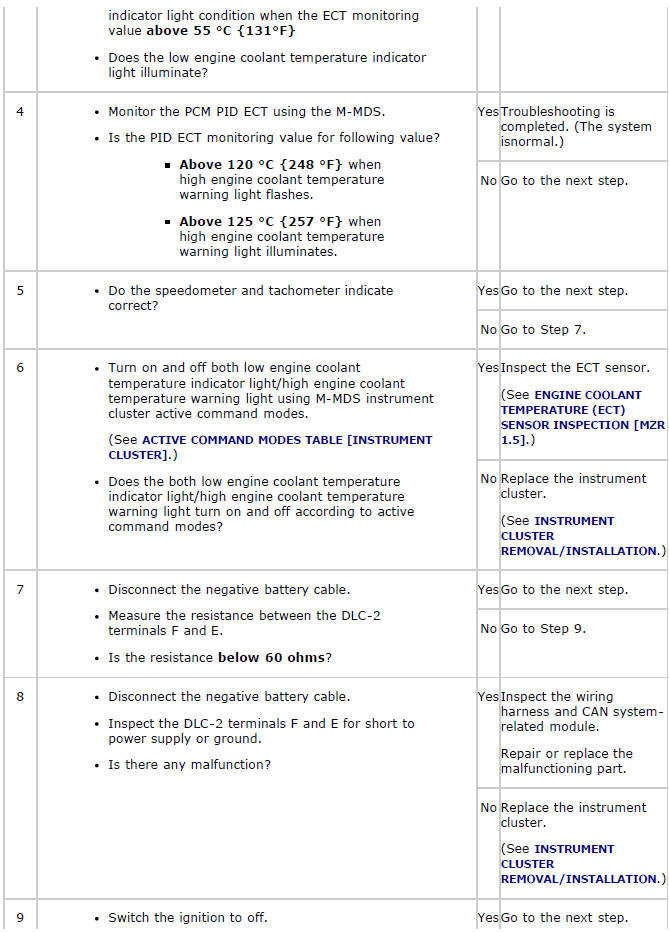

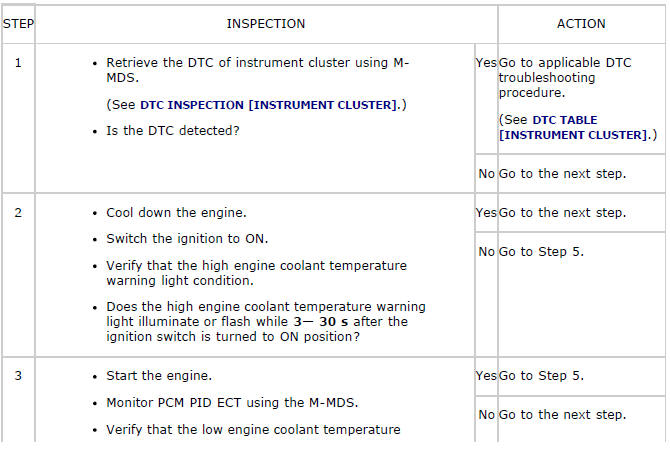

NO. 9 LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT ILLUMINATES OR FLASHES CONTINUOUSLY

Mazda 2. SYMPTOM TROUBLESHOOTING

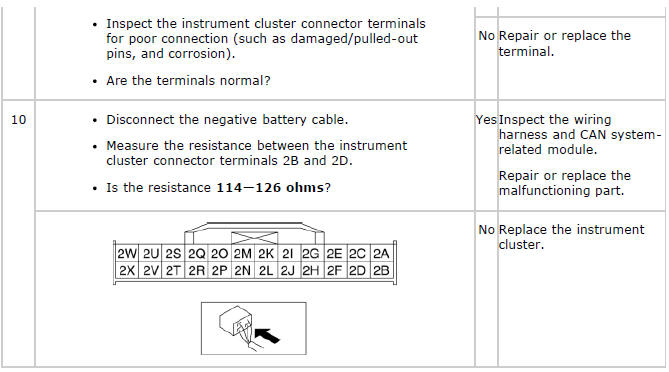

Diagnostic procedure

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

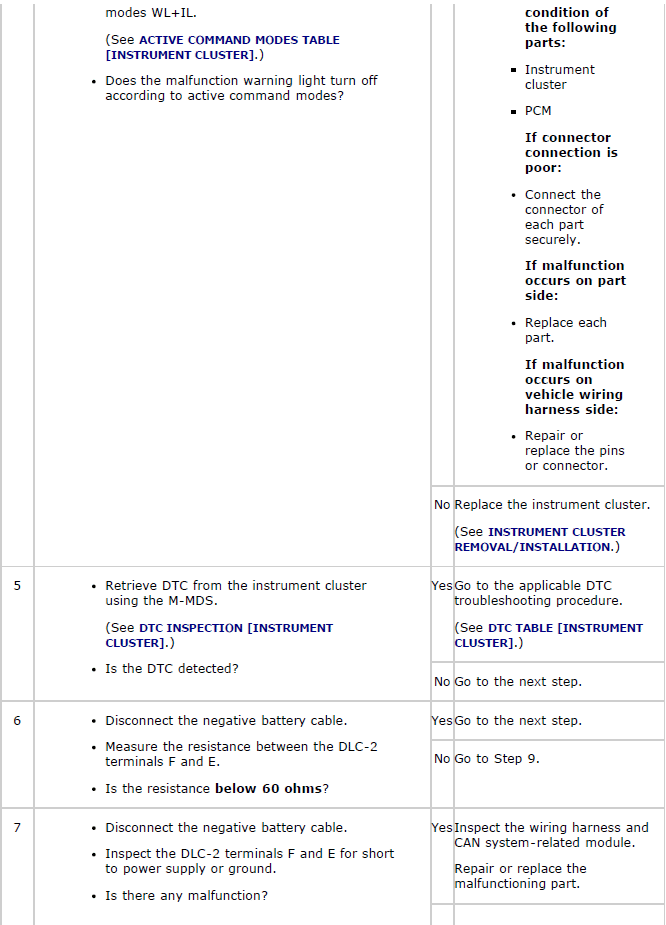

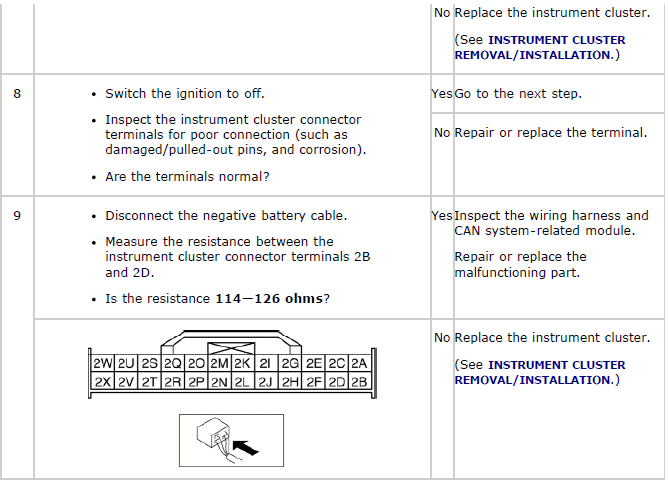

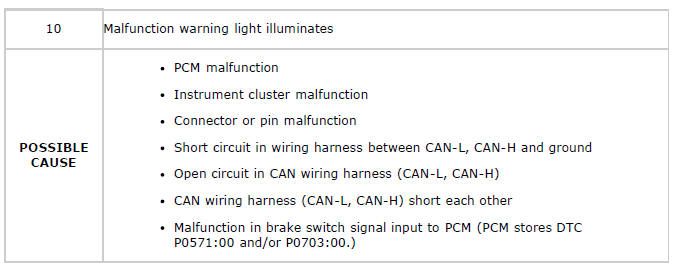

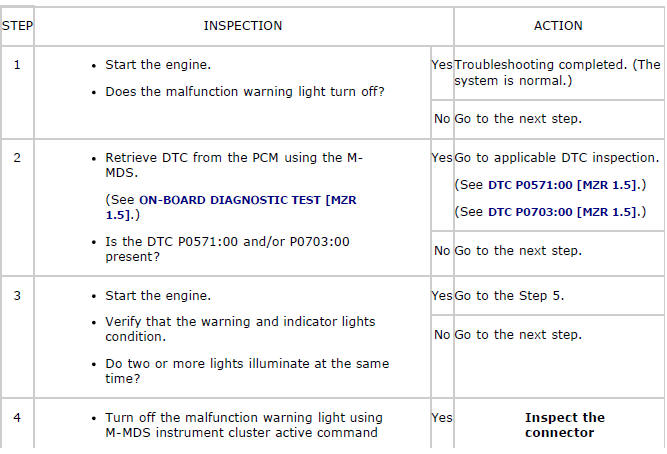

NO. 10 MALFUNCTION WARNING LIGHT ILLUMINATES

Mazda 2. SYMPTOM TROUBLESHOOTING

Diagnostic procedure

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING

Mazda 2. SYMPTOM TROUBLESHOOTING
