Mazda 2: DTC B10FE:11/B10FE:13/B10FE:87/B10FE:96

Mazda 2 2007-2014 Service Manual / Restraints / DTC / DTC B10FE:11/B10FE:13/B10FE:87/B10FE:96

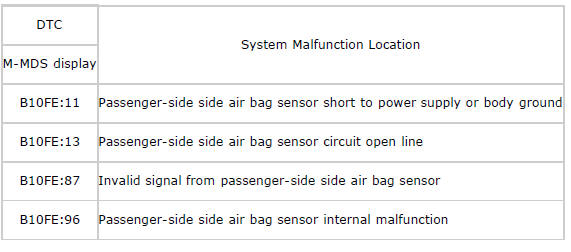

System Malfunction Location

Mazda 2. DTC

Detection Condition

WARNING:

  • Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
  • Wiring harness between passenger-side side air bag sensor and SAS control module has a malfunction.
  • Passenger-side side air bag sensor has a malfunction.

Possible Causes

  • Passenger-side side air bag sensor connector malfunction
  • Open or short circuit in the wiring harness between the passenger-side side air bag sensor and SAS control module
  • Passenger-side side air bag sensor malfunction
  • SAS control module malfunction

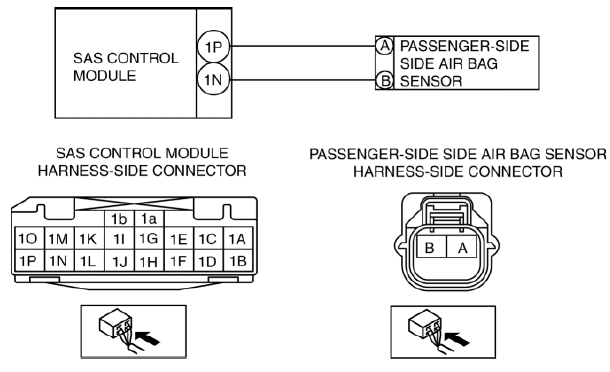

System Wiring Diagram

Mazda 2. DTC

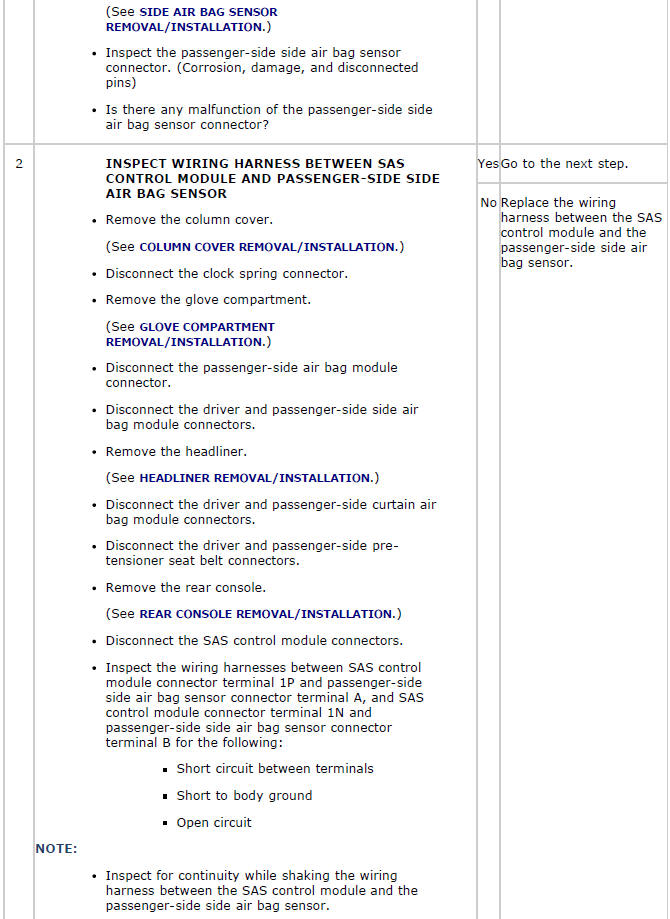

Diagnostic Procedure

Mazda 2. DTC

Mazda 2. DTC

Mazda 2. DTC

Mazda 2. DTC
