Mazda 2: DTC B1126:11/B1126:12/B1126:13/B1126:19/B1126:1A
Mazda 2 2007-2014 Service Manual / Restraints / DTC / DTC B1126:11/B1126:12/B1126:13/B1126:19/B1126:1A
System Malfunction Location
Detection Condition
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- Resistance other than 1.54-8.27 ohms is detected in driver-side side air bag module circuit
- Wiring harness between the driver-side side air bag module and SAS control module has a malfunction.
Possible Causes
- Driver-side side air bag module connector malfunction
- Open or short circuit in the wiring harness between the driver-side side air bag module and SAS control module
- Driver-side side air bag module malfunction
- SAS control module malfunction
System Wiring Diagram

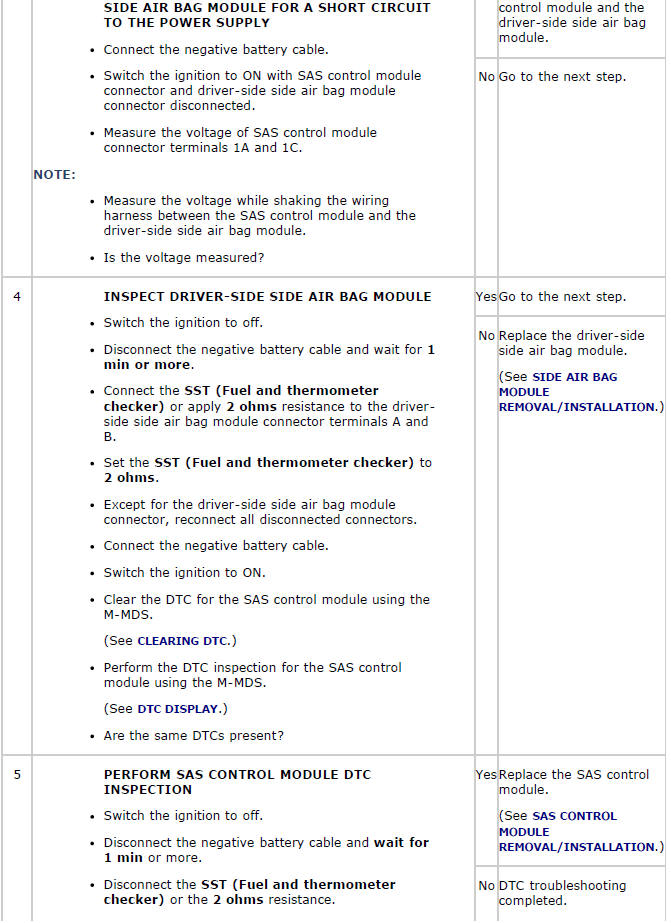

Diagnostic Procedure
DTC B1126:55/B1127:55
System Malfunction Location
Detection Condition
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- SAS control module configuration setting has not been done correctly
Possible Causes
- SAS control module configuration setting not implemented
- SAS control module configuration setting invalid
- SAS control module malfunction
Diagnostic Procedure
