Mazda 2: DTC U0300:00/U2100:00

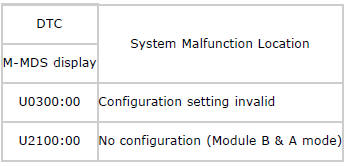

System Malfunction Location
Detection Condition
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- SAS control module configuration setting has not been done correctly
Possible Causes
- SAS control module configuration setting not implemented
- SAS control module configuration setting invalid
- SAS control module malfunction

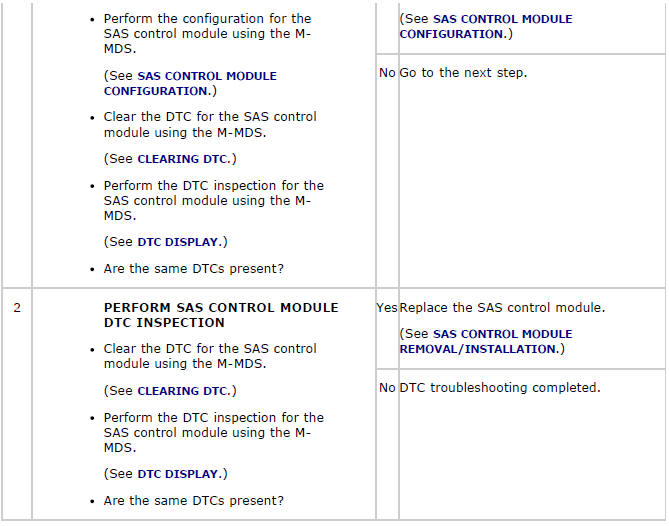

Diagnostic Procedure
DTC U3000:46/U3000:49

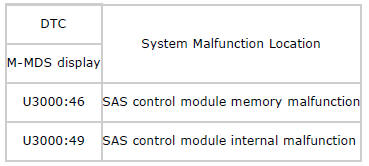

System Malfunction Location
Detection Condition
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- SAS control module internal malfunction
Possible Causes
- SAS control module malfunction

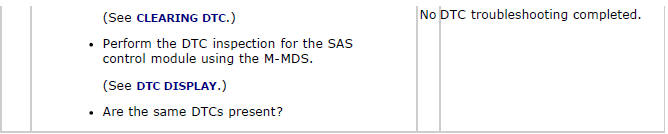

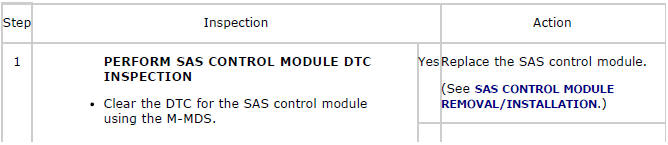

Diagnostic Procedure
