Mazda 2: Foreword [CD Player]

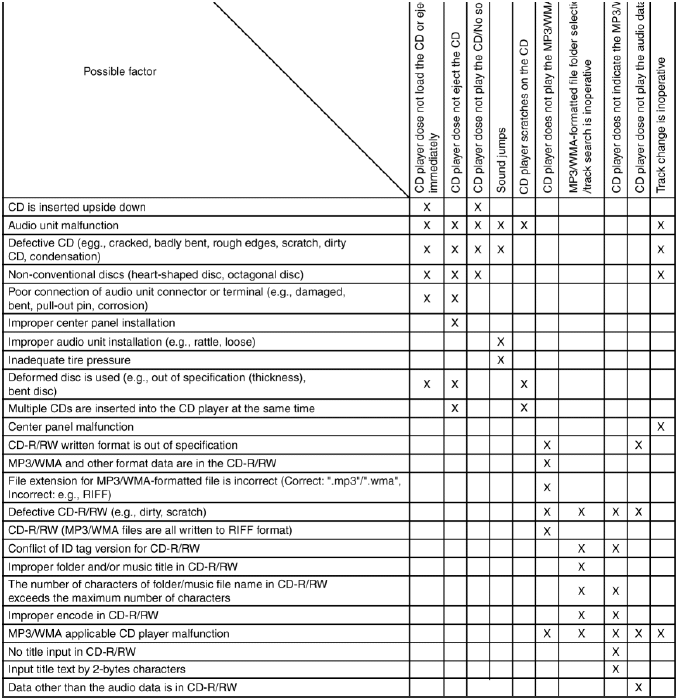

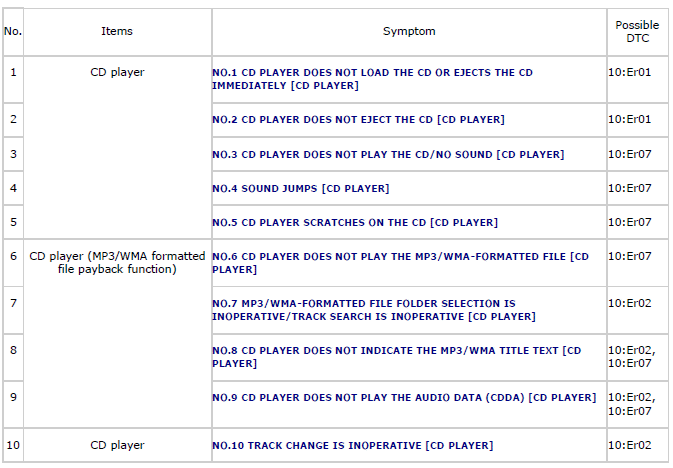

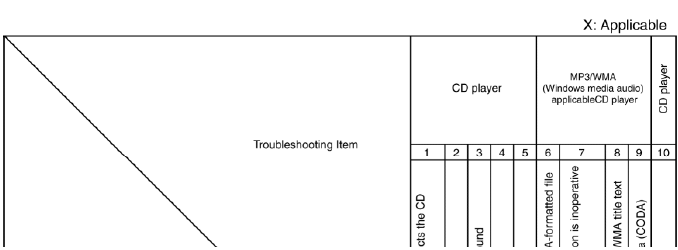

Troubleshooting Index
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3112.png)
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3113.png)
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3114.png)

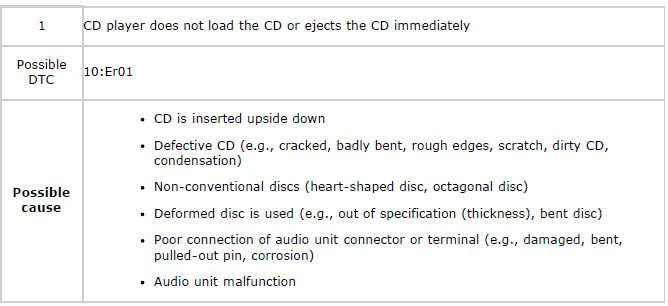

NO.1 CD PLAYER DOES NOT LOAD THE CD OR EJECTS THE CD IMMEDIATELY
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3115.png)

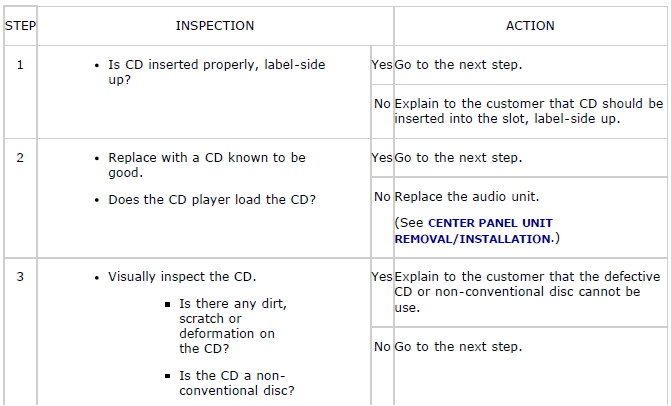

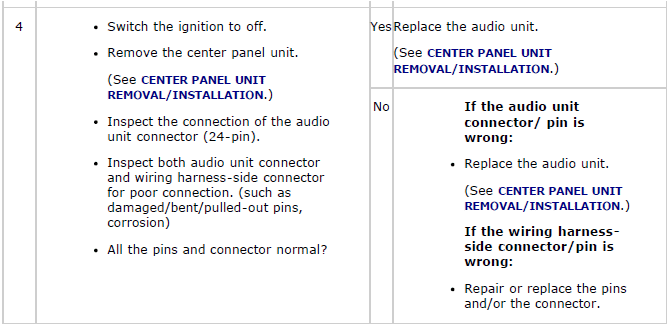

Diagnostic procedure
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3116.png)
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3117.png)

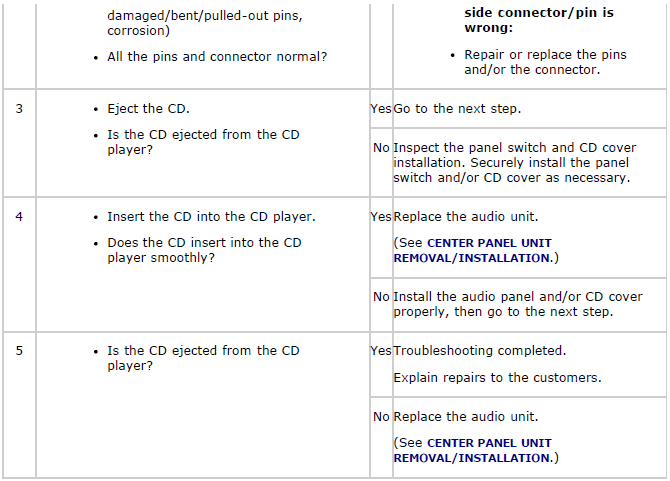

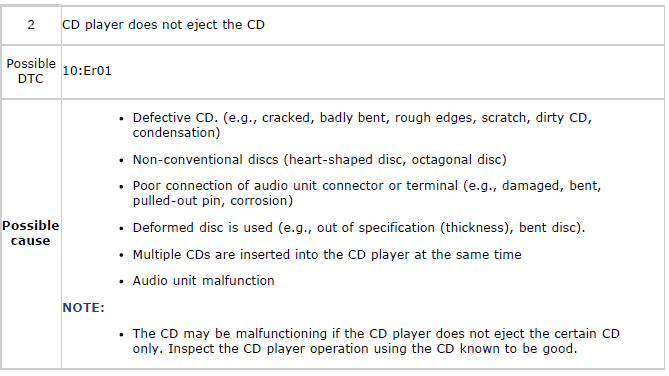

NO.2 CD PLAYER DOES NOT EJECT THE CD
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3118.png)

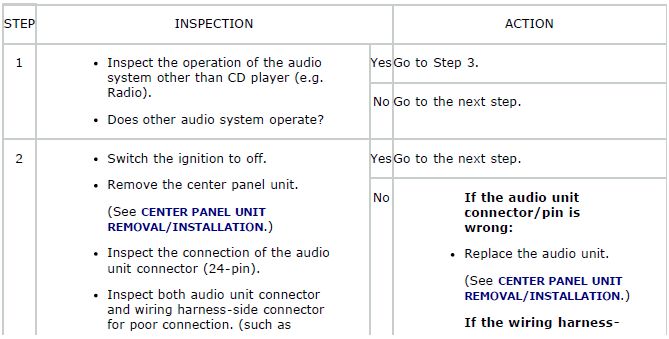

Diagnostic procedure
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3119.png)
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3120.png)

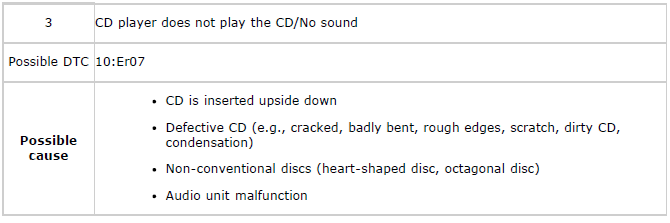

NO.3 CD PLAYER DOES NOT PLAY THE CD/NO SOUND
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3121.png)

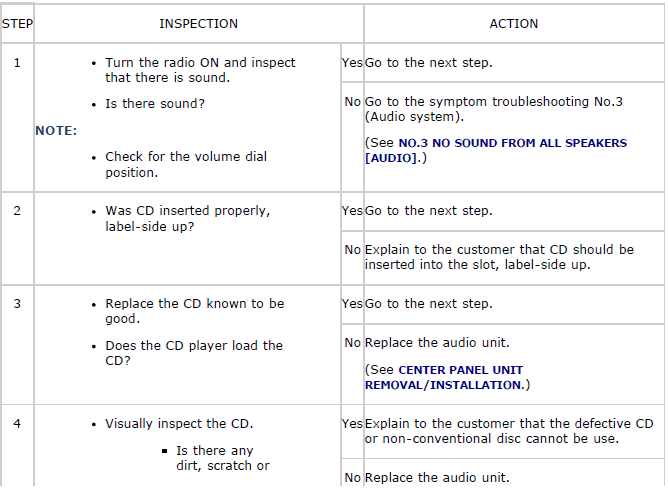

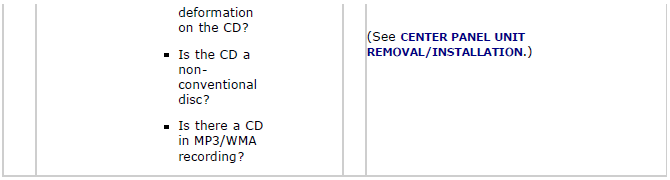

Diagnostic procedure
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3122.png)
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3123.png)

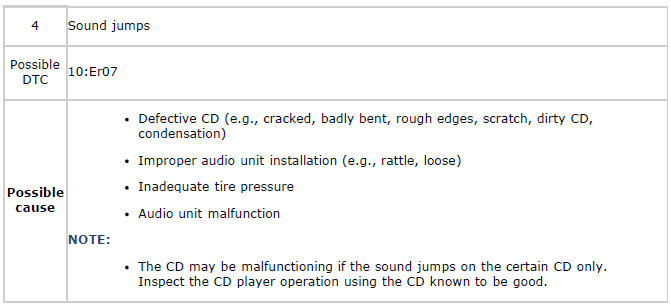

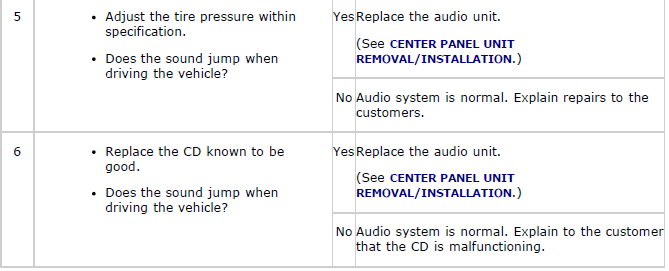

NO.4 SOUND JUMPS
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3124.png)

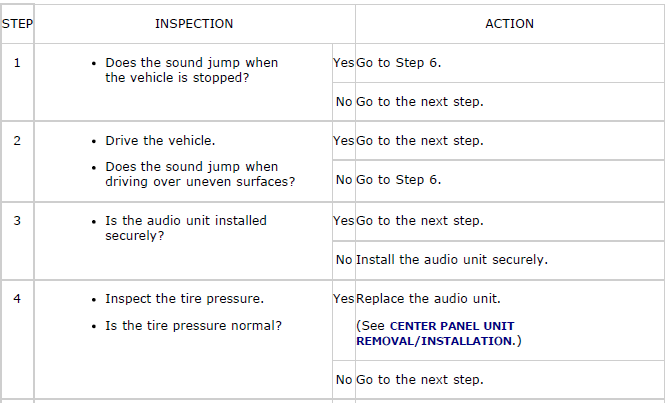

Diagnostic procedure
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3125.png)
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3126.png)

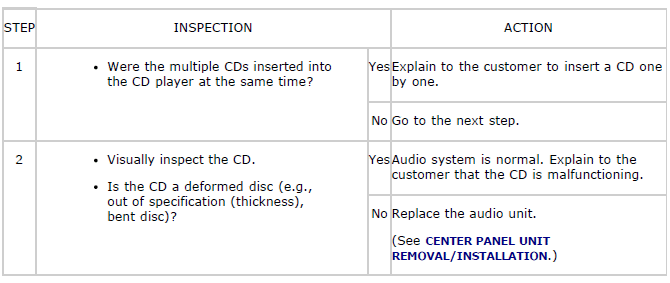

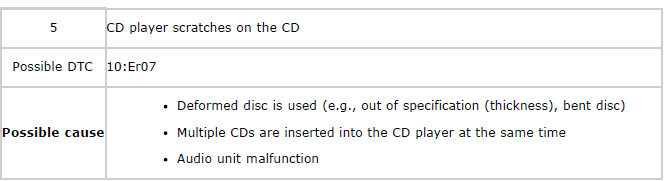

NO.5 CD PLAYER SCRATCHES ON THE CD
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3127.png)
Diagnostic procedure
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3128.png)

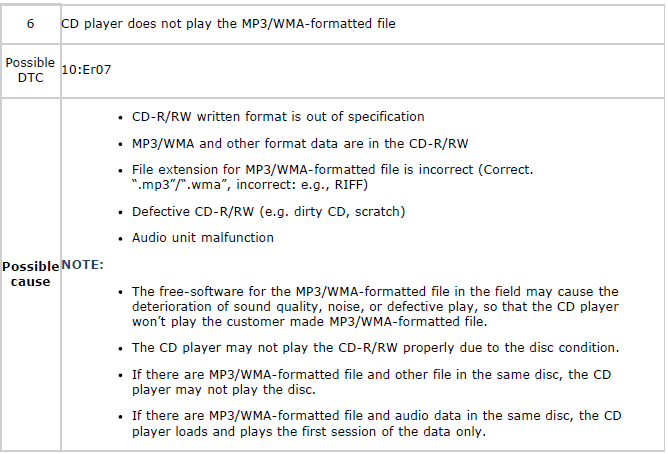

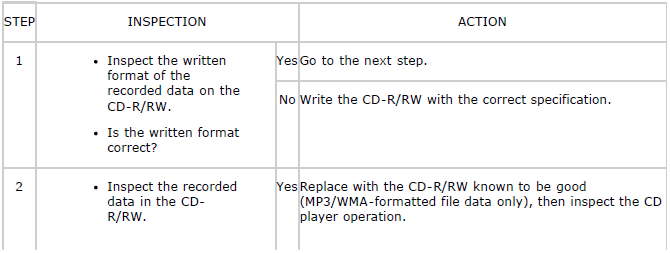

NO.6 CD PLAYER DOES NOT PLAY THE MP3/WMA-FORMATTED FILE
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3129.png)

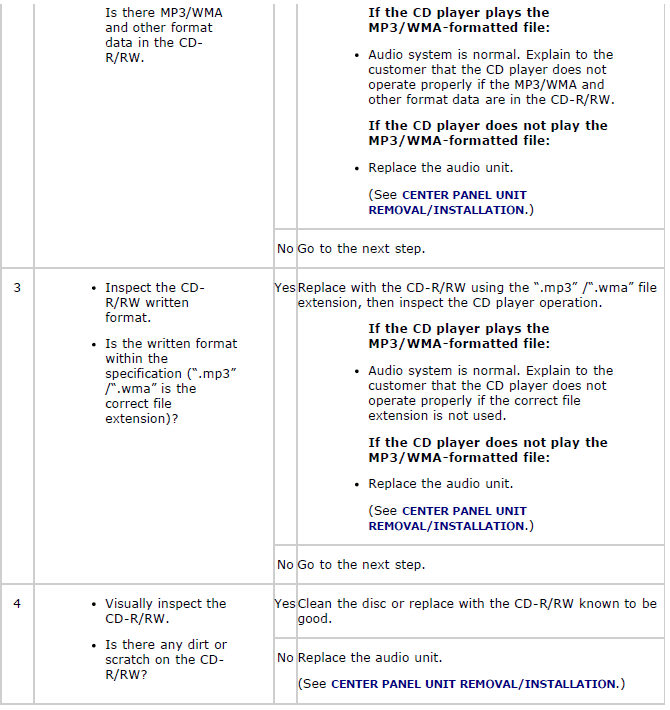

Diagnostic procedure
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3130.png)
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3131.png)

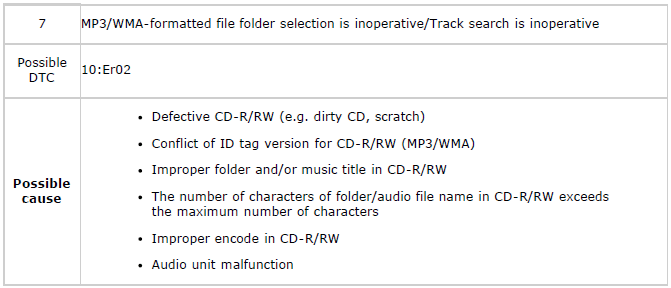

NO.7 MP3/WMA-FORMATTED FILE FOLDER SELECTION IS INOPERATIVE/TRACK
SEARCH IS
INOPERATIVE
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3132.png)
NOTE:
- ID3 is a tagging format for MP3-formatted file. ID3 allows metadata
(e.g., title, artist,
track number, etc). to be added to the MP3-formatted file.
- There are two versions in the ID tag.
- ID3v1: This is the most widespread standard tag formats and most
software is compatible with this version. There is a limitation on the
maximum number of characters for the text data.
- ID3v2: There are a variety of version in V2, but there is no
interchangeability among the versions.

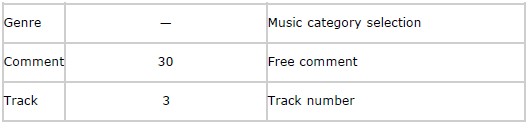

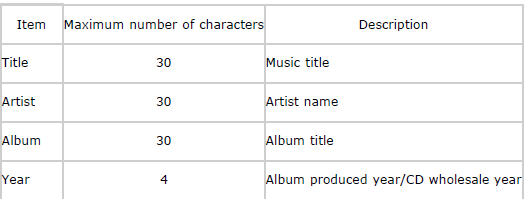

Limitation on the maximum number of characters for the text data (ID3v1)
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3133.png)
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3134.png)
- In a WMA file, the track name, artist name and album name are recorded
with data
called "WMA-Tag", and the information can be displayed.
- WMA files which do not comply with the specific standard may not be
played correctly
or its file and folder name may not be displayed correctly.
- The file extension may not be provided depending on the computer
operating system,
version, software, or setting. In this case, add the file extension ".wma"
to the end of
the file name, and then write the disc.

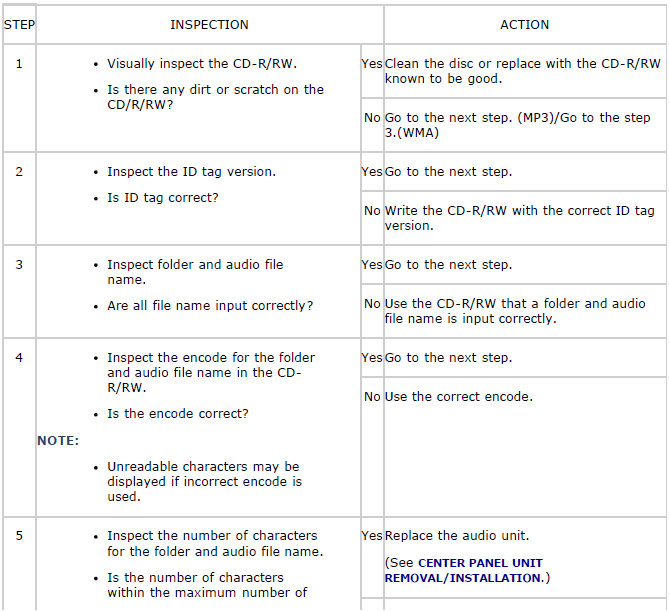

Diagnostic procedure
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3135.png)
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3136.png)

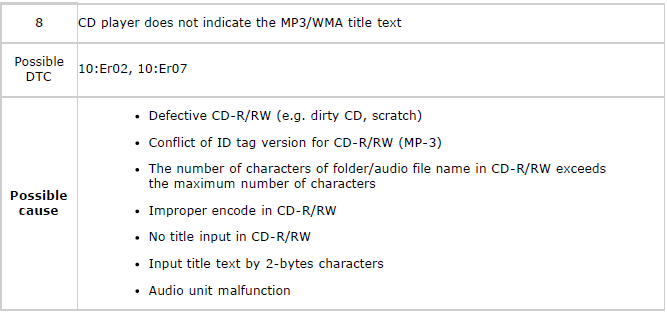

NO.8 CD PLAYER DOES NOT INDICATE THE MP3/WMA TITLE TEXT
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3137.png)

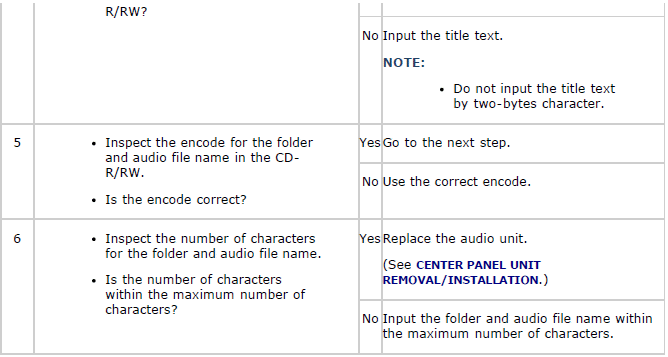

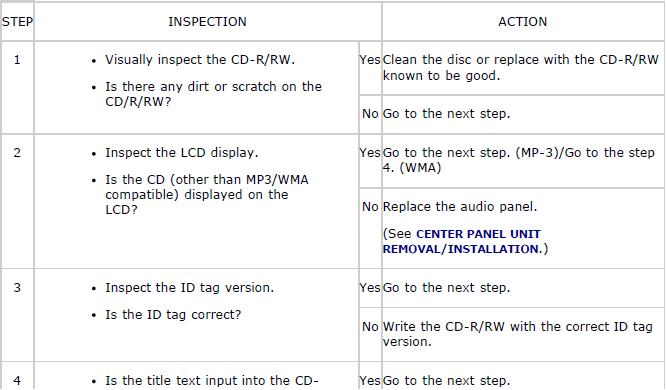

Diagnostic procedure
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3138.png)
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3139.png)

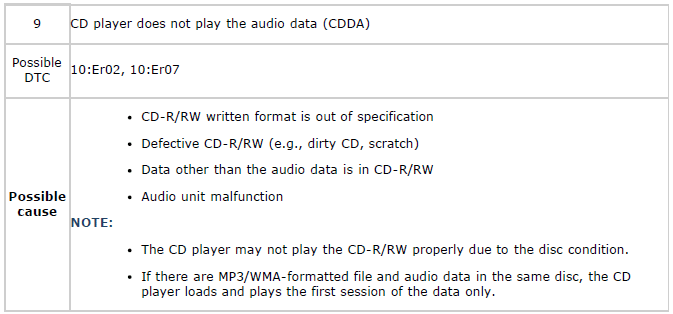

NO.9 CD PLAYER DOES NOT PLAY THE AUDIO DATA (CDDA)
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3140.png)

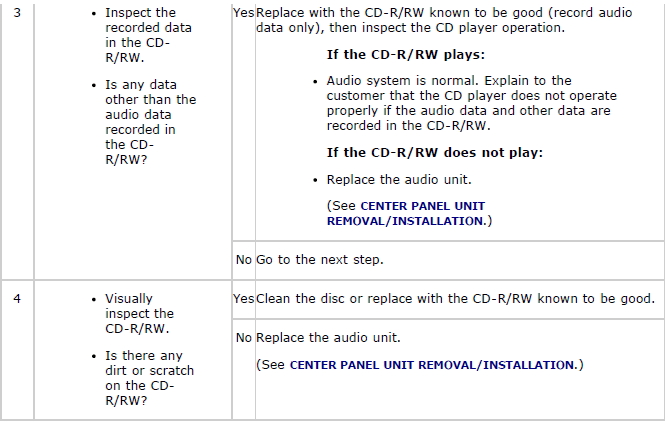

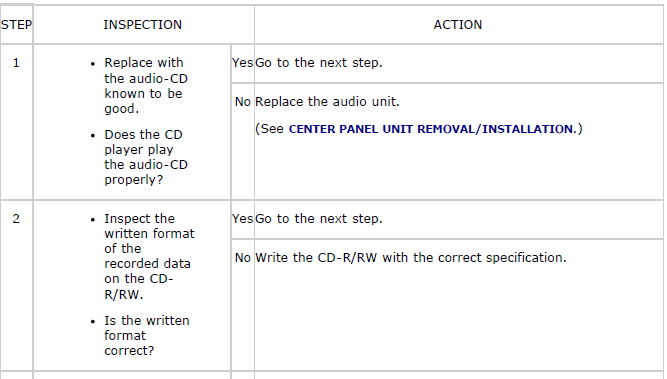

Diagnostic procedure
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3141.png)
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3142.png)

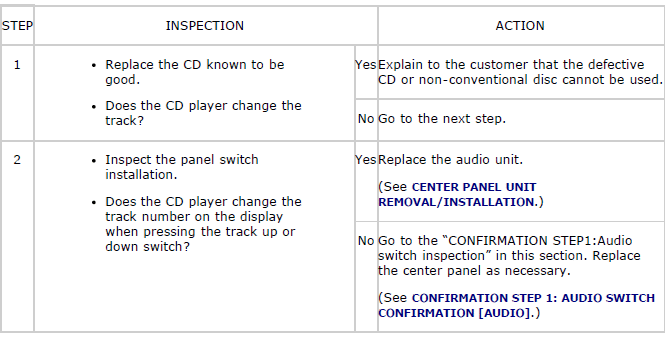

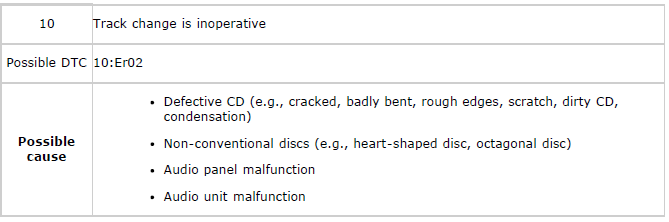

NO.10 TRACK CHANGE IS INOPERATIVE
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3143.png)
Diagnostic procedure
![Mazda 2. FOREWORD [CD PLAYER]](images/books/1059/mazda_2_foreword_cd_player__3144.png)
