Mazda 2: Front Door Latch Switch

FRONT DOOR LATCH SWITCH INSPECTION

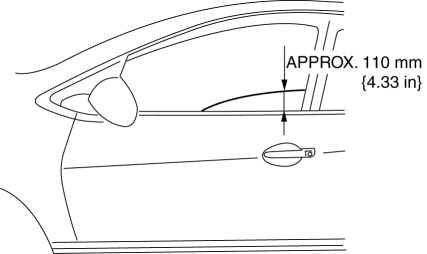

1. To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 110 mm {4.33 in}.

Mazda 2. FRONT DOOR LATCH SWITCH INSPECTION

2. Disconnect the negative battery cable.

3. Remove the following parts:

  1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION).
  2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION).
  3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION).
  4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION).
  5. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION).
  6. Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION).

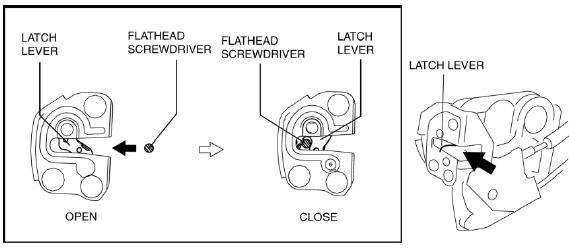

4. Press the latch in using a flathead screwdriver to inspect the latch lever condition.

Mazda 2. FRONT DOOR LATCH SWITCH INSPECTION

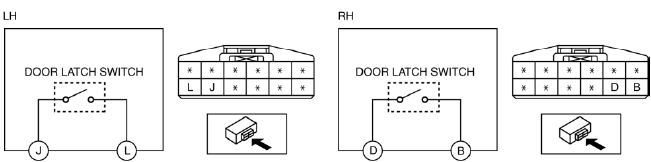

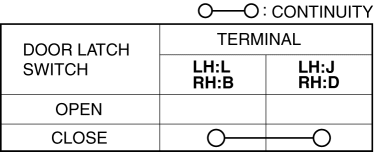

5. Verify that the continuity is as indicated in the table.

Mazda 2. FRONT DOOR LATCH SWITCH INSPECTION

Mazda 2. FRONT DOOR LATCH SWITCH INSPECTION

DOOR LOCK-LINK SWITCH INSPECTION

Font Door Lock-link Inspection

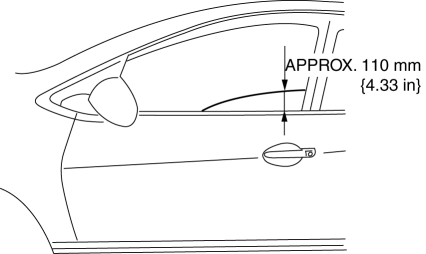

1. To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 110 mm {4.33 in}.

Mazda 2. DOOR LOCK-LINK SWITCH INSPECTION

2. Disconnect the negative battery cable.

3. Remove the following parts:

  1. Inner garnish (driver's door) (See INNER GARNISH REMOVAL/INSTALLATION).
  2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION).
  3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION).
  4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION).
  5. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION).
  6. Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION).

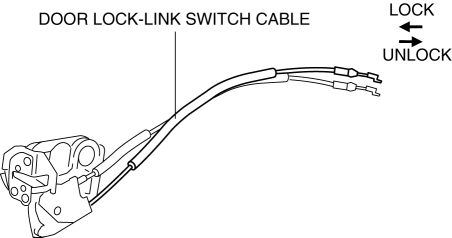

4. If the door lock condition is to be inspected, pull the door lock-link switch cable, or press it in.

NOTE:

Mazda 2. DOOR LOCK-LINK SWITCH INSPECTION

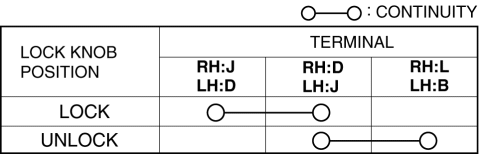

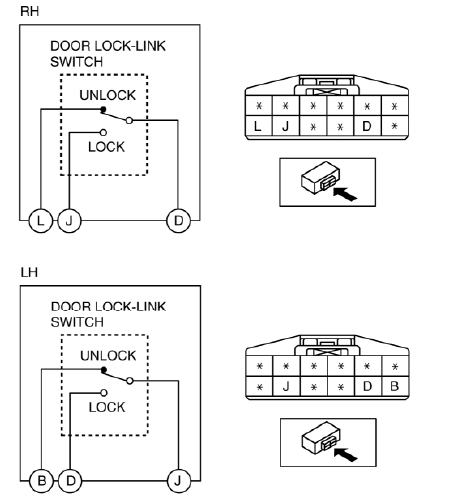

5. Verify that the continuity is as indicated in the table.

Mazda 2. DOOR LOCK-LINK SWITCH INSPECTION

Mazda 2. DOOR LOCK-LINK SWITCH INSPECTION

DOOR LOCK STRIKER REMOVAL/INSTALLATION

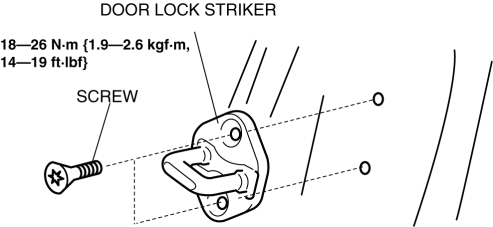

1. Remove the screws, then remove the door lock striker.

Mazda 2. DOOR LOCK STRIKER REMOVAL/INSTALLATION

2. Install in the reverse order of removal.

3. Adjust the door lock striker. (See DOOR ADJUSTMENT).
