Mazda 2: Identification Number Locations
Mazda 2 2007-2014 Service Manual / General Information / Identification Number Locations
Vehicle Identification Number (VIN)

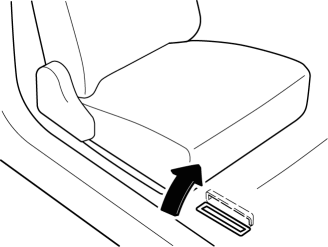

- The VIN marking position is located on the floor on the front passenger-side.
- If the VIN plate is adhered to the dashboard, it is located in the position shown in the figure.
Engine Identification Number
SAE Standards

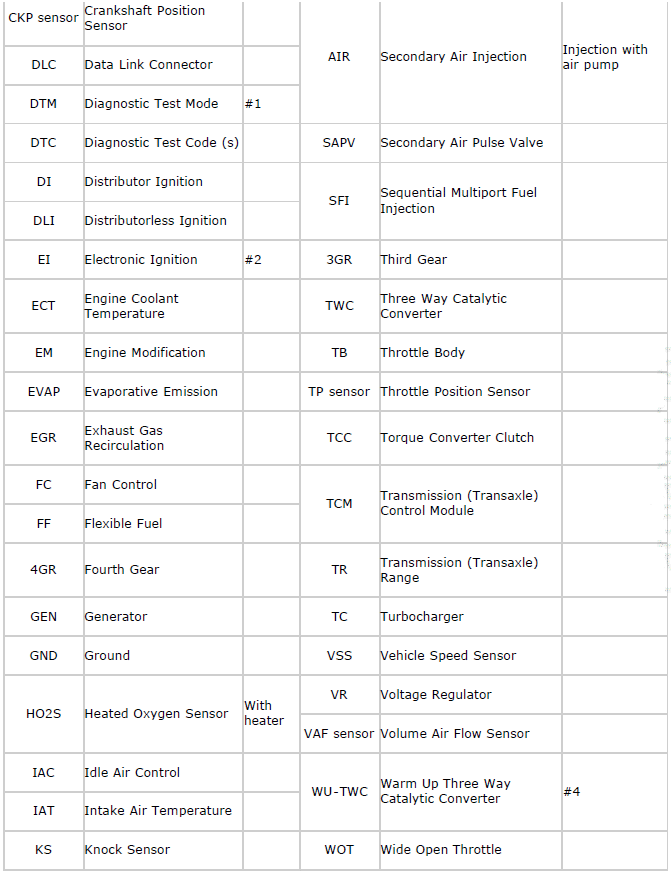

- In accordance with new regulations, SAE (Society of Automotive Engineers) standard names and abbreviations are now used in this manual. The table below lists the names and abbreviations that have been used in Mazda manuals up to now and their SAE equivalents.
- #1: Diagnostic trouble codes depend on the diagnostic test mode.
- #2: Controlled by the PCM
- #3: Device that controls engine and powertrain
- #4: Directly connected to exhaust manifold

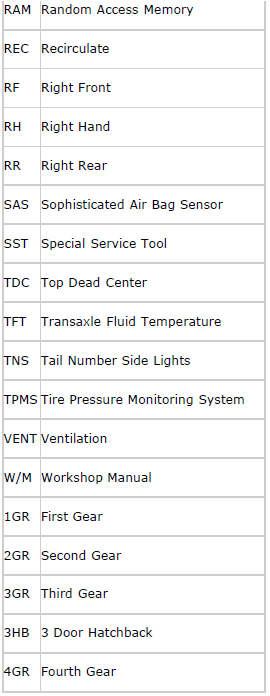

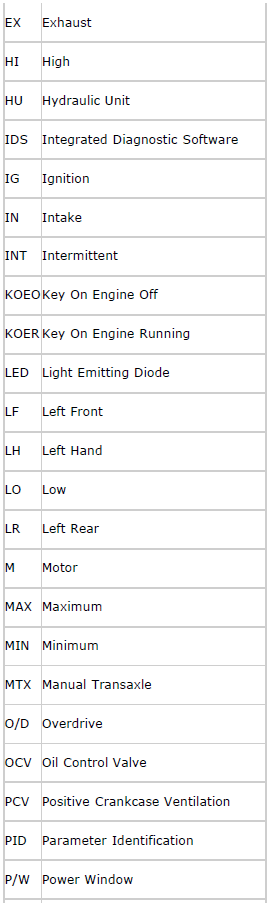

Abbreviations
