Mazda 2: Scheduled Maintenance
Mazda 2 2007-2014 Service Manual / General Information / Scheduled Maintenance
Scheduled Maintenance Table for U.S.A., CANADA and Puerto Rico

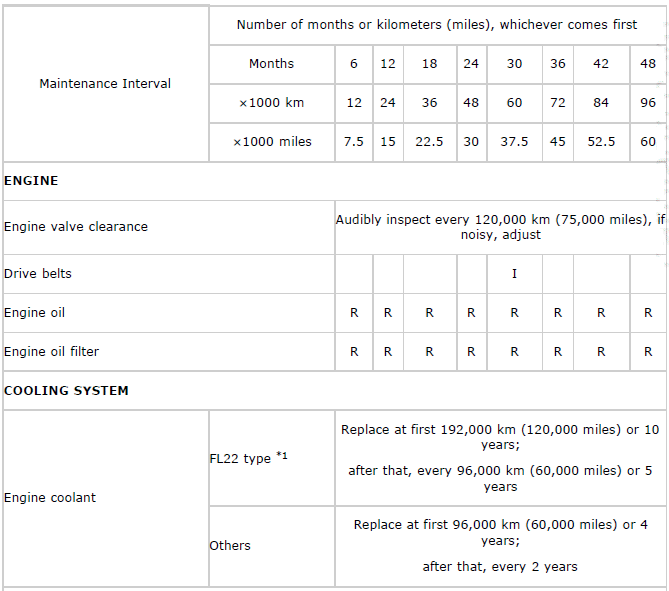

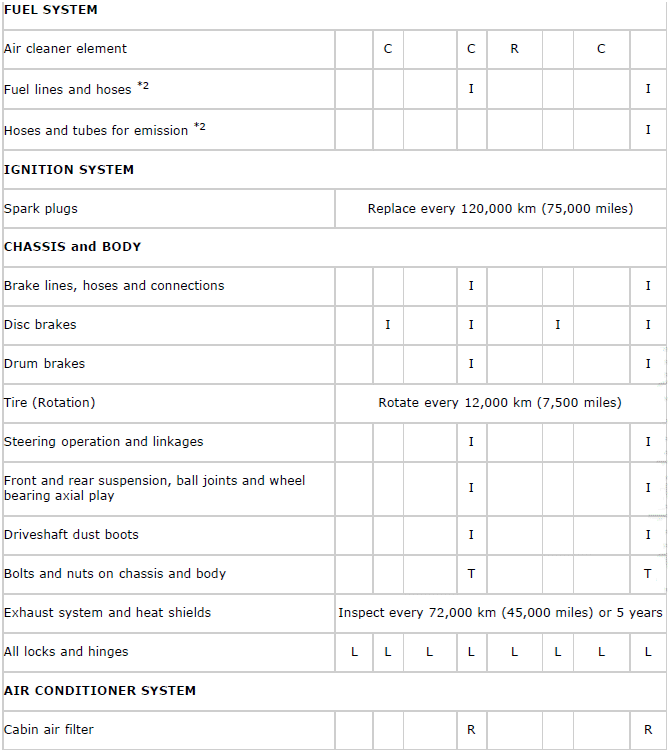

Schedule 1: (Normal Driving Conditions) for U.S.A.
The vehicle is mainly operated where none of the "unique driving conditions" apply.
Chart symbols
- I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
- R: Replace
- C: Clean
- L: Lubricate
- T: Tighten
Remarks
- After the prescribed period, continue to follow the described maintenance at the recommended intervals.
- Refer below for a description of items marked* in the maintenance chart.
- *1: Use FL22 type coolant in vehicles with the inscription "FL22" on the radiator cap itself or the surrounding area. Use FL22 when replacing the coolant.
- *2: According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or mileage/kilometer period to ensure long-term reliability.

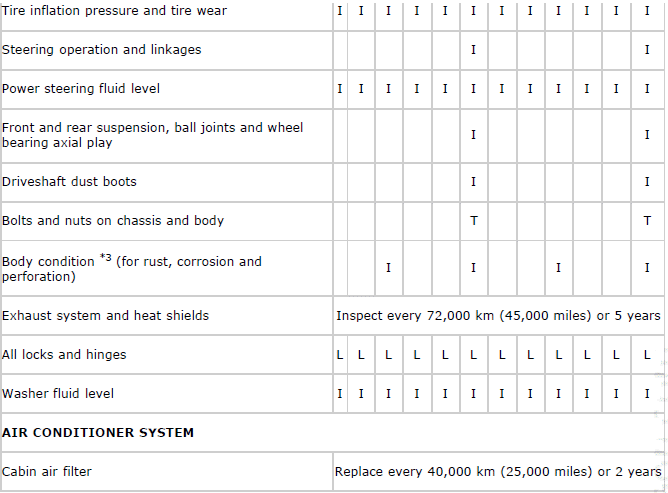

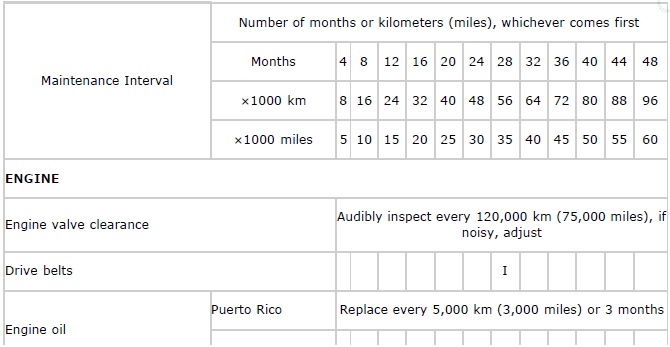

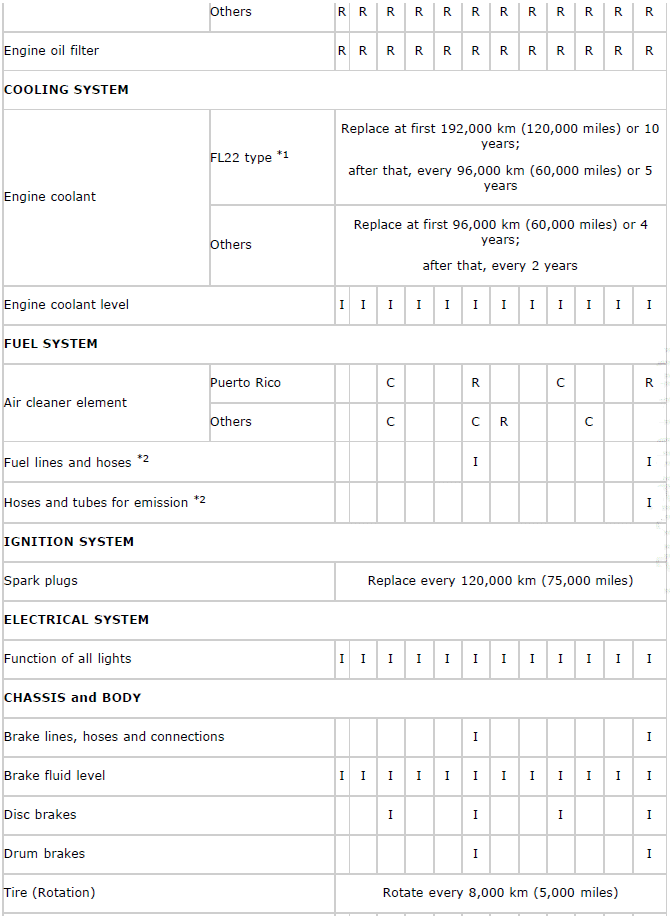

Schedule 2: CANADA, Puerto Rico, and (Unique Driving Conditions) for U.S.A.
- Repeated short-distance driving
- Driving in dusty conditions
- Driving with extended use of brakes
- Driving in areas where salt or other corrosive materials are used
- Driving on rough or muddy roads
- Extended periods of idling or low-speed operation
- Driving for long periods in cold temperatures or extremely humid climates
- Driving in extremely hot conditions
- Driving in mountainous conditions continually
Chart symbols
- I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
- R: Replace
- C: Clean
- L: Lubricate
- T: Tighten
Remarks
- After the prescribed period, continue to follow the described maintenance at the recommended intervals.
- Refer below for a description of items marked* in the maintenance chart.
- *1: Use FL22 type coolant in vehicles with the inscription "FL22" on the radiator cap itself or the surrounding area. Use FL22 when replacing the coolant.
- *2: According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or mileage/kilometer period to ensure long-term reliability.
- *3: Canada only.

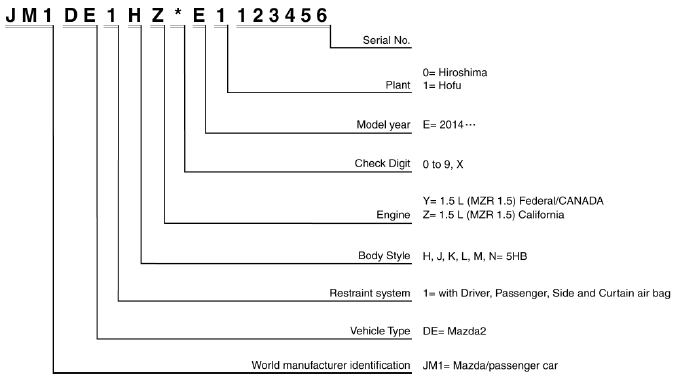

VEHICLE IDENTIFICATION NUMBER (VIN) CODE
VEHICLE IDENTIFICATION NUMBER (VIN)
JM1 DE1HY*E# 100001-
JM1 DE1HZ*E# 100001-
JM1 DE1JY*E# 100001-
JM1 DE1JZ*E# 100001-
JM1 DE1KY*E# 100001-
JM1 DE1KZ*E# 100001-
JM1 DE1LY*E# 100001-
JM1 DE1LZ*E# 100001-
JM1 DE1MY*E# 100001-
JM1 DE1MZ*E# 100001-
JM1 DE1NY*E# 100001-
JM1 DE1NZ*E# 100001-
