Mazda 2: Knock Sensor (KS)
KNOCK SENSOR (KS) REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION).
3. Disconnect the KS connector.

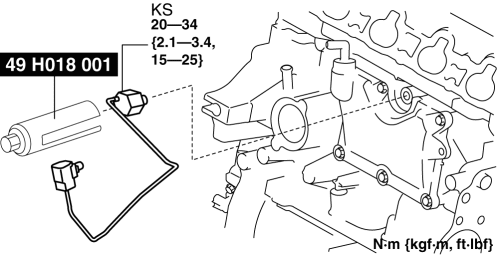

4. Remove the KS using the SST
5. Install in the reverse order of removal.
KNOCK SENSOR (KS) INSPECTION
1. Disconnect the KS connector.
2. Measure resistance between KS terminal and body ground.
- If not as specified, replace the KS. (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION).
KS resistance
- 532-588 kilohms [20
