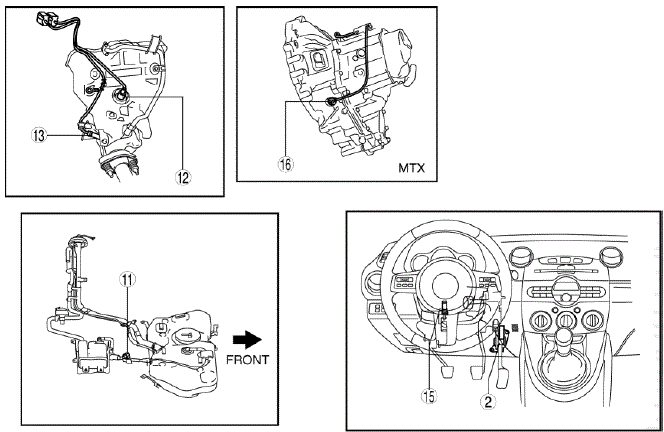

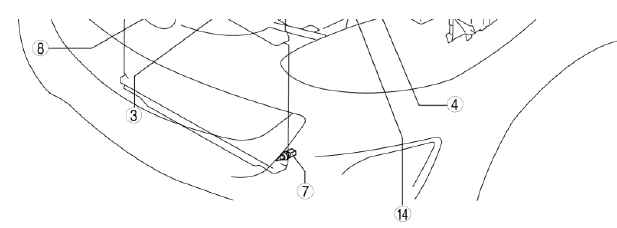

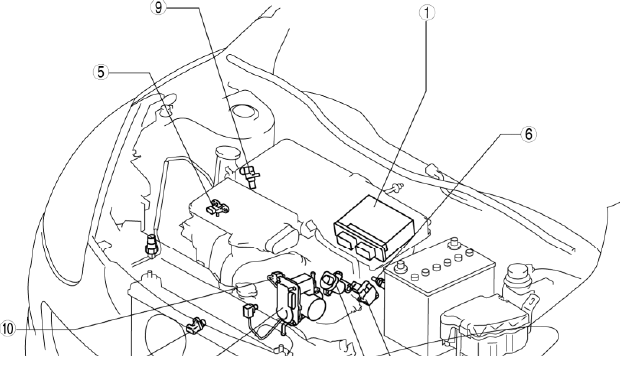

CONTROL SYSTEM LOCATION INDEX
- PCM (BARO sensor, PCM temperature sensor)
- (See PCM REMOVAL/INSTALLATION)
- (See PCM INSPECTION)
- (See PCM CONFIGURATION)
- (See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION)
- (See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION)
- (See PCM TEMPERATURE SENSOR REMOVAL/INSTALLATION)
- (See PCM TEMPERATURE SENSOR INSPECTION)
- APP sensor
- (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION)
- (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION)
- TP sensor
- (See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION)
- (See THROTTLE POSITION (TP) SENSOR INSPECTION)
- MAF/IAT sensor
- (See MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION)
- (See MASS AIR FLOW (MAF) SENSOR INSPECTION)
- (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION)
- MAP sensor
- (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION)
- (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION)
- ECT sensor No.1
- (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION)
- (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION)
- ECT sensor No.2
- (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION)
- (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION)
- CKP sensor
- (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION)
- (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION)
- CMP sensor
- (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION)
- (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION)
- KS
- (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION)
- (See KNOCK SENSOR (KS) INSPECTION)
- Fuel tank pressure sensor
- (See FUEL TANK PRESSURE SENSOR REMOVAL/INSTALLATION)
- (See FUEL TANK PRESSURE SENSOR INSPECTION)
- A/F sensor
- (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION)
- (See AIR FUEL RATIO (A/F) SENSOR INSPECTION)
- HO2S
- (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION)
- (See HEATED OXYGEN SENSOR (HO2S) INSPECTION)
- Variable tumble shutter valve position sensor
- (See VARIABLE TUMBLE SHUTTER VALVE POSITION SENSOR REMOVAL/INSTALLATION)
- (See VARIABLE TUMBLE SHUTTER VALVE POSITION SENSOR INSPECTION)
- CPP switch (MTX)
- (See CLUTCH PEDAL REMOVAL/INSTALLATION)
- (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION)
- Neutral switch (MTX)
- (See NEUTRAL SWITCH REMOVAL/INSTALLATION)
- (See NEUTRAL SWITCH INSPECTION)

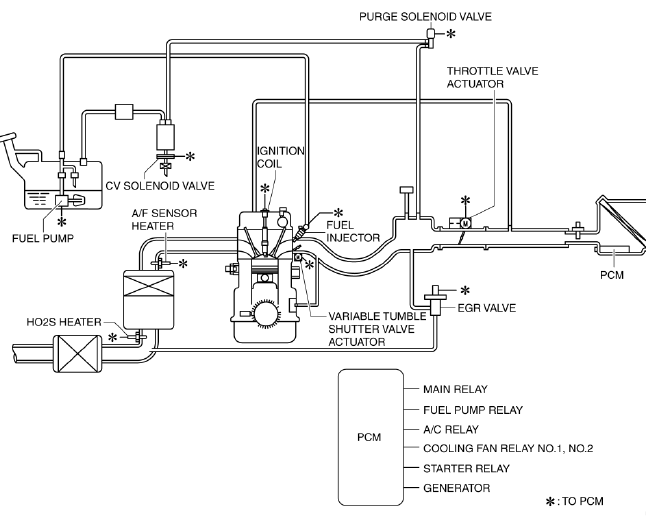

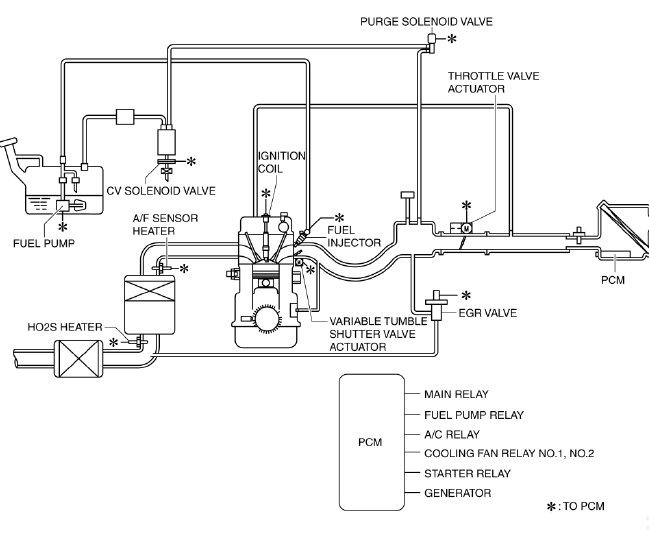

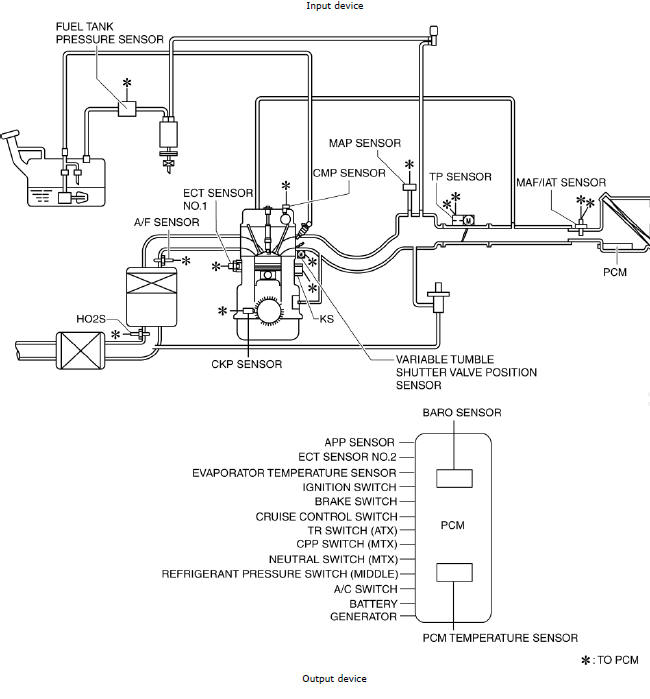

CONTROL SYSTEM DIAGRAM

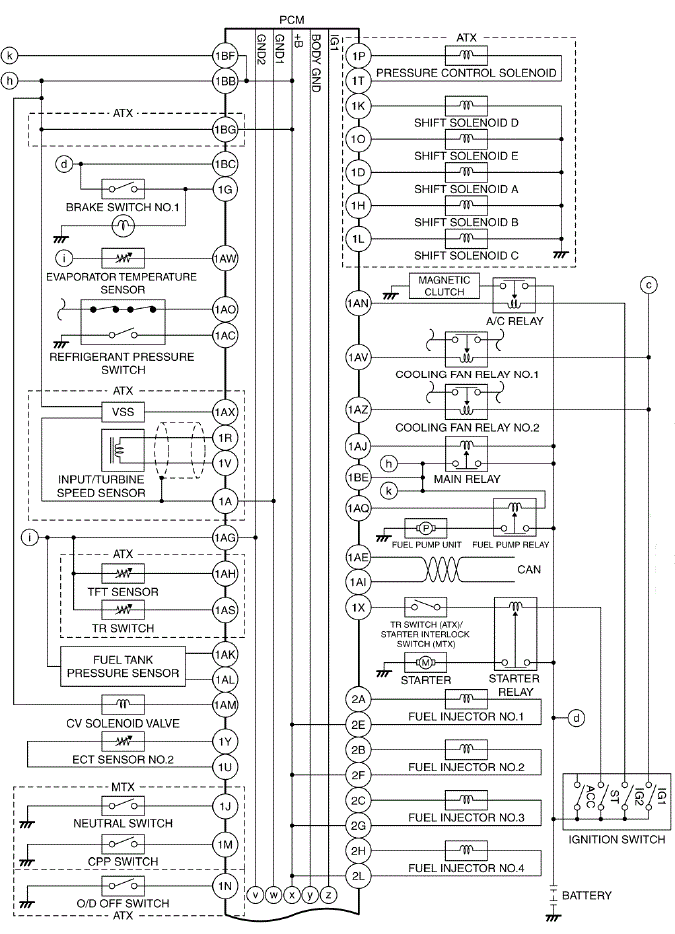

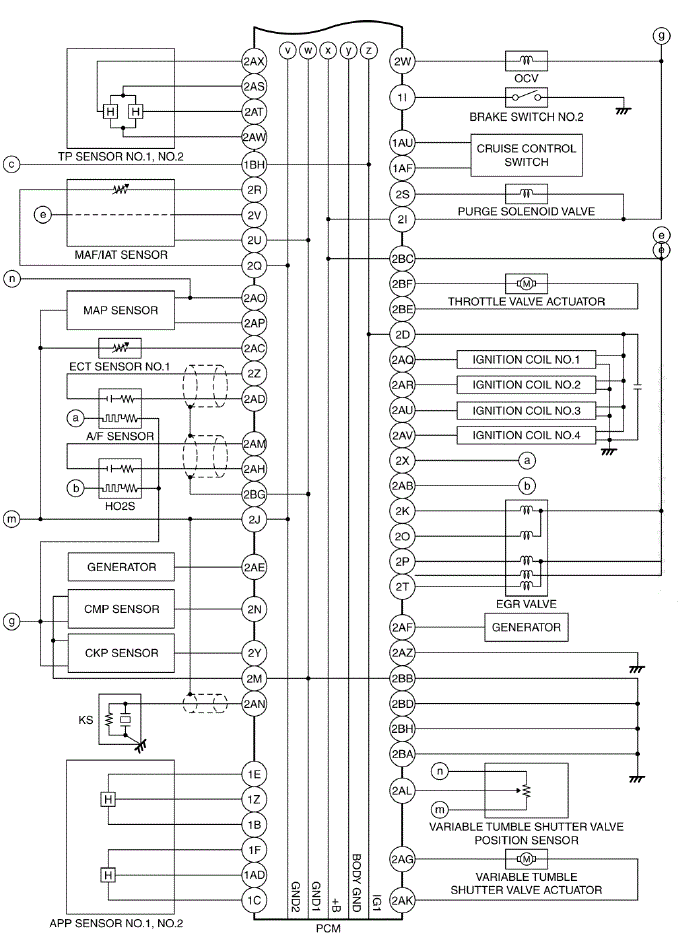

CONTROL SYSTEM WIRING DIAGRAM
- PCM
- Neutral Switch
- Engine Coolant Temperature (ECT) Sensor
- Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
- Manifold Absolute Pressure (MAP) Sensor
- Air Fuel Ratio (A/F) Sensor
- Heated Oxygen Sensor (HO2S)
- Crankshaft Position (CKP) Sensor
- Camshaft Position (CMP) Sensor
- Knock Sensor (KS)
- Fuel Tank Pressure Sensor
