FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

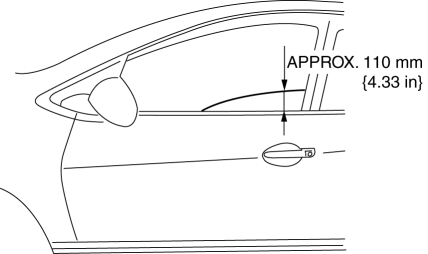

1. To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 110 mm {4.33 in}.

Mazda 2. FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

2. Disconnect the negative battery cable.

3. Remove the following parts:

  1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION).
  2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION).
  3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION).
  4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION).
  5. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION).

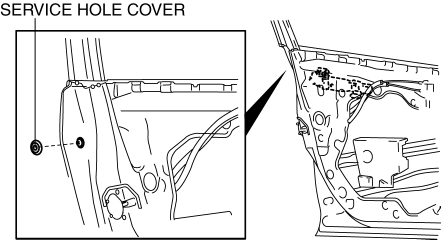

4. Remove the service hole cover.

Mazda 2. FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

5. Remove the tab, then remove the door lock-link bracket. (Driver's door) (See Rod Protector Installation Note).

Mazda 2. FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

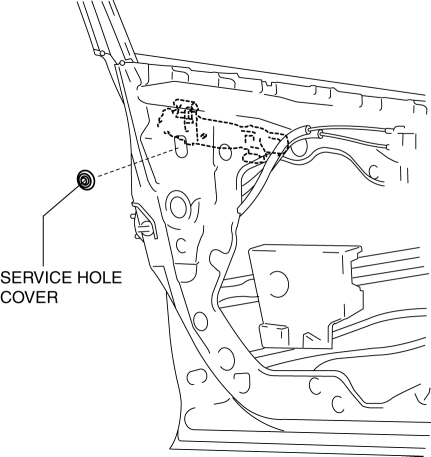

6. Remove the service hole cover.

Mazda 2. FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

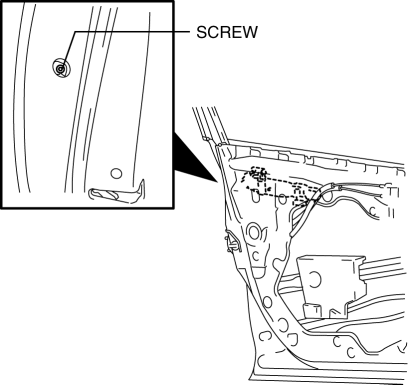

7. Remove the screw from the service hole.

NOTE:

Mazda 2. FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

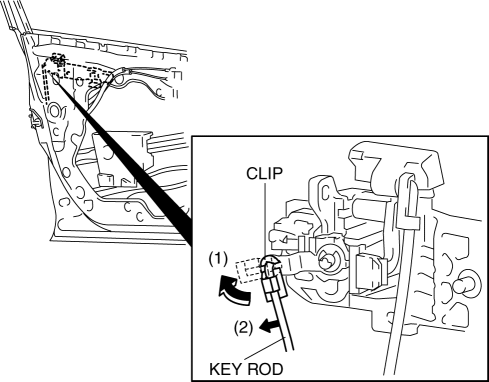

8. Lift the clip in the direction of the arrow (1), and pull out the key rod in the direction of the arrow (2).

Mazda 2. FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

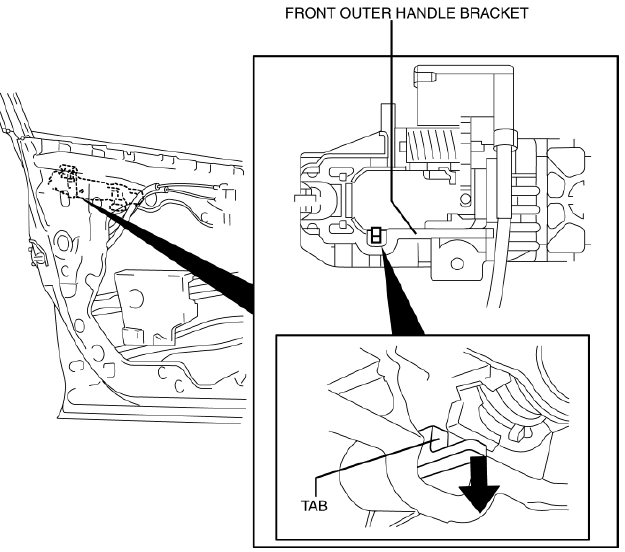

9. Press the tab on the front outer handle bracket in the direction of the arrow.

Mazda 2. FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

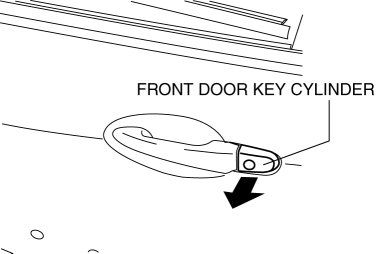

10. Maintaining the condition in procedure 9, remove the front key cylinder.

Mazda 2. FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

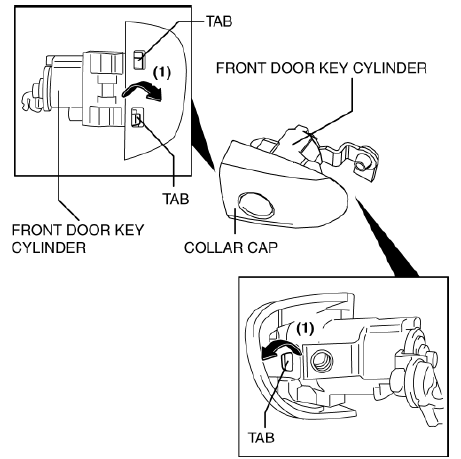

11. Using a tape-wrapped fastener remover, press up the collar cap in the direction of the arrow shown in the arrow, press aside the front door key cylinder tabs (1), and remove the collar cover from the front door key cylinder.

Mazda 2. FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

12. Install in the reverse order of removal.

Rod Protector Installation Note

CAUTION:

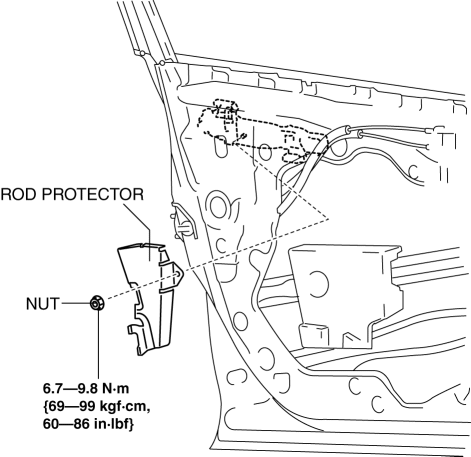

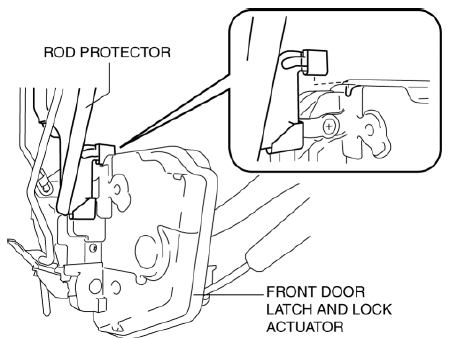

1. Insert the rod protector projection into the groove of the front door latch and lock actuator and secure it.

Mazda 2. FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

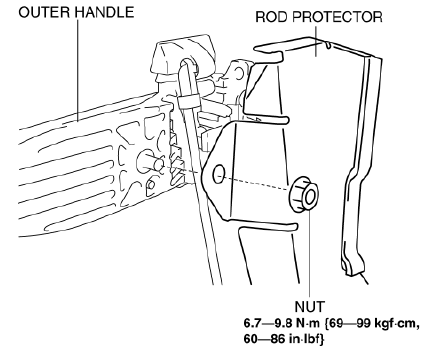

2. Insert the stud bolt of the outer handle into the rod protector hole and install the nut.

Mazda 2. FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

FRONT DOOR KEY CYLINDER SWITCH INSPECTION

1. To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 110 mm {4.33 in}.

Mazda 2. FRONT DOOR KEY CYLINDER SWITCH INSPECTION

2. Disconnect the negative battery cable.

3. Remove the following parts:

  1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION).
  2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION).
  3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION)
  4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION).
  5. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION).
  6. Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION).

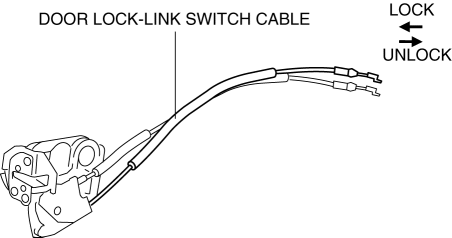

4. If the door lock condition is to be inspected, pull the door lock-link switch cable, or press it in.

NOTE:

Mazda 2. FRONT DOOR KEY CYLINDER SWITCH INSPECTION

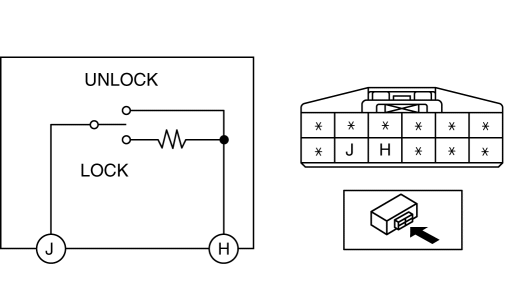

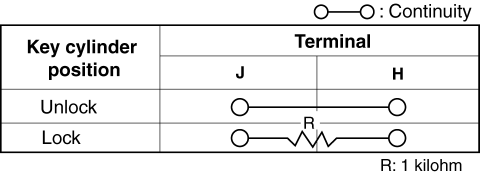

5. Verify that the continuity is as indicated in the table.

Mazda 2. FRONT DOOR KEY CYLINDER SWITCH INSPECTION

Mazda 2. FRONT DOOR KEY CYLINDER SWITCH INSPECTION
