PURGE SOLENOID VALVE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION).

CAUTION:

Removing the fresh-air duct from the air cleaner case may damage the fresh-air duct.

Always remove the fresh-air duct and the air cleaner case as a single unit.

2. Remove the fresh-air duct and the air cleaner as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION).

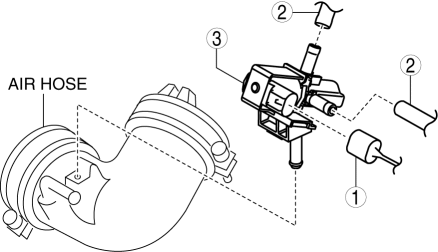

3. Remove in the order indicated in the table.

Mazda 2. PURGE SOLENOID

Purge solenoid valve connector
Evaporative hose
Purge solenoid valve

4. Install in the reverse order of removal.

PURGE SOLENOID VALVE INSPECTION

Airflow Inspection

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION).

2. Remove the purge solenoid valve. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION).

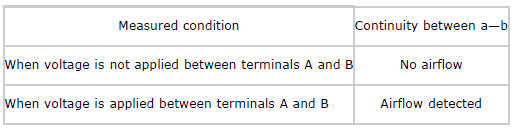

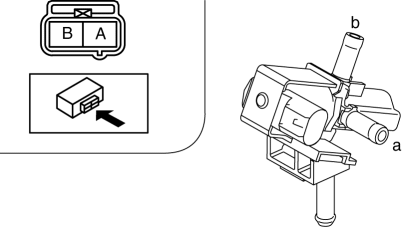

3. Verify that the airflow is as indicated in the table.

Mazda 2. PURGE SOLENOID

If not as specified in the table, inspect the purge solenoid valve. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION).
