EMISSION SYSTEM LOCATION INDEX

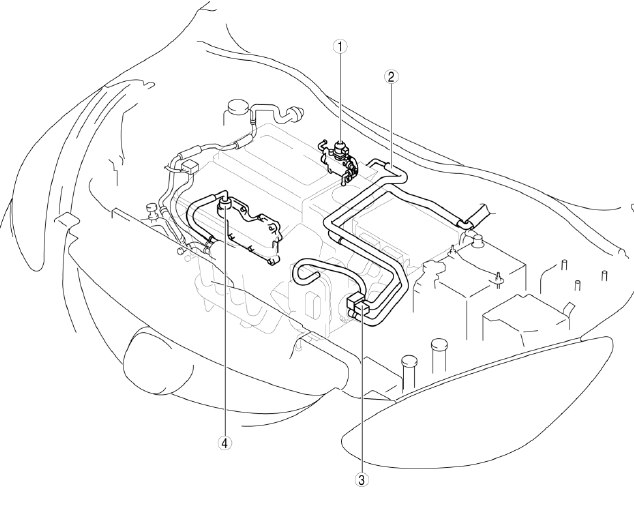

Engine Compartment Side
- EGR valve
- (See EGR VALVE REMOVAL/INSTALLATION)
- (See EGR VALVE INSPECTION)
- Ventilation hose
- Purge solenoid valve
- (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION)
- (See PURGE SOLENOID VALVE INSPECTION)
- Positive crankcase ventilation (PCV) valve
- (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION)
- (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION)

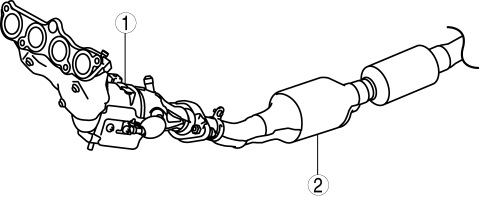

Exhaust System Side
- WU-TWC
- (See EXHAUST SYSTEM REMOVAL/INSTALLATION)
- (See WARM-UP THREE-WAY CATALYTIC CONVERTER (WU-TWC) INSPECTION)
- TWC
- (See EXHAUST SYSTEM REMOVAL/INSTALLATION)

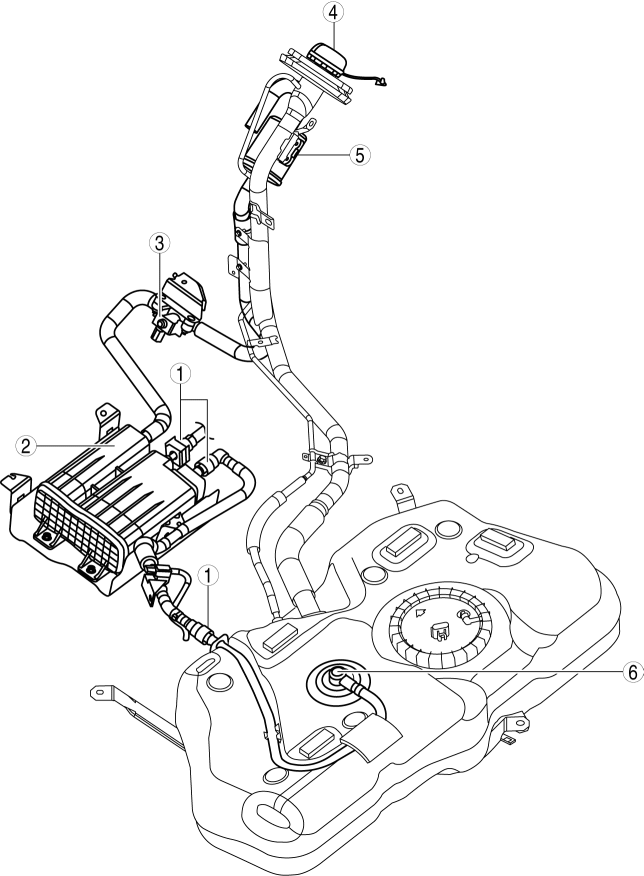

Fuel Tank Side
- Quick release connector
- (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION)
- Charcoal canister
- (See CHARCOAL CANISTER REMOVAL/INSTALLATION)
- (See CHARCOAL CANISTER INSPECTION)
- CV solenoid valve
- (See CANISTER VENT (CV) SOLENOID VALVE REMOVAL/INSTALLATION)
- (SeeCANISTER VENT (CV) SOLENOID VALVE INSPECTION)
- Fuel-filler cap
- (See FUEL TANK REMOVAL/INSTALLATION)
- (See FUEL-FILLER CAP INSPECTION)
- Air filter
- (See AIR FILTER REMOVAL/INSTALLATION)
- (See AIR FILTER INSPECTION)
- Rollover valve
- (See ROLLOVER VALVE REMOVAL/INSTALLATION)
- (See ROLLOVER VALVE INSPECTION)

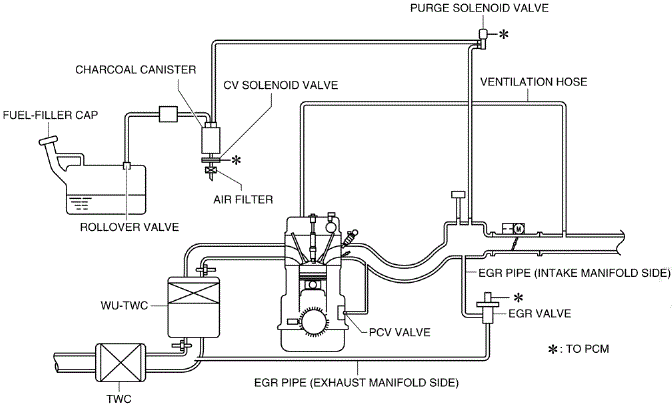

EMISSION SYSTEM DIAGRAM
- Fuel-filler Cap
- Charcoal Canister
- Purge Solenoid Valve
- EGR Valve
- Positive Crankcase Ventilation (PCV)
- Quick Release Connector (Emission System)
- Canister Vent (CV) Solenoid Valve
