Mazda 2: Rear Outer Handle

REAR OUTER HANDLE REMOVAL/INSTALLATION

1. Fully close the rear door glass.

2. Disconnect the negative battery cable.

3. Remove the sail inner garnish. (See SAIL INNER GARNISH REMOVAL/INSTALLATION).

4. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION).

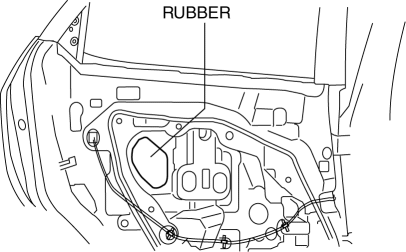

5. Remove the rubber.

Mazda 2. REAR OUTER HANDLE REMOVAL/INSTALLATION

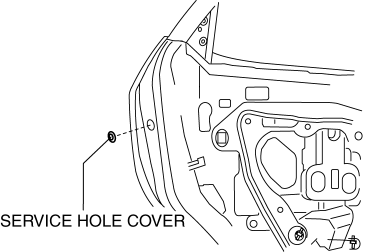

6. Remove the service hole cover.

Mazda 2. REAR OUTER HANDLE REMOVAL/INSTALLATION

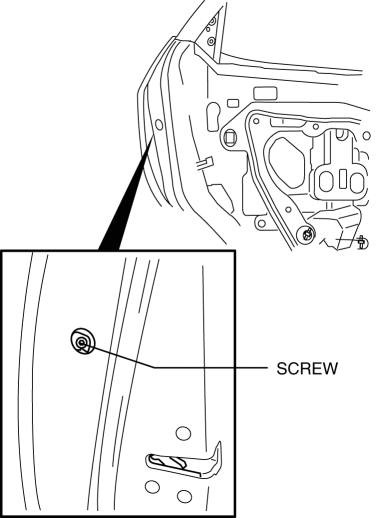

7. Remove the screw from the service hole.

Mazda 2. REAR OUTER HANDLE REMOVAL/INSTALLATION

NOTE:

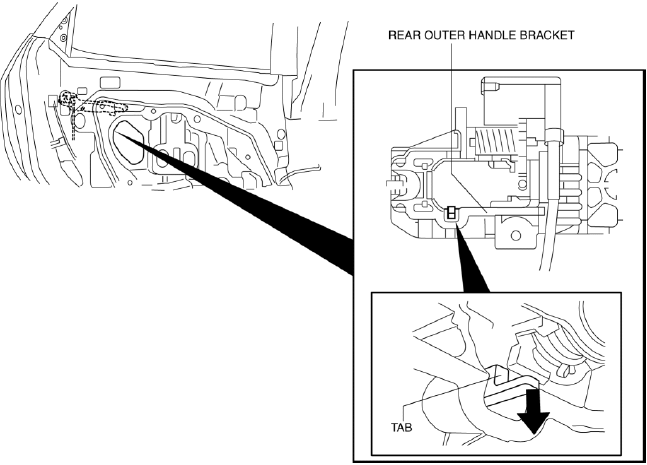

8. Press the tab on the rear outer handle bracket in the direction of the arrow.

Mazda 2. REAR OUTER HANDLE REMOVAL/INSTALLATION

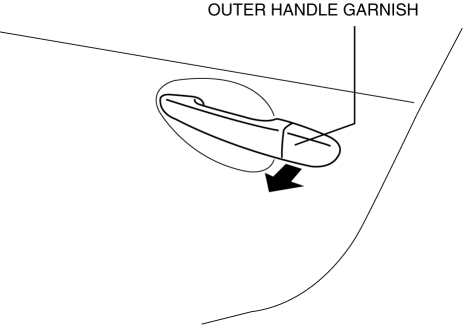

9. Maintaining the condition in procedure 8, remove the outer handle garnish.

Mazda 2. REAR OUTER HANDLE REMOVAL/INSTALLATION

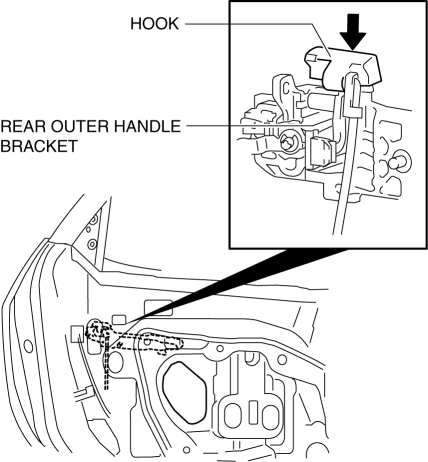

10. Press the hook on the rear outer handle bracket in the direction of the arrow.

Mazda 2. REAR OUTER HANDLE REMOVAL/INSTALLATION

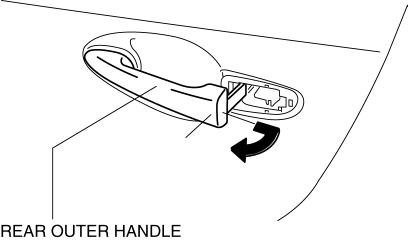

11. Maintaining the condition in procedure 10, remove the rear outer handle.

Mazda 2. REAR OUTER HANDLE REMOVAL/INSTALLATION

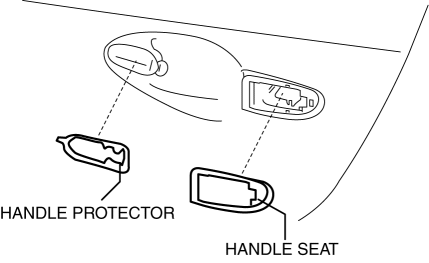

12. Remove the handle protector and handle seat.

Mazda 2. REAR OUTER HANDLE REMOVAL/INSTALLATION

13. Remove the double-sided adhesive tape from both surfaces of the handle protector and the body. (See Handle Protector Installation Note).

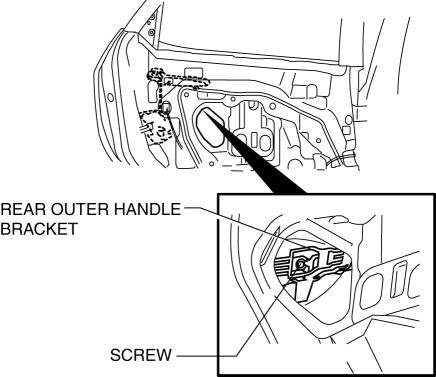

14. Loosen the screw.

Mazda 2. REAR OUTER HANDLE REMOVAL/INSTALLATION

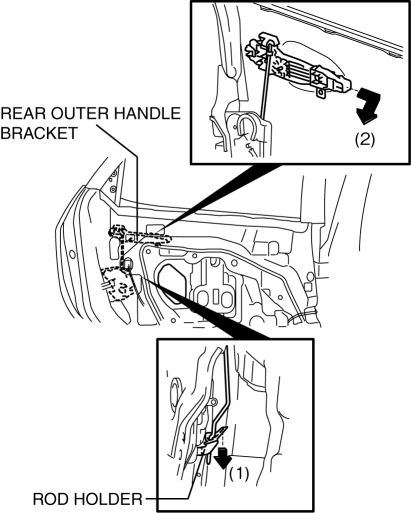

15. Press down the rod holder in the direction of arrow (1) and remove the rear outer handle bracket in the direction of arrow (2).(See Outer handle bracket Installation Note).

Mazda 2. REAR OUTER HANDLE REMOVAL/INSTALLATION

16. Install in the reverse order of removal.

Handle Protector Installation Note

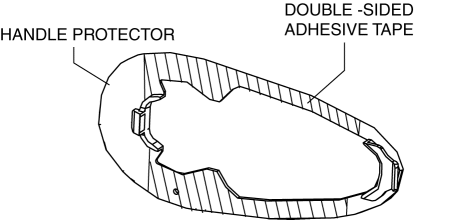

1. If the handle protector is reused, adhere double-adhesive tape to the both surfaces of the handle protector as shown in the figure.

Mazda 2. REAR OUTER HANDLE REMOVAL/INSTALLATION

Outer handle bracket Installation Note

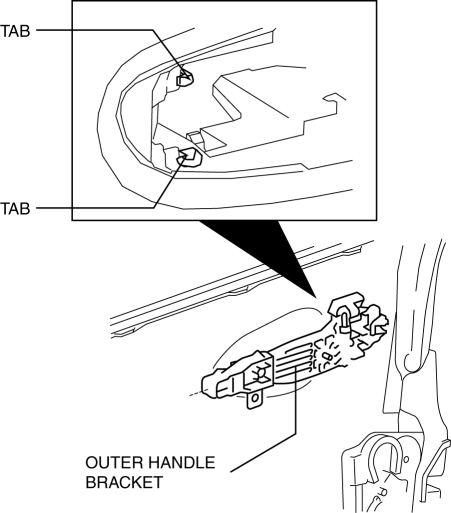

1. Hook the outer handle bracket tabs as shown in the figure.

Mazda 2. REAR OUTER HANDLE REMOVAL/INSTALLATION

INNER HANDLE REMOVAL/INSTALLATION

Front Inner Handle

1. Disconnect the negative battery cable.

2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION).

3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION).

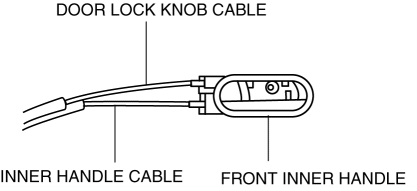

4. Disconnect each cable and remove the front inner handle.

Mazda 2. INNER HANDLE REMOVAL/INSTALLATION

5. Install in the reverse order of removal.

Rear inner handle

1. Disconnect the negative battery cable.

2. Remove the sail inner garnish. (See SAIL INNER GARNISH REMOVAL/INSTALLATION).

3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION).

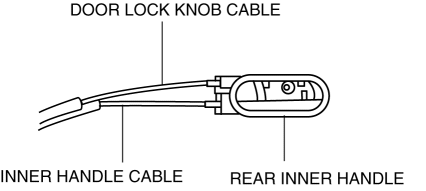

4. Disconnect each cable and remove the rear inner handle.

Mazda 2. INNER HANDLE REMOVAL/INSTALLATION

5. Install in the reverse order of removal.
